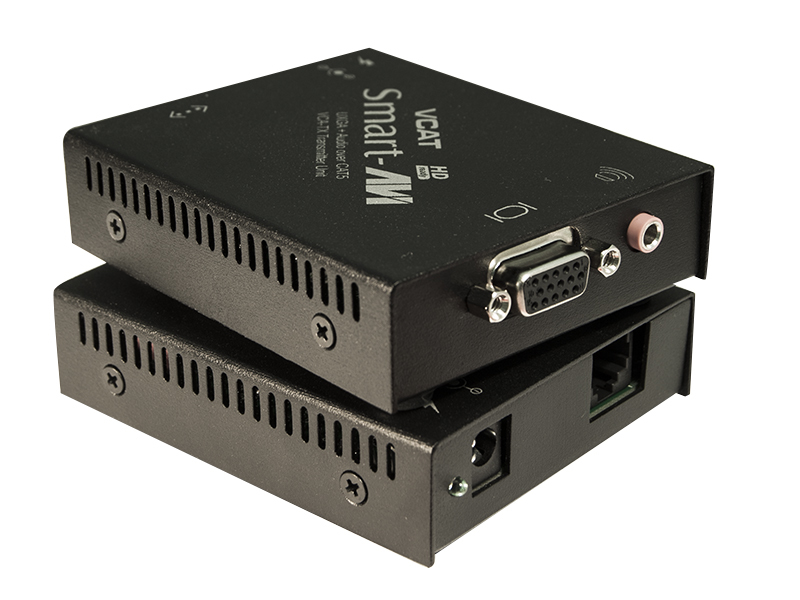

Smart-Avi UXGA/YUV/YC, Mono Audio CAT5 Transmitter

Availability:

30 in stock


399.00 د.إ

30 in stock

UXGA/YUV/YC, Mono Audio CAT5 Transmitter

Use a single CAT5 cable to extend high-resolution VGA video extender (supports WUXGA) and stereo audio 1,000 feet away, at the most affordable price on the market.
Transmitter Only.

Applications

  • Presentations – Enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
  • Data Broadcasting – Data such as news, stock prices, sports results, and flight information can be broadcasted in real time to various monitors.
  • Learning and Training – Can be used in educational presentations to multiple locations, in schools and in other training facilities.

Features

  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Output reaches up to 1,000 feet (300m).
  • Supports high resolution clear video up to 1920×1200.
  • HDTV compatible (720p, 1080i,1080p).
  • 300 MHz Bandwidth.
  • Sends high-resolution XVGA and Stereo Audio signals.
  • Compatible with VGA, XGA, Sun, MAC and SGI Signals.
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact metal case enclosure.
  • Optional power supply for remote unit.
  • Remote Units come with Buffered Outputs.

diagram

SmartAVI VCA-100 Transmitter Specifications

Power Ā
Requirements 5V DC @500mA
Connector 5 x 2.1mm DC jack
Video Ā
Bandwidth 400MHz
Analog signal level 1Volt
Impedance 75 ohms
Connector High density HD15
Format VGA/SVGA/XGA/UXGA/
RGBHV/RGsB
Sync TTL horizontal SyncRange: 15 to 130
KHzVertical Sync Range: 30 to 120 Hz
Audio Ā
Bandwidth 20KHz
Signal level 0dB
Impedance 10K ohms
Connector 3.5mm jack socket
System Cable Ā
Type Cat5 UTP EIA 568A
Connector RJ45
