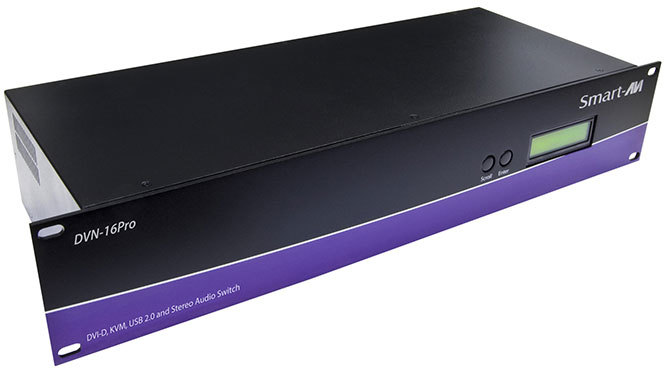

SmartAVI 16-Port DVI-D KVM Switch w/USB 2.0 & Audio
30 in stock
AED4,699.00
30 in stock
SmartAVI 16-Port DVI-D KVM Switch w/USB 2.0 & Audio
With SmartAVI?s DVN-16PRO KVM switch, a user can now manage up to 16 different computers from a single DVI-D screen and USB keyboard and mouse. In addition, DVN-16PRO enables immediate hotkey source switching through full USB keyboard and mouse emulation. The SmartAVI DVN-16PRO uses single link connectors providing high resolutions of up to 1920×1200 with zero pixel loss from TMDS signal correction.
The DVN-16PRO has a broad range of applications, but the main function of this KVM switch is to centralize the access of several computers into one comprehensive PC. Not only does it function as a KVM console, it also supports full USB keyboard and mouse emulation plus audio and USB 2.0 switching. This allows a user to control various USB 2.0 devices that would otherwise be unavailable with conventional KVM devices. For example, it allows a user to use sophisticated USB devices such as printers, cameras, and scanners without having to directly plug into the remote computer. DVN-16PRO is a perfect solution for the medical or industrial field for instance, where it may not be practical or safe to have one or more CPUs in the general vicinity.
SmartAVI DVN-16PRO Switch Connections
SmartAVI DVN-16PRO Features:
- Supports Windows, Mac, Linux, and Sun DVI-D
- Source switching through USB keyboard and mouse emulation hotkeys
- Supports High Resolution1920x1200 60Hz WUXGA
- Front panel tactile switch with LCD display for local control
- Universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices
- Balanced stereo audio output
- RS-232 commands for remote control
- Continuous DDC learning and correcting
- Automatically recognizes keyboard settings from previous use
- Constant USB keyboard and mouse driver support for selected and unselected ports
- DVN-16PROS incliudes [1 x DVNET-16Pro: 16×1 DVI-D, USB 2.0, Audio KVM Switch;
1 x PS5VDC4A: Power Supply; 1 x User Manual]
Applications Examples:
- Server Collocation
- Digital Signage
- Education
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Hotels/Resorts
SmartAVI DVN-16PRO DVI-D Switch Application Diagram
SmartAVI DVN-16PROS Specifications:
| Mechanical | |
| Height | 3.5 in. (88.9 mm.) |
| Width | 17 in. (432 mm.) |
| Depth | 6.75 in. (171.45 mm.) |
| Weight | 10 lbs. (5 kg.) |
| Environmental | |
| Operating Temperature | 32-131°F (0-55 °C) |
| Storage Temperature | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
| Power | External 100-240 VAC/5VDC4A @20W |
| Control | |
| Front Panel | Tactile Switch, Display: LCD 2 x 20 Character |
| RS232 | Via Control @ 115200 bps |
| Hotkeys | Via Keyboard |
| IR | RC5 |
| Video | |
| Format | DVI-D Single Link, DVI 1.0 |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | (16) DVI-D 29-pin |
| Output Interface | (1) DVI-D 29-pin |
| Resolution | Up to 1920 x 1200 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps per color |
| Audio | |
| Frequency Response | 20 Hz to 20 KHz |
| Impedance | 600 ohm |
| Nominal Level | 0-1.0V |
| Common Mode | Rejection at 60dB |
| Input Interface | (16) 3.5mm Stereo Audio |
| Output Interface | (1) 3.5mm Stereo Audio |
| USB | |
| Signaling | USB 2.0, 1.1 and 1.0 w/Internal Hub |
| Input Interface | (16) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KVM Devices (2) USB 2.0 Type A Transparent |
| Emulation | Keyboard and Mouse |
| Standards | |
| Approved Agency | UL, CE, ROHS Compliant |
The DVN-16PROS is also known as the DVN-16PRO-S.
| Weight | 5 kg |
|---|---|
| Dimensions | 6.75 × 17 × 33.5 cm |
