SmartAVI 2X1 KVM HDMI, USB, Audio switch Includes: HKM-02 & PS5VD2A

Name: SmartAVI 2X1 KVM HDMI, USB, Audio switch Includes: HKM-02 &amp; PS5VD2A
SKU: HKM-02S
Price: 999.00 AED
Availability: InStock

Availability:

30 in stock

999.00 د.إ

30 in stock

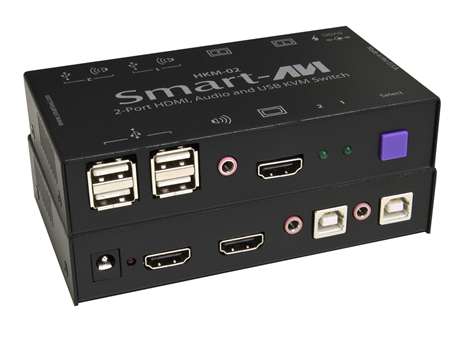

The SmartAVI HKM-02S is a 2X1 KVM HDMI, USB, Audio switch which includes: HKM-02 & PS5VD2A.

The HKM-02S is a cross-platform KVM capable of sharing a WUXGA Display, USB keyboard and mouse, and stereo audio between two computers.

SmartAVI HKM-02S Features:

SmartAVI HKM-02S Application Diagram

SmartAVI HKM-02S Specifications:

Mechanical
Width	5.0 in. (12.7 cm.)
Height	1.25 in. (3.2 cm.)
Depth	2.875 in. (7.3 cm.)
Weight	0.8 lbs. (0.36 kg.)
Video
Format	HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance	Single-link DVI-D 2.0
HDCP Compliance	1.0/2.0
Video Bandwidth	Single-link 340MHz [10.2Gbps]
Resolution	480i,480p,720i,720p,1080i,1080p
Input Interface	(2) HDMI[7.1ch audio & video]
Output Interface	(1) HDMI[7.1ch audio & video]
Connector	Type A[19-pin female]
Maximum Distance	25 ft.
Audio
Frequency Response	20 Hz to 20 KHz
Impedance	600 ohm
Nominal Level	0-1.0V
Common Mode	Rejection at 60dB
Input Interface	(4) 3.5mm Stereo Audio
Output Interface	(1) 3.5mm Stereo Audio
USB
Signaling	USB 2.0, 1.1, and 1.0
Input Interface	(2) USB Type B
Output Interface	(2) USB Type A
Control
Front Panel	Tact Switch
Power	External 100-240 VAC 5VDC2A @ 10W
Environmental
Operating Temperature	32-131F (0-55C)
Storage Temperature	-4-185F (20-85C)
Humidity	Up to 95%
Approvals	UL, CE, ROHS Compliant

SKU: HKM-02S Category: Network Switches & Routers Tags: Audio Switch, Dubai, uae

Weight	0.36 kg
