SmartAVI 4-Port HDMI/USB2.0/Audio KVM Switch. Includes: HKM-04 and PS5VD4A
SmartAVI 4-Port HDMI/USB2.0/Audio KVM Switch. Includes: HKM-04 and PS5VD4A

SmartAVI 4-Port HDMI/USB2.0/Audio KVM Switch. Includes: HKM-04 and PS5VD4A

Availability:

30 in stock
Add to Wishlist

1,099.00 د.إ

30 in stock

Add to Wishlist

SmartAVI 4-Port HDMI/USB2.0/Audio KVM Switch. Includes: HKM-04 and PS5VD4A

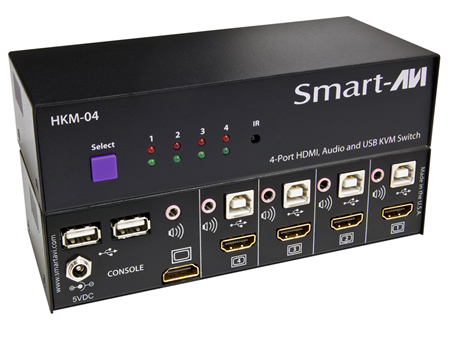

The SmartAVI HKM-04S is a 4-Port HDMI/USB2.0/Audio KVM Switch. It Includes the HKM-04 and PS5VD4A.

The HKM-04S is a cross-platform KVM capable of sharing a WUXGA Display, USB 2.0, and Stereo Audio between four computers.

SmartAVI HKM-04S Features:

  • Compatible with Mac, PC, Linux and Sun
  • Supports High Definition HDMI
  • Supports USB 2.0 devices including keyboard and mouse
  • Balanced stereo audio output
  • Front panel tactile switch with LED indicator
  • Supports Auto-scan mode for simple discovery


SmartAVI HKM-04S Application Diagram
SmartAVI HKM-04S Application Diagram

 SmartAVI HKM-04S Specifications:

Mechanical
Width 6.625 in. (16.8 cm.)
Height 1.875 n. (4.8 cm.)
Depth 2.875 in. (7.3 cm.)
Weight 1.0 lb. (0.45 kg.)
Video
Format HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance Single-link DVI-D 2.0
HDCP Compliance 1.0/2.0
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Input Interface (4) HDMI[7.1ch audio & video]
Output Interface (1) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
Audio
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0V
Common Mode Rejection at 60dB
Input Interface (4) 3.5mm Stereo Audio
Output Interface (1) 3.5mm Stereo Audio
USB
Signaling USB 2.0, 1.1, and 1.0
Input Interface (4) USB Type B
Output Interface (2) USB Type A
Control
Front Panel Tact Switch
Power External 100-240 VAC 5VDC4A @ 20W
Environmental
Operating Temperature 32-131F (0-55C)
Storage Temperature -4-185F (20-85C)
Humidity Up to 95%
Approvals UL, CE, ROHS Compliant



SKU: HKM-04S Category: Tags: , ,
Weight 0.45 kg
Dimensions 2.875 × 6.625 × 1.875 cm
