SmartAVI Catswitch, CAT5 Audio/Video 8X8 Matrix with RS232 Control

Availability:

30 in stock


10,299.00 د.إ

30 in stock

SmartAVI Catswitch, CAT5 Audio/Video 8X8 Matrix with RS232 Control

The SmartAVI Catswitch is a 8×8 Matrix Audio/Video switch which allows you to switch up to 16 remote devices to 16 remote displays located up to 1500ft away.Ā

Applications for the Catswitch include:

  • AccessĀ –Ā Enables easy access to multiple servers in various locations
  • Facilitates data sharing among departments
  • Security – Safeguards the servers by storing them in a secure and climate controlled environment while still providing access from the production floor.
  • Savings – Saves in equipment costs, physical space and utilities expense.
  • Productivity – Increases productivity by facilitating testing and performance evaluation of software and equipment, on multiple servers, from a single keyboard mouse and monitor station.
  • Multimedia – Presentations Can be used in multimedia presentations, where the information is transmitted from various computers.

SmartAVI Catswitch Features:

  • Supports high resolution video up to 1900×1200.
  • High quality audio switching.
  • Infrared, RS232 and TCP/IP control.
  • PC Windows software control.
  • Integral UTP distribution.
  • 1U rackmounted chassis.
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Maximum extension of 1,500 feet (500m) between the local and remote units.
  • HDTV compatible. (720p, 1080i,1080p)
  • 300 MHz bandwidth.
  • Compatible with VGA, XGA, Sun, MAC and SGI.
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for length.

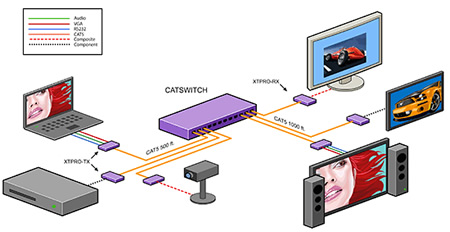

SmartAVI Catswitch Application Diagram
SmartAVI Catswitch Application Diagram

Package Includes:

  • Catswitch (CSW08X08)
  • SM-CSW
  • CCPWR06US

SmartAVI Catswitch Specifications:

Mechanical Ā
Height 5.23 in. (133 mm.)
Width 19 in. (483 mm.)
Depth 18 in. (450 mm.)
Weight 22 lbs. (10 kg.)
Rack Units 1U
Power Ā
Voltage 90-230V
Connector IEC
Fuse rating 1A A/S
Frequency 50/60 Hz
Control Ā
IR Remote Unit
RS232 Software
Video Ā
Bandwidth 250MHz
Input signal level 1Volt pk-pk into 75R
Output impedance 100 Ohms
Input Impedance 75R Ohms
Connector RJ45
Format VGA/SVGA/XGA/RGB
Audio Ā
Bandwidth 20KHz
Signal level 0dB
Output Impedance 100 Ohms
Input Impedance 10K Ohms
Input Connector VIA RJ45
Syncs Ā
Bandwidth Digital
Signal level 5V
Output Impedance 100 Ohms
Input Impedance 10K Ohms
Input Connector HD15 socket
Cat5 Signals Ā
Pair 1 Red video balanced 1 V pk-pk + audio left
Pair 2 Green video balanced 1 V pk-pk + audio right
Pair 3 Blue video balanced 1 V pk-pk + sync
Pair 4 Data RS232 and IR



SKU: CSW08X08S Categories: , Tags: , ,
