SmartAVI HDC-VX-RXS Receiver

Availability:

30 in stock


699.00 د.إ

30 in stock

SmartAVI HDC-VX-RXS Receiver

The HDC-VX-RXS range of products allow the extension of Video, Stereo Audio and Infra Red control signals using single CAT-5 UTP (category 5, unshielded twisted pair) cable. The HDC-VX is the first product for this application

*Video/Audio/IR CAT5 Point-to-Point Receiver. Includes: [ HDC-VX-RX, SM-EYE & (PS5VD1A)]

Features

  • Uses easy to install, inexpensive CAT5/5e/6/7/8
  • Output reaches up to 1000 feet (300m)
  • Supports PAL, NTSC and SECAM
  • Video 100 MHz Bandwidth
  • Video cable compensation (automatic)
  • Sends Composite Video Stereo Audio, IR and Power signals over CAT5
  • Compatible with line level stereo audio signals
  • High ground loop immunity
  • Built-in lightning, power surge and transient protection
  • Remote units come with buffered outputs
  • Compact enclosure
  • Optional power supply for remote unit
  • Fully transparent path for all protocols and data transfers

Applications

  • Hotels
  • Cable TV remote Control
  • Control Rooms
  • Remote On-Digital set top control
  • Sky box control extension
  • Dealer Rooms
  • Home Use
  • Data Broadcasting
  • Learning & Training Centers

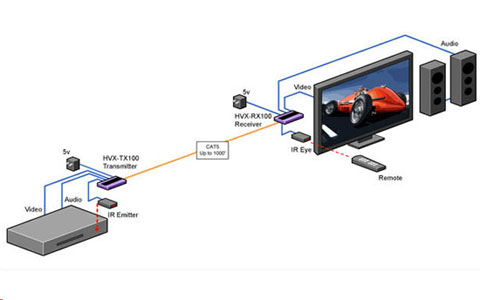

diagram

Mechanical Ā
Height .88 in. (2.23 cm)
Width 3.75 in. (9.52 cm.)
Depth Ā 2.75 in. (6.98 cm.)
Remote Control Range 25 ft
AV + IR over CAT 5 UTP 1000 ft
Power 5×2.1mm 5VDC1A
Connector 3.5 mm mini jack, female
Impedance 100 Ohm
Bandwidth 20 Khz, 0 dB



SKU: HDC-VX-RXS Categories: , Tags: , ,
Weight 1.5 kg
