SmartAVI HDR-8×8-Plus – video/audio switch – managed

Add to Wishlist

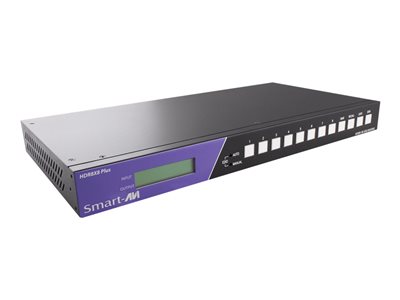

SmartAVI HDR-8×8-Plus – Video/audio switch – managed – desktop

AED6,799.00

Add to Wishlist

With the HDR-8×8-Plus, users can independently route eight video inputs to eight displays using the 4K (3840×2160 @30Hz) HDMI video technology. The HDR-8×8-Plus has eight outputs that offer the flexibility to distribute HD audio and video signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMIs to a single display. Controlling the matrix switch is simple with the front-panel buttons and the RS-232 port. Even use the TCP/ IP controls to manage the unit from a web browser. The perfect multi-switch solution for your home theater system, the HDR- 8×8-Plus is compatible with computers, live HD TV feeds, Blu-ray players, gaming consoles, video cameras and more.

SKU: HDR-8X8-PLUS-S Category: Tag:
Device Type Video/audio switch – managed
Enclosure Type Desktop
Subtype HDMI
Performance Bandwidth: 10.2 Gbps
Remote Management Protocol HTTP
Max Resolution 3840 x 2160 @ 30 Hz
Max Video Bandwidth 340 MHz
Expansion / Connectivity Interfaces: 8 x HDMI input ¦ 8 x HDMI output ¦ 1 x management (RS-232) DB-9
Power Device External power adapter
Voltage Required AC 120/230 V
Power Consumption Operational 20 Watt
Compliant Standards UL, RoHS
Dimensions & Weight Width: 17.2 in, Depth: 9 in, Height: 2 in, Weight: 5.6 lbs
Environmental Parameters Min Operating Temperature: 32 °F, Max Operating Temperature: 95 °F, Humidity Range Operating: 0 – 95%, Min Storage Temperature: -4 °F, Max Storage Temperature: 185 °F
