SmartAVI StretcherPro2 STR2PS Digital Signage Display Wall Controller

Availability:

30 in stock


AED9,999.00

30 in stock

Smartavi STR2PS EXPAND ANY DVI SOURCE TO 4 HD SCREENS

The SmartAVI StretcherPro2 (STR2PS) is a digital signage / display wall controller that utilizes HD Multilayout technology. StretcherPro2 can take any DVI source and stretch it among four displays, in any layout you choose. The StretcherPro2 is capable of stretching any HD display over four screens, while maintaining any resolution up to 1920 x 1080 on each screen. This powerful new version stretches the video image in multiple ways, including: Wall mode (2×2), Vertical (1×4), Horizontal (1 x 4), Dual Horizontal (2×1), Dual Vertical (1×2), or Clone the Image (1:1).

SmartAVI StretcherPro2 Features:

  • 2 x 2 VGA Display Wall Controller.
  • The UXST4 accepts analog or DVI VGA video input.
  • Outputs to 4 displays. Each Display shows 1/4 of the VGA image. (2 x 2 format)
  • The UXST4 supports both analog and DVI displays.
  • A stand alone unit that requires no software or other hardware to be installed on your machine.
  • Multiple units can be used for larger wall configurations
  • Adjustable Output Refresh Rate – The UXST4 provides the user with selectable output refresh rates supporting 50. 56, 60, 70, 72, 75 and 85Hz.

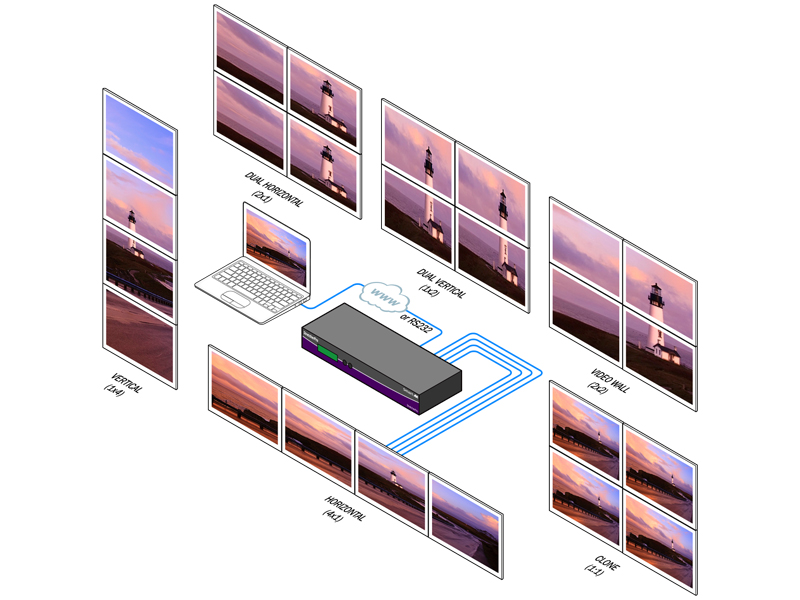

SmartAVI StretchPro STR2PS Diagram
SmartAVI StretchPro2 Video Wall Solution Application Diagram

SmartAVI StretcherPro2 Applications:

  • Video Walls
  • Digital Signage Displays
  • Information Displays
  • Command Centers
  • Control Rooms
  • Simulation Systems
  • Restaurants and Clubs
  • Houses of Worship
  • Convention Facilities
  • Theme Parks
  • Resorts
  • Casinos

The SmartAVI StretcherPro2 (STR2PS) maintains the original resolution quality of your image, from 800 x 600 up to 1920 x 1080 on all monitors, delivering a crisp, perfect image to your audience every time.

StretcherPro2 supports any video input resolution from 800 x 600 up to 1920 x 1080 (high definition). The beauty of the StretcherPro2 unit is that regardless of the scaling – from one to all four screens – it maintains the original resolution quality of your image on all monitors, delivering a crisp, perfect image to your audience every time. SmartAVI’s StretcherPro2 is the perfect entry-level display wall solution without the complexity of external computer control or setup.

SmartAVI’s SMTCP-2 can be used to control your video wall display over the internet from anywhere in the world. The SMTCP-2 is an RS-232 control module that allows most SmartAVI devices to be controlled remotely via HTTP or TELNET.

Customize your video wall layout on the fly with front panel, simple serial commands or optional ethernet controls.

SmartAVI StretchPro2 Specifications:

Mechanical Ā
Width 17 in.
Height 1.75 in.
Depth 10.25 in.
Weight 5 lbs.
Environment Ā
Operating Temperature 0-55 °C (32-131°F)
Humidity Up to 95%
Video Ā
Resolution Up to 1920 x 1200 @ 60 Hz
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface 4 x DVI-D 29-pin
Output Interface 1 x DVI-I 29-pin
(DVI-D & VGA support with adapter)
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Interface (RX) 2 x USB Type A
Learn mode Obtain the DDC specifications from a
PC, Mac, or the connected monitors
Control Ā
Front Panel Tact Switch w/ OSD
RS-232 RS-232 Commands
Front LCD 2×20
IR Ā
Frequency Response 30KHz
Input Interface (TX) 1 x 3.5mm
Output Interface (RX) 1 x 3.5mm
Power External 100-240 VAC/5VDC4A; 20W
Approvals UL, CE, RoHS
