SmartAVI StretchPro Video Wall Solution

The SmartAVI StretchPro UXST4S enables you to stretch your monitor among four DVI or VGA screens without the use of software.  This feature is particularly useful for display walls using LCD panels, allowing each panel of a 2 x 2 wall to be mounted in a different orientation. Many LCD panels have larger borders on two of the panel edges, by changing the orientation the minimum gap between displays can be achieved.

When using an analog VGA source, the VQS01 provides user adjustment for the following: – Horizontal Position – Vertical Position – Phase – Clock  These adjustments allow the output display to line up exactly with the incoming analog VGA source. Adjustments to any particular display mode may be saved, the UXST4 will then recall the settings every time the display mode is detected.  When using multiple UXST4 controllers for larger wall configurations, it may be desirable to gen-lock the UXST4 units enabling all displays to be synchronized. The UXST4 provides a sync output and sync input , to gen-lock, connect the output from one unit to the input of the next.

SmartAVI UXST4S Features:

• 2 x 2 VGA Display Wall Controller.
• The UXST4 accepts analog or DVI VGA video input.
• Outputs to 4 displays. Each Display shows 1/4 of the VGA image. (2 x 2 format)
• The UXST4 supports both analog and DVI displays.
• A stand alone unit that requires no software or other hardware to be installed on your machine.
• Multiple units can be used for larger wall configurations
• Adjustable Output Refresh Rate – The UXST4 provides the user with selectable output refresh rates supporting 50. 56, 60, 70, 72, 75 and 85Hz.

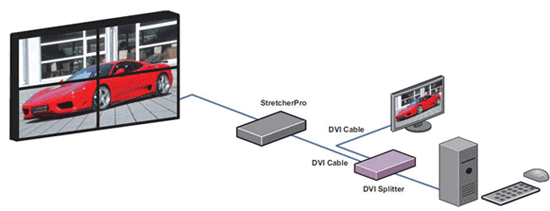

SmartAVI StretchPro Video Wall Solution Application Diagram

SmartAVI StretchPro Specifications:
