SmartAVI WUXGA+AUDIO+USB Extender Kit

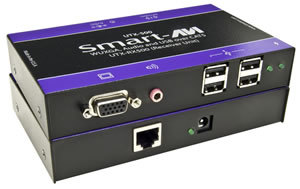

The SmartAVI UTX-500S extends WUXGA Video, Stereo Audio and USB 1.1 up to 300 feet over CAT5 Cable. It includes UTX-TX500(transmitter), UTXRX500(receiver), 6ft USB MM AB cable, 6ft XVGA MM Cable, and 2 PS5VDC2A.

SmartAVI UTX-500S Features:

  • Plug and play, no software required
  • Supports WUXGA video extension for resolutions up to 1920 x 1200
  • Fully compliant with USB 1.1 specifications
  • Supports 1.5 and 12 Mbps data rate
  • Built-in skew compensation
  • Uses a single CAT5 UTP cable
  • External power adapter for transmitter and receiver unit
  • Fully transparent to any type of USB 1.1 device

SmartAVI UTX-500S Application Diagram
SmartAVI UTX-500S Application Diagram

SmartAVI UTX-500S Specifications:

Mechanical
Width 5.5 in. (13.97 cm.)
Height 1.0 in. (2.54 cm.)
Depth 3.375 in. (8.57 cm.)
Weight 1 lb. (0.5 kg.)
Video
Format RGBHV, RGsB, YUV, Y/C, CVBS
Resolution Up to 1920×1200 VGA, SVGA, XGA
Input Interface (TX) (1) HD-15 Female
Output Interface (RX) (1) HD-15 Female
Audio
Signal Type Stereo unbalanced
Input Interface (TX) 3.5 mm Jack Socket (Female)
Output Interface (RX) 3.5 mm Jack Socket (Female)
USB
Signal Type USB 1.1
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
Environmental
Operating Temperature 35º F to 96º F
Storage Temperature -20º F to 140º F
Humidity Up to 95%
Power External 100-240 VAC/5VDC2A @ 10W

UPC 813280020084
EAN 0813280020084

SKU: UTX-500S Category: Tags: , ,
Weight 0.5 kg
Dimensions 3.3 × 5.5 × 1 cm
