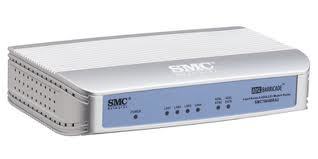

SMC7904BRA2

SMC ADSL2+ Barricade™ 4-port Router with Built-in ADSL2+ Modem



The SMC7904BRA2 combines an ADSL2/2+modem,router, 4-port 10/100 LAN switch & robust SPI firewallmaking it the complete solution for securely connecting& sharing your high speed ADSL connection. It gives youinstant always on internet connectivity with downloadspeeds up to 24Mbps – ideal for streaming multimediacontent to the home. The EZ Installation Wizard with onscreen help configures your ADSL connection in 4 easyto follow steps. Even configuration of advanced functionsis made easy with the intuitive web based management interface. The integrated 4-port 10/100LAN switch with full-duplex operation lets you directlyconnect four computers or expand your network by connecting additional switches. Quality-of-Service givespriority to real-time, delay sensitive applications likeVoice-over-IP and video-on-demand to improve the userexperience. The NAT firewall with Stateful PacketInspection (SPI), Intrusion Detection System (IDS) &Denial-of-Service (DoS) provides robust security fromhackers. VPN pass-through is also provided for securelyconnecting to your office or corporate network.

FEATURES:

Easy Setup :The intuitive web based management interface with EZInstallation Wizard & on-screen help makes setup a breeze – configure your ADSL connection in 4 easy to follow steps.

High speed internet Access:Instant always on internet connectivity. The built-in ADSL2/2+modem gives unrivaled asymmetric high-speed data transport atup to 24Mbps downstream.

Quality-of Service (QoS):Quality-of-Service prioritizes real-time, delay sensitive applications like Voice-over-IP and video-on-demand

Security:The NAT firewall with Stateful Packet Inspection (SPI), IntrusionDetection System (IDS) & Denial-of-Service (DoS) providesrobust security from hackers while VPN pass-through allowssecure connectivity to your office or corporate network. AccessControl Lists (ACL’s) with URL blocking allows you to controlaccess to internet services & filter inappropriate web sites.

TECHNICAL SPECIFICATIONS

PHYSICAL INTERFACES

• WAN: ADSL2/2+ RJ-11 port

• LAN: Four 10/100Mbps auto MDI/MDIX RJ-45 ports

• Power Input: DC12V 1A

• Reset button

ADSL FEATURES

• T1.413, G.DMT, G.LITE, ADSL2, ADSL2+

• Dying GASP support

• Annex A / L / M

• TR-067 interoperability tested

ATM FEATURES

• Class-of-Service: UBR, CBR, VBR, VBR-rt, VBR-nrt

• Up to 8 PVC’s

• RFC1483 Encapsulation (IP, Bridging & encapsulated routing)

• PPP over ATM (RFC2364)

• PPP over Ethernet

• Classical IP (RFC1577)

• VC-Mux & LLC encapsulation

• OAM F4/F5 support

MANAGEMENT FEATURES

• Web based management interface with EZ ™ Installation Wizard

• TELNET

• TFTP

• SNMP v1/2c

• Automatic time maintenance (SNTP)

• Event logging

• Diagnostic tools

• TR-069 WAN management protocol*

SECURITY FEATURES

• Password protected management interface

• NAT firewall

• Stateful Packet Inspection (SPI), Intrusion detection logging &

email notifications, Denial-of-Service (DoS) protection

• Access Control Lists, URL Blocking, Rule scheduling

• VPN pass-through (IPSec-ESP Tunnel mode, L2TP, PPTP)

LAN FEATURES

• IEEE 802.1d (self learning transparent bridging)

• DHCP Server

• DNS Proxy / Relay

• Static Routing, RIP v1/2

• Port based VLAN

FUNCTIONS

• UPnP, Port forwarding, Virtual DMZ host, IP Layer QoS with

Diffserv (RFC2474), DDNS

CERTIFICATIONS

• EN 55022

• EN 55024

• EN 60950-1 / IEC 60950-1

TEMPERATURE

• Temperature: IEC 68-2-14

• 0 to 40 degrees C (Standard Operating)

• -20 to 70 degrees C (Non-Operating)

HUMIDITY

• 10% to 95% (Non-condensing)

DIMENSIONS

• 143(L) x 94(D) x 32(H)mm

• 5.6(L) x 3.7(D) x 1.25(H)in

WEIGHT

• 0.18Kg

• 6.35oz

POWER INPUT

• 12V/1A

SYSTEM REQUIREMENTS

• ADSL Internet Service

• Ethernet adapter installed on each PC

• Windows 98SE/ME/2000/XP, Mac OS, Linux or Unix

• Internet Explorer 5.5 or above, Netscape 4.7 or above,

Mozilla 1.7 or above & Firefox 1.0 or above

PACKAGE CONTENTS

• SMC7904BRA2 ADSL2 Barricade ™

• Power Adapter

• Ethernet cable (RJ-45)

• Phone cable (RJ-11)

• ADSL Splitter**

• Quick Install Guide

• Warranty registration card

• Installation CD containing manual

*Optional software module available for Service Providers

** Most countries
