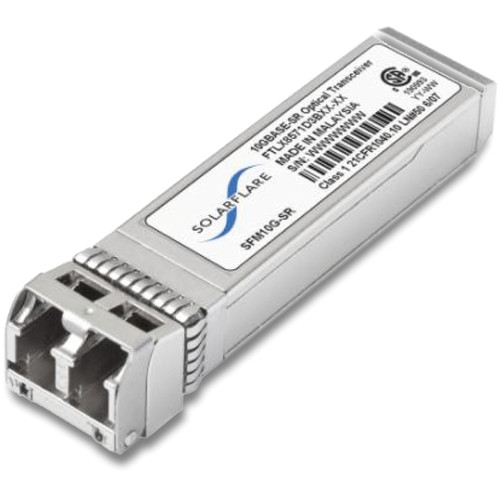

Solarflare SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb/s SFP+ Transceiver


Key Features
  • Hot-Pluggable SFP+ Transceiver Module
  • Duplex LC Connector
  • 1 x 10GBASE-SR Interface Port
  • 10 Gb/s Data Transfer Rate
  • Up to 984.2′ Reach
  • 850nm Optical Wavelength
  • RoHS Compliant

AED899.00

TheĀ SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb/s SFP+ TransceiverĀ fromĀ SolarflareĀ is a hot-pluggable SFP+ device for use in 10 Gb Ethernet links over multimode fiber. It is compliant with the SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-SR specifications.

Solarflare SOLR-SFM10G-SR Overview

TheĀ SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb/s SFP+ TransceiverĀ fromĀ SolarflareĀ is a hot-pluggable SFP+ device for use in 10 Gb Ethernet links over multimode fiber. It is compliant with the SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-SR specifications. The transceiver is RoHS compliant and lead-free per Directive 2002/95/EC6.

The SFP+ transceiver supports the 2-wire serial communication protocol as defined in the SFF-8472. This low-power module supports OM1, OM2, and OM3 multimode fiber (MMF) media with standard LC connectors.

Compatibility
The SFM10G-SR SFP+ transceiver module is compatible with single-port and dual-port SFP+ 10GbE server adapters. It supports up to 984.2′ (300.0m) reach using standard LC connectors with OM3 MMF.
Performance
The SFM10G-SR SFP+ transceiver enhances 10GbE SFP+ server adapter products by ensuring they deliver performance, low-latency, low-power, and scalable input/output virtualization. Combined with the SFM10G-SR transceiver, server adapters offer value for data centers, enterprise networks, virtualization and cloud applications, and high-performance computing (HPC) clusters.
Regulatory Compliance
The SFM10G-SR transceiver is a Class 1 Laser Product that complies with US FDA regulations. It is certified by TUV and CSA to meet the Class 1 eye safety requirements of EN (IEC) 60825 and the electrical safety requirements of EN (IEC) 60950.

Solarflare SOLR-SFM10G-SRĀ Specs

Form Factor
SFP+
Ethernet Standards
IEEE 802.3ae
Ports
1 xĀ Duplex LC
Networking Technology
10GBASE-SR
Wavelength
850 nm
Maximum Networking Distance
984′ / 300Ā m
Maximum Data Rate
10 Gb/s
Mode
Multi-Mode
Power Consumption
1 W
Operating Temperature
32 to 158°F / 0 to 70°C
Dimensions (L x W x H)
2.2 x 0.5 x 0.4″ / 55.9 x 12.7 x 10.2Ā mm
Packaging Info
Package Weight
0.1 lb
Box Dimensions (LxWxH)
5 x 4 x 1″
