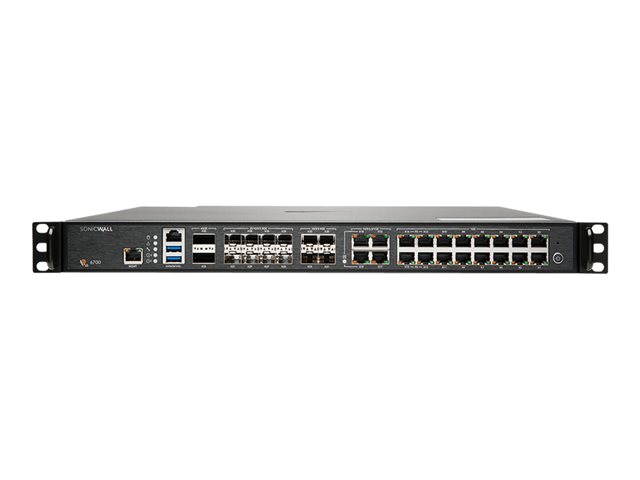

SonicWall NSa 6700 – Advanced Edition – security appliance

Add to Wishlist

SonicWall NSa 6700 – Advanced Edition – security appliance – 10 GigE, 40 Gigabit LAN, 5 GigE, 2.5 GigE, 25 Gigabit LAN – 1U – SonicWALL Secure Upgrade Plus Program (2 years option) – rack-mountable

AED172,399.00

Add to Wishlist

The SonicWall Network Security Appliance (NSA) series combines the patented SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to deliver intrusion prevention, gateway anti-virus, gateway anti-spyware, and application intelligence and control for businesses of all sizes. By integrating automated and dynamic security capabilities into a single platform, the NSA series provides comprehensive next-generation firewall protection without compromising performance.

Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.

SKU: 02-SSC-9580 Category: Tag:
Category Description
General
Device Type Security appliance
Height (Rack Units) 1U
Width 16.9 in
Depth 18.3 in
Height 1.8 in
Weight 17.86 lbs
Processor / Memory / Storage
Hard Drive SSD 256 GB x 1 – M.2
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP, HTTP, HTTPs
Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Remote Management Protocol SNMP 2, SNMP 3, SSH, CLI
Performance
Firewall throughput 36 Gbps
Threat prevention throughput 19 Gbps
Application throughput 20 Gbps
IPS throughput 20 Gbps
Anti-malware throughput 18.5 Gbps
TLS/SSL inspection throughput 9 Gbps
VPN throughput (IPSec) 19 Gbps
Connection rate 153,000 connections per second
Capacity
DPI connections 6,000,000
Maximum number of access points 512
VPN tunnels (site-to-site) 6,000
SPI connections 8,000,000
Virtual interfaces (VLANs) 512
DPI SSL connections 750,000
IPSec VPN clients 2,000 (maximum 6,000)
SSL VPN licenses 2 (maximum 1,500)
Authenticated users (internal database) 3,200
Features
(Too many features to list here)
Encryption Algorithm
DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, TLS 1.3
Authentication Method
RADIUS, LDAP, internal user database, XAUTH authentication
IP Telephony
VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
IP Telephony Features
VoIP gatekeeper support, VoIP outbound bandwidth management
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 16 x 1000Base-T – RJ-45 ¦ 2 x USB 3.0 – Type A ¦ 1 x console – RJ-45 ¦ 1 x management – RJ-45 ¦ 4 x 1/2.5/5/10 Gigabit Ethernet – SFP+ ¦ 4 x 1/2.5/5/10GBase-T – RJ-45 ¦ 8 x 25Gb Ethernet ¦ 2 x 40Gb Ethernet
Miscellaneous
(Too many standards to list here)
Pricing Type
SonicWALL Secure Upgrade Plus Program (2 years option)
Power
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 139.2 Watt
Power Provided 350 Watt
Software / System Requirements
OS Provided SonicOS 7.0
Software Included SonicWall Advanced Protection Service Suite (2 years)
Dimensions & Weight (Shipping)
Shipping Weight 30.42 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 – 90% (non-condensing)
