Sonifex Net-Log 4-Channel Network Audio Logger with 2TB SSD

Add to Wishlist
Key Features
  • Continuous 24/7/365 Recording
  • Playback
  • MPEG Audio Compression
  • Support for BWF Files

AED23,699.00

Add to Wishlist

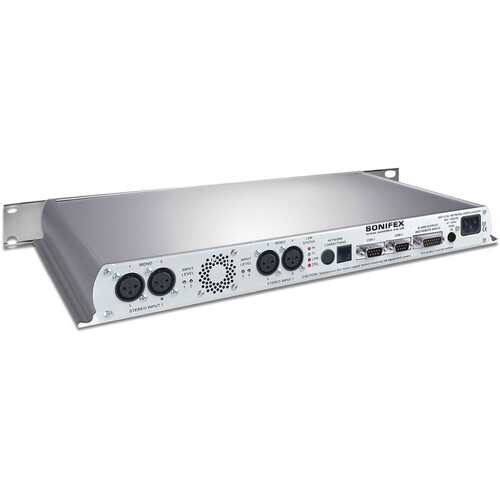

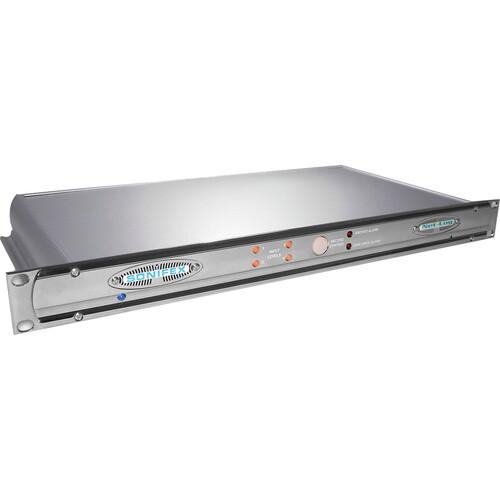

From Sonifex, the Net-Log 4-Channel Network Audio Logger with 2TB SSD records weeks of programming on the internal 2TB SSD. It was designed as a dedicated hardware for reliability reasons. For example, there’s no PC motherboard in this machine. The Net-Log was built to deliver continuous 24/7/365 recording as well as playback. Key features include MPEG audio compression and support for BWF files.

SKU: NET-LOG-01-2TBSSD Category: Tag:
Form Factor
Rackmount (Rack-Mountable with Included Hardware)
Number of Tracks
4
Maximum Simultaneous Tracks
4x Recording
Display
6x LCD
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
4x Button
Meters
4x LED
Sample Pads
No
Signal Processing
Pad
No
Gain/Trim Range
-6 dB to +20 dB
High-Pass Filter
No
EQ
No
Dynamic Processing
No
Built-In Effects
No
Connectivity
Analog Audio I/O
4x XLR 3-Pin Line Input
Phantom Power
No
Digital Audio I/O
No
Host Connection
No
USB (Non-Host)
No
Sync I/O
No
Network I/O
1x RJ45 Ethernet
MIDI I/O
No
Other I/O
2x DE-9/DB-9 9-Pin RS-232
1x DE-15/DB-15 15-Pin Remote Input
Wireless
No
Performance
Maximum Input Level
+20 dB
Impedance
Inputs:
> 10 Kilohms (Balanced)
SNR
90 dB (RMS, A Weighted, 22kHz bandwith)
THD
16 dBu / < 0.1% (@1kHz)
Digital Audio
Audio File Formats
BWF, MP2, MP3, WAV
Sample Rates
16 / 22.05 / 32 / 44.1 / 48 kHz
Bit Rates
8 to 384 kb/s
Sync Sources
Ethernet
Audio Storage & Playback
Supported Media
SSD
Media/Memory Card Slot
No
Supported Media Capacity
2 TB Maximum
Compatibility
OS Compatibility
Windows
Mobile App Compatible
No
Required Hardware
Ethernet Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
95 to 265 VAC, 50 / 60 Hz (2 A)
AC/DC Power Adapter
Included
Physical
Rackmount Size
1 RU (with Included Hardware)
Operating Humidity
0 to 10%
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
32 to 122°F / 0 to 50°C
Certifications
CE
Dimensions
18.9 x 8.7 x 1.7″ / 48 x 22 x 4.2 cm (Chassis Only)
Weight
5.5 lb / 2.5 kg
