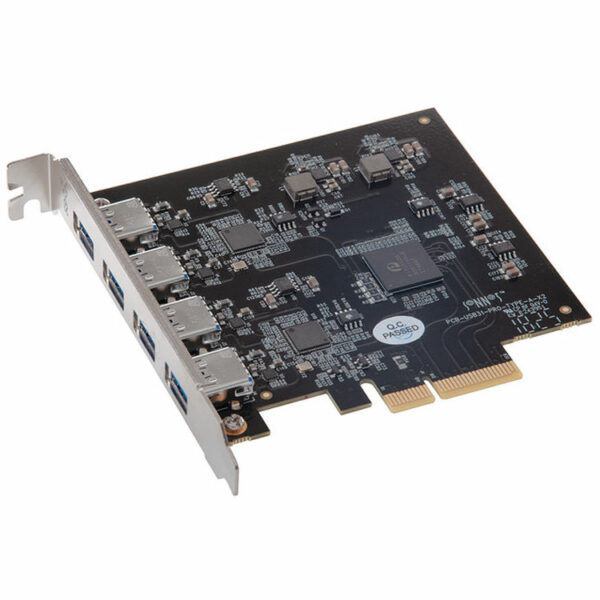

Sonnet Allegro Pro 4-Port USB 3.2 Gen 2 Type-A PCIe Card

Add to Wishlist
Key Features
  • Adds Four 10 Gb/s USB 3.2 Gen 2 Ports
  • Two Dedicated Controllers
  • Supports Data Transfers up to 800 MB/s
  • Up to 7.5W of Power per Port
  • Supports Charge & Sync
  • Hot-Pluggable and Hot-Swappable
  • Compatible with Thunderbolt Chassis
  • Windows, Mac, and Linux Compatible

AED699.00

Add to Wishlist

Add four 10 Gb/s USB 3.2 Gen 2 Type-A ports to your compatible Windows, Mac, or Linux system using the Allegro Pro 4-Port USB 3.2 Gen 2 Type-A PCIe Card from Sonnet. Built with a PCIe 2.0 x4 interface, this card features dual USB 3.2 Gen 2 controllers, each of which drives two of the USB ports. Data transfer speeds are supported up to 800 MB/s when one drive is connected, and up to 600 MB/s when two drives are connected. With all four ports in use, each port supports speeds up to 300 MB/s. Designed to be hot-pluggable and hot-swappable, this card may also be used in Thunderbolt 2 or Thunderbolt 3-to-PCIe card-expansion systems, including Sonnet’s Echo Express and xMac.

General Features
Four 10 Gb/s USB Type-A Ports
Adds four 10 Gb/s USB Type-A ports to your Mac Pro, Windows, or Linux computer with PCIe slots, or Thunderbolt-to-PCIe card-expansion system.
Dual USB 3.2 Gen 2 Controllers
Supports data transfers at up to twice as fast as USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0), and boosts data transfer speeds between connected drives.
Powered Ports
Supports USB bus-powered SSD, SSD RAID, and hard drives with up to 7.5W power per port.
Supports Charge & Sync
Supports USB 3.0 charging port handshake, and will simultaneously sync and charge iPads and other devices that support USB 3.0 charging at 1.5A per device
Protected Power Delivery
Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects; resettable device overcurrent fuses protect the card and computer, and may be reset by a simple shutdown.
Add USB 3.2 Gen 2 to Thunderbolt Expansion Systems
Add four 10 Gb/s USB Type-A ports to Thunderbolt-to-PCIe card-expansion systems.
Easy Installation
Quick and easy user installation into an available PCIe slot.
Broad USB Device Support & Compatibility
Supports storage, hubs, and other USB-IF compliant USB devices.
SKU: USB3 PRO 4P10E Category:

Sonnet Allegro Pro Specs

General
Inputs/Outputs 4 x USB-A 3.1/3.2 Gen 2
USB Bus-Power Support 7.5 W per Port
Expansion Slot Compatibility PCIe 2.0 x4
Chipset ASMedia 1142
USB Support Boot Support, Hot Plug / Hot Swap Support, USB Attached SCSI Protocol
Software System Requirements
OS Compatibility Linux 4.12 or Later
Windows 7
Windows 8.1
Windows 10
Windows Server 2008
Windows Server 2012
Windows Server 2016
macOS 10.10
macOS 10.12 or Later
*As of August, 2020: Check with manufacturer for the most up-to-date compatibility
Physical
Certifications RoHS
*as per Manufacturer
Packaging Info
Package Weight 0.285 lb
Box Dimensions (LxWxH) 8.75 x 5.58 x 1.38″
