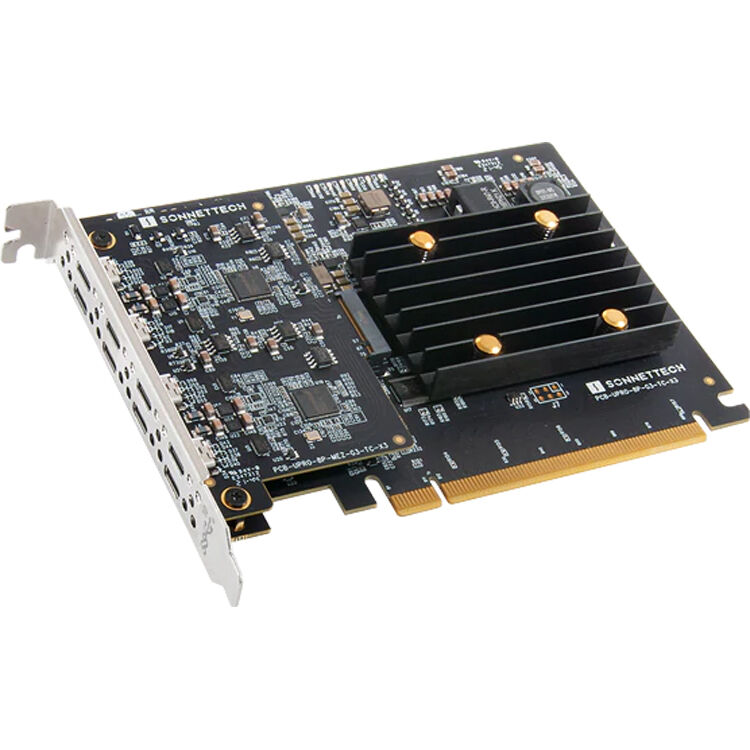

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card


Key Features
  • 8 x USB 3.2 Gen 2 Type-C Ports
  • PCIe 3.0 x16 Interface
  • Up to 10 Gb/s Throughput per Port
  • Up to 7.5W / 1.5A of Power per Port
  • 4 x ASMedia 3142 Controllers
  • Windows, Mac, and Linux Compatible

AED1,999.00

Add eight USB 3.2 Gen 2 Type-C ports to your compatible computer with theĀ Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 CardĀ fromĀ Sonnet. Equipped with four ASMedia 3142 USB 3.2 Gen 2 controllers and capable of transferring up to 10 Gb/s per port with compatible devices, this PCIe 3.0 x16 card can supply up to 7.5W, 1.5A of power per port to connected hard drives, SSDs, and other supported USB Type-C devices. The card is compatible with select versions of Windows, Mac, and Linux.

High-Speed Simultaneous Transfers
Four independent USB 3.2 Gen 2 controllers control a pair of Type-C ports each, concurrently delivering a full 10 Gb/s of bandwidth through each port.
Intelligent Power Delivery & Management
Independent, per-port power regulation prevents power glitches that may disconnect drives.
No Auxiliary Power Required
Sonnet’s Allegro Pro card draws all the power necessary to operate connected drives from the slot it’s installed in. This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system, regardless of it having extra power connectors available.
Resettable Fuses
A resettable fuse on each port protects both the card and computer should a cable or peripheral fail. Resetting a tripped fuse is simple. Just shut down and then restart your computer.
Hot-Swap Support
Plug in and disconnect peripherals without shutting off your computer.
SKU: USB3C 8PM E Category:

Sonnet Allegro ProĀ Specs

General
Inputs/Outputs 8 xĀ USB-C 3.1/3.2 Gen 2
USB Bus-Power Support 1.5 A, 7.5 W per Port
Expansion Slot Compatibility PCIe 3.0 x16
Slot Compatibility Full Height
Chipset ASMedia ASMedia 3142
Software System Requirements
OS Compatibility Windows 10 or Later
macOS 10.12.6 or Later
Linux 5.4 or Later
Ubuntu 20.4.4 or Later
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Environmental
Operating Temperature 32 to 95°F / 0 to 35°C
Packaging Info
Package Weight 0.515 lb
Box Dimensions (LxWxH) 9.1 x 6.2 x 1.3″
