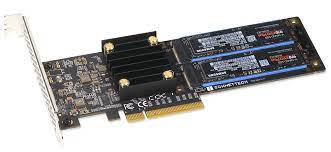

Sonnet M.2 2×4 Low Profile PCIe 3.0 x8 Card for NVMe SSDs

Add to Wishlist
Key Features
  • PCIe 3.0 x8 Host Interface
  • 2 x M.2 2280 NVMe PCIe Sockets
  • 16TB Max Storage Capacity
  • 6600 MB/s Read Speed (RAID 0)
  • Supports RAID 0 & 1
  • Silent Cooling Design
  • Low-Profile & Full-Height Brackets
  • Works with macOS, Windows, and Linux

999.00 د.إ

Add to Wishlist

Expand your computer’s storage capacity by installing the M.2 2×4 Low Profile PCIe 3.0 x8 Card from Sonnet into an available PCI express x8 slot. There are two M.2 2280 NVMe PCIe 3.0 sockets built onto this card, supporting up to 16TB of separately purchased double-sided solid-state storage in RAID 0, or 1 configurations. Sustained read speeds can reach up to 6600 MB/s in RAID 0 mode, providing the performance needed for demanding tasks such as video editing, 3D modeling, design, and more. A custom designed passive, silent cooling solution allows drives to maintain high performance during large file transfers without speed throttling. The self-contained card works with most motherboards with an available PCIe 3.0 x8 slot using macOS, Windows 10, and Linux operating systems alongside a wide variety of M.2 NVMe PCIe SSDs.

M.2 NVMe PCIe SSD Expansion
This M.2 2×4 PCIe card allows you to install up to two of your own double-sided M.2 NVMe solid-state drives, for a total of 16TB, into a single PCIe 3.0 x8 slot.
High-Speed Storage
The PCIe 3.0 x8 host bus interface provides four lanes of bandwidth to the installed SSDs for maximum performance. Sustained data transfer speeds can reach up to 6600 MB/s in RAID 0 mode and 3400 MB/s from individual SSDs.
RAID Support
Connected solid-state drives may be put into RAID 0 or 1 configuration.
Compact Design
This PCIe x8 adapter includes both low-profile and full-height brackets, allowing it to be installed into most computer systems and compatible enclosures.
Cool Operation
The M.2 2×4 card’s cooling design allows it to stay silent while helping avoid speed throttling during large file transfers.
Optimized for Thunderbolt 3
This PCIe card is compatible with separately purchased Sonnet Thunderbolt 3 expansion systems, which can transfer up to 2800 MB/s through a single cable.
macOS Booting
Supports booting from a single (non-RAID) attached SSD.
SMART Operation
Supports SMART (Self-Monitoring, Analysis and Reporting Technology) data reporting.
SKU: FUS-SSD-2X4-E3S Category:

Sonnet FUS-SSD-2X4-E3S Specs

General
System Connection PCI Express 3.0 x8
M.2 2 x 2280 (PCIe 3.0 x4)
RAID RAID 0, 1
OS Compatibility macOS 10.13.6 or Later
Windows 10 or Later
Linux 5.0 or Later
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Physical
Form Factor Full-Height, Low-Profile
Audible Alarm No
Status Monitoring None
Packaging Info
Package Weight 0.595 lb
Box Dimensions (LxWxH) 8.8 x 6.2 x 1.4″
