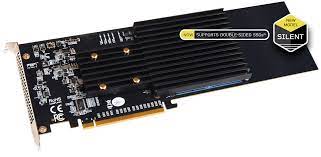

Sonnet M.2 4×4 Silent PCIe 3.0 x16 Card for NVMe SSDs

Add to Wishlist
Key Features
  • PCIe 3.0 x16 Host Interface
  • 4 x M.2 2280 NVMe PCIe Sockets
  • 32TB Max Storage Capacity
  • 11,700 MB/s Read Speed (RAID 0)
  • 11,600 MB/s Write Speed (RAID 0)
  • Supports RAID 0, 1, and 5
  • Silent Cooling Design
  • Works with macOS, Windows, and Linux

1,499.00 د.إ

Add to Wishlist

Sonnet FUS-SSD-4X4-E3S Overview

Expand your computer’s storage capacity by installing the M.2 4×4 Silent PCIe 3.0 x16 Card from Sonnet into an available PCI express x16 slot. There are four M.2 2280 NVMe PCIe sockets built onto this card, supporting up to 32TB of double-sided solid-state storage in RAID 0, 1, or 5 configurations. Sustained read speeds can reach up to 11,700 MB/s and with a 11,600 MB/s maximum write speed in RAID 0 mode using a 2019 Mac Pro, providing the performance needed for demanding tasks such as video editing, 3D modeling, design, and more. A custom designed passive, silent cooling solution allows drives to maintain high performance during large file transfers without speed throttling. The self-contained card works with most motherboards with an available PCIe 3.0 x16 slot using macOS, Windows 10, and Linux operating systems alongside a wide variety of M.2 NVMe PCIe SSDs.

M.2 NVMe PCIe SSD Expansion
This M.2 4×4 PCIe card allows you to install up to four of your own double-sided M.2 NVMe solid-state drives, for a total of 32TB, into a single PCIe 3.0 x16 slot without needing additional drivers.
High-Speed Storage
The PCIe 3.0 x16 host bus interface and x16 PCIe bridge provide four lanes of bandwidth to each installed SSD for maximum performance. Sustained data transfer speeds in RAID 0 can reach up to 11,700 MB/s.
RAID Support
Connected solid-state drives may be put into RAID 0, 1, or 5 configuration.
Cool Operation
The M.2 4×4 card’s cooling design allows it to stay silent while helping avoid speed throttling during large file transfers.
Optimized for Thunderbolt 3
This PCIe card is compatible with separately purchased Sonnet Thunderbolt 3 expansion systems, which can transfer up to 2750 MB/s through a single cable.
SKU: FUS-SSD-4X4-E3S Category:

Sonnet FUS-SSD-4X4-E3S Specs

General
System Connection PCI Express 3.0 x16
M.2 4 x 2280 (PCIe 3.0 x4)
RAID RAID 0, 1, 5
OS Compatibility macOS 10.13.6 or Later
Windows 10
Linux 5.0 or Later
*As of July, 2020: Check with manufacturer for the most up-to-date compatibility
Physical
Audible Alarm No
Status Monitoring None
Packaging Info
Package Weight 1.175 lb
Box Dimensions (LxWxH) 14.7 x 6.4 x 2.3″
