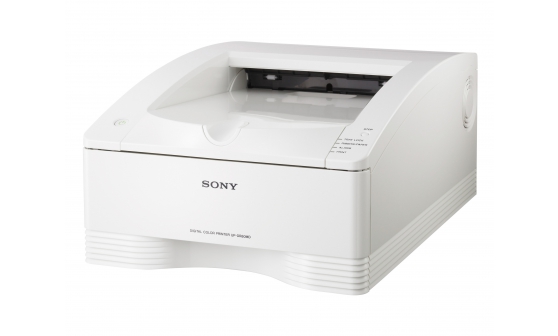

SONY A4 Digital Color Printer UP-DR80MD

Availability:

10 in stock
Add to Wishlist

Add to Wishlist

A4 Digital Color Printer

The UP-DR80MD digital color printer for medical applications.
Delivering a compelling combination of compact convenience, superior image quality and low total-cost-of-ownership, the UP-DR80MD is the world’s smallest A4 dye sublimation printer.
Easy Color Adjustment
The UP-DR80MD offers easy color adjustment via its printer driver property. This incorporates a preview image from which you can confirm and adjust images easily.
Color Look Up Table
Two types of color look up table are available to reproduce suitable colors for different modalities, such as endoscopy and ultrasounds. The default “Natural” setting creates a color based on the s-RGB monitor, which is suitable for endoscopy images. For ultrasound images, a “CG” color mode is available that reproduces more vivid colors. These settings are selectable via the printer property.
Gray Balance Adjustment
A Gray Balance Adjustment function allows you to easily select the color that most closely matches your requirements and provides the most suitable tonal range for your application.
Wireless Printing Capability
By using the optional UPA-WU10* Wireless Print System, you can achieve cable-free connection between a Sony digital printer with a 5-V USB output port**, mobile C-arm, and other hospital imaging modalities.

* Product availability of the UPA-WU10 may vary according to the sales area. For more information, please contact your nearest Sony sales office or an authorized dealer.
** For more information about compatible printers, please contact your nearest Sony sales office or an authorized dealer.

Superb Print Quality
Incorporating Sony’s dye sublimation technology, the UP-DR80MD produces photo-quality prints. It also employs Sony’s laminating technology, which coats each print with a protective layer that’s resistant to light, heat, water, humidity, and fingerprints. This laminating technology allows the prints to be placed in long-term storage without fear of degradation. The UP-DR80MD can print onto two different sizes of paper: A4 (297 x 210 mm, 11 3/4 x 8 3/8 inches) and Letter (279 x 216 mm, 11 x 8.5 inches).
High-speed Printing
The UP-DR80MD operates at high speed. Printing an A4-sized image takes approximately 76 seconds
Compliance with medical standards
This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1).

For more details, please contact your nearest Sony sales office or an authorized dealer.

Wireless Printing Capability*
The optional UPA-WU10 Wireless Print System allows cable-free connection between the UP-DR80MD and surgical endoscopes, ultrasound systems, and other hospital imaging modalities. This is ideal for busy clinical environments, where modalities are constantly being moved between different operating rooms and treatment rooms. This all-in-one wireless printing solution also resolves the problem of limited space on medical carts, allowing connection between a medical imaging modality and an “off-cart” printer without requiring a lengthy USB cable.

* This function is available to Sony digital printers with a 5-V USB-A output port. For more information regarding compatibility, please contact your nearest Sony office or an authorized dealer.

Front Operation
The front-loading operation makes it easy to replace paper and ribbon, and allows the UP-DR80MD to be installed in even the tightest of spaces. This useful design feature also allows you to use the printer on-cart.
Stylish Design and Compact Size
The UP-DR80MD has a stylish design that fits perfectly with most medical environments. Its glossy white surface allows users to wipe it clean easily. Also, the compact body of the UP-DR80MD (approx. 317(W) x 207(H) x 425(D) mm (12 1/2 (W) x 8 1/8 (H) x 16 3/4 (D) inches) enables it to fit into both medical carts and constrained spaces.
SKU: UP-DR80MD Category: Tags: , ,

Generic Specifications

Printing Method
Dye sublimation printing
Resolution
301 dpi
Gradations
8 bits (256 levels) processing each for yellow, magenta and cyan
Effective Print Pixels
A4 size UPC-R80MD: 3400 x 2392 dots
Letter size UPC-R81MD: 3192 x 2464 dots
Print Area
A4 size: 287 x 202 mm (11 1/4 x 8 inches)
Letter size: 269 x 208 mm (10 5/8 x 8 1/4 inches)
Printing Time
A4 size: Approx. 76 sec
Letter size: Approx. 72 sec
Interface
Hi-Speed USB (USB 3.0)
Paper Tray Capacity
50 sheets
Power Requirements
AC 100 to 240 V, 50/60 Hz
Input Current
3.4 to 1.4 A
Output current
0.5A/5V (USB 3.0)
Operating Temperature
5 °C to 35 °C
Operating Humidity
20% to 80% (no condensation allowed)
Storage and Transport Temperature
-20 °C to 60 °C
Storage and Transport Humidity
20% to 80% (no condensation allowed)
Dimensions
Approx. 317(W) x 207(H) x 425(D) mm
(12 1/2 (W) x 8 1/8 (H) x 16 3/4 (D) inches)
Mass
Approx. 11.5 kg (25.3 lbs)
