Sony CineAlta Digital Cinema Camera F65

Availability:

10 in stock
Add to Wishlist

Add to Wishlist

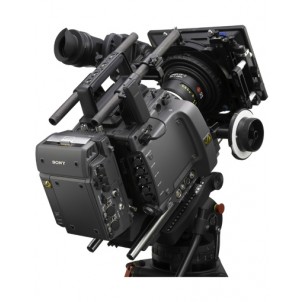

Sony F65 CineAlta Digital Cinema Camera



HIGHLIGHTS

    • * Discontinued. Check Similar Products for Successor Model
    • 4K
    • Exposure latitude and sensitivity
    • Extended color gamut
    • SRMASTERā„¢ recording
    • Choice of picture composition
    • Up to 120 frames per second
    • Rotary shutter option



Super 35mm CMOS sensor with 20 Mega pixels

The F65 features superb image quality in HD/2K and True 4K. There is a choice of format composition as required, including 1.85:1, 1.78:1, 1.66:1, 1.33:1, 2.35 spherical, 1.3x anamorphic, or 2x anamorphic cropped. The F65 has a 14-stop latitude, high sensitivity and ultra-low noise. It offers filmic colour reproduction with an unrivalled colour gamut.

Compact and light-weight

Smaller and lighter than the F35, the F65 allows for even easier handling for applications such as Steadicam.

Records on to SRMemory with dockable SR-R4 SRMASTER Portable Recorder

The SR-R4 is a 4K recording system specifically designed for Sony’s new top-of-the-line F65 cinematography camera. It takes full advantage of the ultra high-speed SRMemory platform to record super-rich RAW data from the F65 at speeds as fast as 5 Gbps.

SRMemory is unique ā€“ nothing can match its combination of capacity, sustained data throughput, security and portability. It opens up completely new ways for end-users to work. With huge transfer speeds up to 5 Gbps, SRMemory media also has massive capacity up to 1TB for long recording times.

Wide range of interfaces for on-set workflow

The F65 provides 16bit RAW output for recording onto SRMemory in the dockable SR-R4. Other interfaces include monitoring via HD-SDI and HD viewfinder with LUT, camera remote connector, LAN connecter, WiFi Camera Control and Cooke /i support.

Rotary shutter

The optional mechanical rotary shutter eliminates the rolling-shutter effect common to CMOS sensors.

Built-in ND Filters





Incredible images from Full HD to 8K



Itā€™s the secret of unparalleled emotion and story-telling power. With a resolution of 20 megapixels, the Super 35mm 8K CMOS sensor inside the F65 delivers unprecedented 8K/4K/QFHD/2K/HD images with extremely fine texture and low aliasing. Even if youā€™re post producing for delivery in 2K/HD, this extraordinary sensor provides gorgeous super-sampled images beyond the reach of ordinary HD cameras.



Relied on by the world’s great image makers



The F65 CineAlta camera conveys the widest color range with Sonyā€™s S-Gamut, the highest recording precision with 16-bit linear RAW, and the strictest geometric integrity with a mechanical rotary shutter ā€” all with the stunning detail of a 20-megapixel image sensor. No wonder the F65 has captured the hearts and minds of leading directors and DPs worldwide, realizing truly astonishing moving images. Building on an exceptional track record in movies, commercials, music videos, and episodic TV, the F65 is also a powerful 4K live production tool, offering S-Log3 grayscale encoding, high-speed RAW recording up to 120 fps and 12-bit 4:4:4 High Definition.



Go far beyond ordinary color



Thanks to advanced dyes in the image color filter array of the 20-megapixel Super 35 mm CMOS sensor, Sonyā€™s S-Gamut reproduces reds and greens that are literally beyond the reach of other cameras. Then we preserve every last nuance of color with phenomenal 16-bit linear RAW recording. This encodes over 65,000 discrete shades of red, plus 65,000 blues and 65,000 greens, for more than 275,000,000,000,000 possible colors. When your next project demands the ultimate in color fidelity, the F65 exactly matches your vision.

SKU: F65 Categories: , Tags: , , ,
General

Power Requirements
DC 10.5 V to 17 V
Power Consumption
Approx. 65 W (Mechanical rotary shutter operating.) (without lens, viewfinder, at 23.98PsF mode)
Operating Temperature
0Ā°C to 40Ā°C
32Ā°F to 104Ā°F
Storage Temperature
-20Ā°C to +60Ā°C
-4Ā°F to +140Ā°F
Mass
5.0 kg (6.5 kg with accessories)
11 lb (14 lb 5 oz with accessories)
Camera Section

Pickup Device
1-chip Super 35 mm type CMOS
Aspect Ratio
17:9
Built-in Filters
Clear, ND0.9 (1/8ND), ND1.2 (1/16ND), ND1.5 (1/32ND), ND1.8 (1/64ND)
Lens Mount
o54 mm PL mount
Flange Focal Length
52.00 mm (+/-0.04 mm adjustable in 0.01 mm increments by shim replacement)
Latitude
14-stop
Registration
Within 0.02% (all zones, without lens)
Distortion
Below measureable level (without lens)
Input/Output

DC Input
Lemo 8-pin (male) (x1), DC 10.5 V to 17 V, DC 20 V to 30 V
DC Output
DC 12 V: 11-pin (x1), max. 4 A
DC 24 V: 3-pin (x1), max. 4 A
Viewfinder
20-pin (x1)
Lens
12-pin (x1)
SDI Output
BNC (x2), HD-SDI (4:2:2)
HD-Y Output
BNC (x1), 75 Ī©, 1.0 Vp-p
Genlock Input
BNC (x1), 75 Ī©, HD 3-level sync, 0.6 Vp-p
Remote
8-pin (x1)
External Input/Output
Lemo 5-pin (female) (x1)
Ethernet
RJ-45 type (x1), 10BASE-T/100BASE-TX
Lens Mount Hot Shoe
4-pin (x2), conforming to ARRI LDS (Lens Data System) and Cooke /I Intelligent Electronic Lens System)
USB
Type A, USB2.0 Hi-Speed (x1)
“Memory Stick” (MS)/SD Memory Card
“Combo-connector (x1)
Supports “”Memory Stick Duo””, “”Memory Stick PRO Duo””
Supports SD memory cards, SDHC memory cards up to class 10″
Supplied Accessories

Supplied Accessories
Belt bracket (1)
Cable clamp belt (1)
19mm dia carbon rod (1)
+B3 x 5 screws (4)
Center handle (1)
Viewfinder mounting plate (1)
Riser plate (1)
Power cable connector (LEMO 8-pin) (1)
Operation manual (CD-ROM) (1)
Operation guide (1)
This product contains pre-installed software and requires the purchase of license keys to activate some functions.
