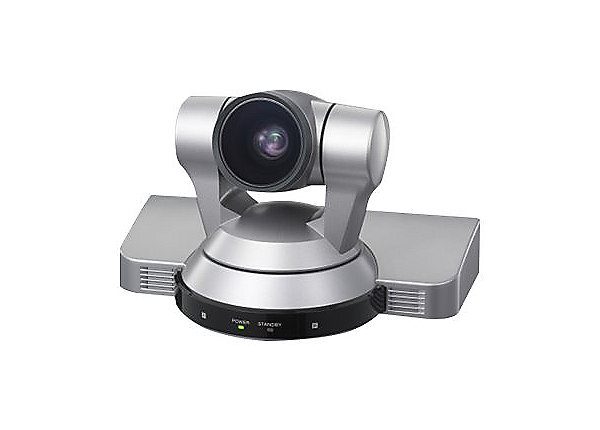

Sony EVIHD1 10x High Definition Color Pan/Tilt/Zoom Camera EVI-HD1

Availability:

10 in stock
Add to Wishlist

Features

* 1/3 type CMOS image sensor
* Approximately 2M effective pixels
* Signal System: 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 720/59.94p, 720/50p, 720/29.97p, 720/25p, NTSC, PAL
* Video Output: HD-SDI, HD Analog component(Y/Pb/Pr), VBS, Y/C
* 10x Optical, 4x digital zoom lens
* RS-232C Camera Control Interface
* 6 position presets
* Pan: -100 to +100 deg. (Max. speed 300 deg./sec)
* Tilt: -25 to +25 deg. (Max. speed 125 deg./sec)
* Minimum Illumination: 15lx (F1.8)
* Horizontal viewing angle: 8° (Tele) to 70° (Wide)
* Dimensions: 10-1/4 x 6 x 6-3/4 inches
* Mass: 4 lbs. 7 oz.



AED14,999.00

10 in stock

Add to Wishlist

Sony EVIHD1 10x High Definition Color Pan/Tilt/Zoom Camera

Main Features
  • EVIHD1-10x High Definition Color Pan/Tilt/Zoom Camera

Conference rooms and boardrooms everywhere are going HD, and Sony’s EVI-HD1 takes the headache out of this transition with the flip of a switch – literally. Sony is adding a high-definition model to its EVI camera series. Since it is also compatible with standard definition (SD), this unique p/t/z camera allows you to take the first step in HD migration. The EVI-HD1 camera combines a high-quality HD color video camera with the flexibility of remote pan/tilt/zoom operation. With 14 formats to choose from (including eight HD types and six SD video formats), this new dynamic camera allows end-users to decide when they are ready to migrate from SD to HD. The EVI-HD1 is compatible today with existing videoconferencing systems and will be compatible tomorrow with HD based ones. It also inherits many outstanding features from the EVI-D100 P/T/Z camera and couples these with superb HD picture quality. Smooth, high-speed pan/tilt operation, 16×9 aspect ratio images and a built-in 10x optical zoom/wide angle lens, make the EVI-HD1 ideal for small to medium size conference rooms.



SKU: EVI-HD1 Category: Tags: , , ,

Technical Specifications

  • Surveillance Camera Sensitivity

    • 50
    • 15
    • Color
    • F1.8

  • CCTV

    • CCTV cameras

  • Dimensions & Weight

    • 10.2 in
    • 6.7 in
    • 5.9 in
    • 4.41 lbs

  • Environmental Parameters

    • 32 °F
    • 104 °F

  • Header

    • PC
    • Sony
    • 1
    • Sony EVI
    • HD1
    • Sony

  • Interface Required

    • Display / video
    • S-video output
    • 1
    • Serial
    • RS-232C
    • Component video output
    • Composite video output
    • HD-SDI output

  • Lens System

    • F/1.8-2.1
    • 3.4 mm
    • 33.9 mm
    • Automatic, Manual
    • 8
    • 70

  • Optical Sensor

    • CMOS
    • 1/3″
    • 1/3″
    • 8.5 mm (1/3″)
    • 8.5 mm (1/3″)

  • Power

    • DC 12 V

  • Power Device

    • Power adapter
    • External
    • 30 Watt

  • Slot Required

    • None

  • Video Input

    • 4
    • 10
    • 1/10000 sec
    • 1/2 sec
    • Color
    • Surveillance camera
    • RS-232C
    • Pan / tilt / zoom
    • 125
    • -100 to +100
    • 300
    • -25 to +25
    • NTSC, PAL
    • Component video, Composite video, S-Video
    • 1920 x 1080
