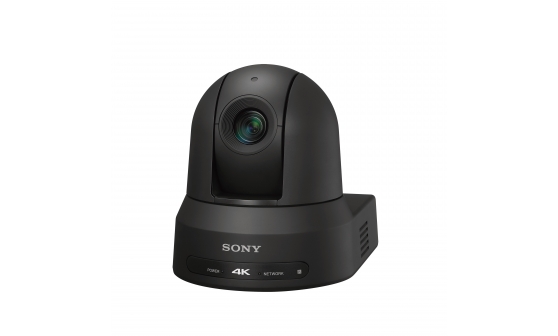

Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black)

Add to Wishlist

19,999.00 د.إ

Add to Wishlist

IP 4K Pan-Tilt-Zoom Camera with NDIĀ®|HX capability

Capture every point of view in 4K with excellent picture quality and efficient IP production workflow

The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments ā€” from broadcast studios and remote on-air suites to sports stadiums, arenas, faith centers, and lecture halls.

The camera’s 1/2.5-type Exmor R CMOS sensor captures broadcast-quality 4K images with excellent sensitivity, very low noise, and rich, natural color reproduction. It’s complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD*** (30x in 4K), with an expansive approx. 70Ā° wide angle coverage to capture every point of view.

Efficient IP-based live production is augmented with support for NDIĀ®|HX* (via optional license), allowing flexible configuration with other networked NDI-enabled devices.

Images can also be reviewed remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Picture Setting File** allowing the same settings to be applied to multiple cameras. Convenient integration in multi-camera live events is also simplified with genlock support and an “on-air” tally lamp.

* NDIĀ® is a registered trademark of NewTek, Inc.
** Available through future upgrade planned in early 2020
*** With Clear Image Zoom and Tele Convert Mode

Excellent 4K images, even in low light
The sensitive 1/2.5-type Exmor R sensor captures high-quality 4K images with very low noise, even in dimly lit environments.
Wide viewing angle
Cover the whole scene in sports arenas and lecture theaters with a horizontal viewing angle of approx. 70Ā°.
Multiple control protocols
PTZ and other camera functions can be controlled remotely via S700PTP, CGI, and VISCA protocols.
Remote viewing
View pictures remotely over the Internet from a web browser, with support for RTSP (Real Time Streaming Protocol).
Ideal for live production
Genlock allows seamless multi-camera switching in live events. The camera’s inbuilt tally lamp is ideal for live productions and reality shows.
Fast, fuss-free set-up

The new Picture Setting File* function can apply the same camera settings among multiple cameras for fast set-up.

*Available through future upgrade planned in early 2020

Simpler installation, lower costs
A single IP cable carries camera power, video image output, and control signals to simplify installation and reduce cabling costs.
Support for NDIĀ®*|HX

NDIĀ®|HX compatibility (via optional license) supports efficient IP-based live production, allowing flexible configuration with other networked NDI-enabled devices.

Network services, content, and the operating system and software of this Product may be subject to individual terms and conditions and changed, interrupted, or discontinued at any time and may require fees, registration, and credit card information.

Up to 80x zoom
Powerful zoom up to 80x (in FHD) allows frame-filling close-ups with fine details seen clearly. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.
SKU: BRC-X400 Categories: , Tags: , , ,

Camera

Image Sensor
1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
Signal System
2160/29.97p, 25p, 23.98p (HDMI and IP only)
59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i,50i,
720/59.94p, 50p
4K capability
Yes (built-in 4K functions)
Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution
1700 TV line (Center) (4K)
1000 TV line (Center) (FHD)
Gain
Auto/Manual (0 dB to +48 dB)
High Sensitivity On
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)
White Balance
Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
Zoom capability
30x (4K with CIZ)/40x (HD with CIZ), Max. 80x (HD with CIZ** and Tele Convert Mode)
**CIZ = Clear Image Zoom
Focusing System
Auto/Manual
Horizontal Viewing Angle
Approx. 70.0Ā° (Wide)
Focal Length
f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
Minimum Object Distance
80 mm (Wide)~
800 mm (Tele)
Pan/Tilt Angle
Pan: Ā±170Ā°
Tilt: +90Ā°/-20Ā°
Pan/Tilt Speed (Max.)
Pan: 300Ā°/s
Tilt: 126Ā°/s
Pan/Tilt Speed
Pan: 1.1Ā° to 101Ā°/s
Tilt: 1.1Ā° to 91Ā°/s
Pan/Tilt Speed (Slow)
Pan: 0.5Ā° to 60Ā°/s
Tilt: 0.5Ā° to 60Ā°/s
Pan/Tilt Slow Mode
Yes
Preset Position
256 (CGI)
100 (VISCA)
Picture Freeze Preset
Yes
Preset Mode1/Mode2
Yes

Network

IP Video resolution
3840×2160, 1920×1080, 1280×720, 720×576, 720×480, 640×360
Compression Format
H.264 (High/Main/Baseline Profile), JPEG
H.265: Main Profile
Maximum Frame Rate
H.264: 60fps
H.265: 60fps
Bitrate Compression Mode
CBR/VBR (selectable)
Range of Bitrate Setting
512 Kbps ~50 Mbps
Multi Streaming Capability
3
Maximum Number of Clients
5
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDIĀ®|HX Capability
Yes Optional (requires a license)

Camera Features

Auto ICR
Yes (available through future upgrade planned in early 2020)
Day/Night
Yes
Visibility Enhancer
Yes
Image Stabilization
Yes
Image Flip
Yes
Picture Profile Preset
Yes
Color Gain
Yes (15 step)
Color Hue
Yes (15 step)
Color Matrix
Yes (Standard, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
Gamma
Standard/Straight/512Pattern/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709
Gamma Level
Yes (15 step)
Black level
Yes (97 step)
Black Gamma
Yes (15 step)
Knee Point
Yes (15 step)
Knee Slope
Yes (15 step)
Flicker Cancel
On/Off
B&W
Yes
Color Bar
On/Off

Web UI

Ver Up
Yes

Audio

Channel
2 ch
Audio Codec
AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)
Setting Option
Auto Gain Control (AGC): On/Off
Equalizer Off/Low Cut/Voice enhancement
Input selection: Microphone/Line
Mic Volume -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming
Yes

Interface

4K Video Output
HDMI x1 and IP (streaming) x1
HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1
HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit
Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
S700PTP RJ-45
IR Remote Control
Yes
Microphone Input
Mini-phone (Ļ†3.5mm) x2 (Mic/Line Selectabe)
Sync. System
EXT/INT
External Sync. Input
BNC, 75Ī©, HD 3-level sync, SD Black Burst
Tally
Front x 1
Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4

General

Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption
25.5 W (Max)
Operating Temperature
0 Ā°C to 40 Ā°C
32 Ā°F to 104 Ā°F
Storage Temperature
-20Ā°C to + 60Ā°C
-4 Ā°F to + 140 Ā°F
Dimensions (W x H x D)*1
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
Mass
Approx. 1.8 kg
3 lb 15.5 oz
Body Color
White/Black
Size of Screw Hole for Tripod
1/4-20UNC x1
Mountable Angle
< Ā±15Ā°
Ceiling Mount
Yes
Supplied Accessories
AC power adapter (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8(8)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
