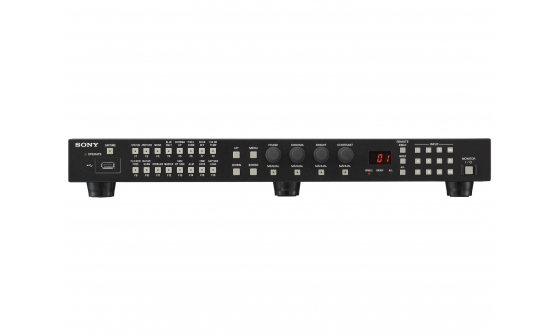

SONY Monitor Control Unit BKM-17R

Availability:

10 in stock
Add to Wishlist

د.إ3,999.00

10 in stock

Add to Wishlist

Monitor Control Unit



Monitor Control Unit ideal for BVM Series monitors including BVM-E251/E171
The 19-inch rack-mountable BKM-17R monitor control unit gives you control of the BVM-E251/E171 Series monitor. It can also control the BVM-X Series*, BVM-E series*, BVM-F series*, BVM-L Series*, PVM-L series* and PVM-X550*. A USB memory is used for storing captured data.
One BKM-17R can control up to 32 BVM monitors.

*The supplied AC adaptor of the BKM-17R must be used when you need to connect it with these monitors except the BVM-E251 or E171.

Modular Monitor Control Unit
The control unit for the BVM-E251/E171 Series monitor. It also can control the BVM-X Series, BVM-E series, BVM-F series, BVM-L Series, PVM-L series and PVM-X Series*. The Monitor Control Unit can be attached below the BVM-E251/E171 monitor using the optional Controller Attachment Stand (BKM-37H, BKM-38H or BKM-39H), or connected remotely via an Ethernet cable.

* When using this unit with the monitors except BVM-E251 and E171, use the supplied AC adaptor.

USB memory
A USB memory is used for storing a captured data, exchanging setting data of the monitor to another BVM-E251 or E171 monitor and updating them.**

** Captured data and setting data of the monitor cannot be exchanged with other monitors except the BVM-E251/E171 and neither can firmware updates be exchanged.

19-inch EIA standard rack-mountable
The rack mount brackets and screws are supplied.
SKU: BKM-17R Category: Tags: , ,
Input

Serial Remote (LAN)
RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input
DC jack (x1)
Output

Option Output
Serial Remote (LAN) RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)

* This is same connector of the Input.

General

Power Requirements
DC IN: 12V, 0.5A
AC adaptor (Model number AC-UES1230M):
AC IN 100 V to 240 V, 50/60 HZ,
DC OUT: 12 V, 3A
Power Consumption
Approx. 6W
Peak Inrush Current
(1) Power ON, current probe method: 33 A (100 V), 80 A (240 V)
(2) Hot switching inrush current, measured in accordance with European standard EN55103-1:
14 A (230 V)
Operating Temperature
0°C to 35°C (Recommended: 20°C to 30°C)
32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity
0% to 90% (no condensation)
Storage/Transport Temperature
-10°C to +40°C
(14°F to +104°F)
Storage/Transport Humidity
0% to 90%
Operating/Storage/Transport Pressure
700 hPa to 1060 hPa
Dimensions
Approx. 424 x 58.8 x 169.6 mm
(16 3/4 x 2 3/8 x 6 3/4 inches)
Mass
Approx. 2.1Kg
(Approx. 4 lb10 oz)
