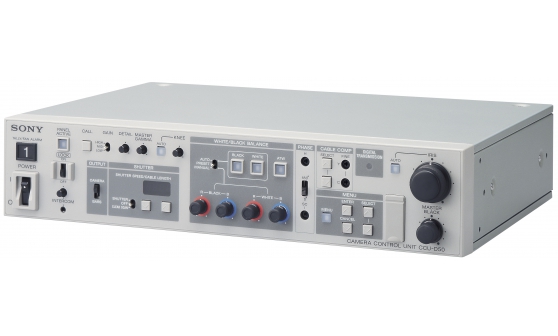

SONY Multicore camera control unit for DXC series cameras CCU-D50P
Availability:
10 in stock
Multicore camera control unit for DXC series cameras
Multicore Camera Control Unit for operation with the Sony DXC-D50P Series digital cameras together with the CA-D50 Camera Adaptor. The output of the Camera is transmitted to the CCU-D50P Camera Control Unit as a component digital SDI signal via a Sony CCZ-A 26-pin cable up to 75 m long. The distance between the CA-D50 Camera Adaptor and CCU-D50P Camera Control Unit can be extended to a maximum 200 m by providing a separate low loss coaxial video cable to carry the SDI signal between the two units.
Low Cost
The use of multicore transmission ensures low total system costs, avoiding the complexities of triax transmission.
Versatile System Interfaces
- The CCU-D50 offers the user analog composite video output, plus either component digital SDI, or analog component (Y/R-Y/B-Y or RGB).
- Flexible intercom connectivity allows the interfacing of 2-wire or 4-wire systems.
- Both Red and Green tally indications are included for use in mid to large-scale camera operations.
- The RCP-D50 can be connected to the CCU-D50P.
Excellent Picture Quality
The use of Component Digital signal transmission ensures that very high quality can be maintained.
General
Power requirements:
AC 200/240 V, 50/60 Hz
Power consumption:
Approx. 0.8 A
Operating temperature:
5°C to 40°C (41°F to 104°F)
Storage temperature:
-20°C to 55°C (-4°F to 131°F)
Dimensions:
424 (W) 3 88 (H) 3 283 (D) mm (16 3/4 3 3 1/2 3 11 1/4 inches)
Mass:
6.3 kg (13 lb 14 oz)
Input/Output connectors
VBS output:
BNC (2) 1.0 Vp-p, 75 ½
R/G/B output:
BNC (1) 0.7 Vp-p, 75 ½
Y/R-Y/B-Y output:
BNC (1), Y: 1.0 Vp-p, 75 ½, R-Y/B-Y: 0.525 Vp-p, 75 ½
Y/C output:
BNC (1) Y: 1.0 Vp-p, 75 ½, C: 0.3 Vp-p, 75 ½
SYNC output:
BNC (1), 0.3 Vp-p, 75 ½
SDI output:
BNC (2), 270 Mb/s, 0.8 Vp-p, 75 ½
S-Video output:
DIN 4-pin (1), Y: 1.0 Vp-p, 75 ½, C: 0.3 Vp-p, 75 ½
Monitor output:
BNC (1) VBS:1.0Vp-p, 75½
Mic output:
XLR 3-pin (1), 600½
Genlock input:
BNC (1), loop-through, VBS or BBS, 1.0 Vp-p, 75½
SDI input:
BNC (1), 270 Mb/s, 0.8 Vp-p, 75 ½
Return Video input:
BNC (1), loop-through, 1.0 Vp-p, 75 ½
Prompter Video input:
BNC (1), loop-through, 1.0 Vp-p, 75 ½
Camera:
Sony Z-type 26-pin (1)
Intercom/Tally:
D-sub 15-pin, 4W/2W selectable, R/G Tally, contact
Remote:
10-pin (1)
Supplied Accessories
AC power cord (1) Rack mount adaptor (2) Rack mount screw (4) Tally indication segment (1) Operation manual (1)
