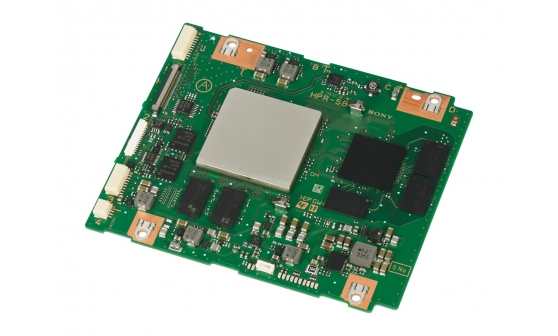

SONY ProRes and DNxHD codec board for PMW-F55 and PMW-F5 CineAlta cameras CBK-55PD

Add to Wishlist

Support for Apple ProRes 4444, 422 (HQ), 422 and DNxHD 220x and 145 at variety of frame rates

The CBK-55PD codec board provides additional support for Apple ProRes and DNxHD with the PMW-F55 and PMW-F5 CineAlta cameras. This includes ProRes 4444 12-bit Full HD at 23.98P, 24P, 25P and 29.97P. ProRes 422 (HQ), ProRes 422, DNxHD 220x and DNxHD 145 at a variety of frame rates are also supported.

CBK-55PD must be fitted at a Sony Service Centre (installation fee may apply). Firmware update V5.0 is also required.

ProRes 4444

Supports ProRes 4444 12-bit Full HD at 23.98P, 24P, 25P and 29.97P.

ProRes 422 (HQ) and ProRes 422

Supports ProRes 422 (HQ) 10-bit Full HD and ProRes 422 10-bit Full HD at 23.98P, 24P, 25P, 29.97P, 50i, 59.94i, 50P and 59.94P.

DNxHD 220x and DNxHD 145

Supports DNxHD 220x 10-bit Full HD and DNxHD 145 8-bit Full HD at 23.98P, 25P, 29.97P, 50i and 59.94i.

9,999.00 د.إ

Add to Wishlist

Codec Board supports ProRes 4444, ProRes 422 (HQ), ProRes 422, DNxHD 220x and DNxHD 145 at a variety of frame rates

The ProRes and DN x HD Codec Board from Sony provides additional support for Apple ProRes and DNxHD with the PMW-F55, PMW-F55LIVE, and PMW-F5 CineAlta cameras. This codec board supports ProRes 4444 12-bit Full HD, ProRes 422 (HQ) 10-bit Full HD, ProRes 422 10-bit Full HD, DNxHD 220x 10-bit Full HD, and DNxHD 145 8-bit Full HD at a variety of frame rates. Camera firmware update version 5.0 or higher is required.
The CBK-55PD Codec Board supports the following recordings with the PMW-F55 and PMW-F5 cameras: ProRes 4444 12-bit Full HD at 23.98P, 24P, 25P and 29.97P: ProRes 422 (HQ) 10-bit Full HD and ProRes 422 10-bit Full HD at 23.98P, 24P, 25P, 29.97P, 50i, 59.94i, 50P and 59.94P; DNxHD 220x 10-bit Full HD and DNxHD 145 8-bit Full HD at 23.98P, 25P, 29.97P, 50i and 59.94i.

NOTE: CBK-55PD must be fitted at a Sony Service Centre (installation fee may apply). Firmware update V5.0 is also required.

SKU: CBK-55PD Category: Tags: , , ,

Sony CBK-55PD Specs

Formats Supported ProRes 4444 12-bit Full HD @ 23.98P, 24P, 25P, 29.97P
ProRes 422 (HQ) 10-bit Full HD & ProRes 422 10-bit Full HD @ 23.98P, 24P, 25P, 29.97P, 50i, 59.94i, 50P, 59.94P
DNxHD 220x 10-bit Full HD & DN x HD 145 8-bit Full HD @ 23.98P, 25P, 29.97P, 50i, 59.94i
Compatibility CineAlta Camera Models:
PMW-F55
PMW-F5
PMW-F55LIVE
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 9.5 x 8 x 1.6″
