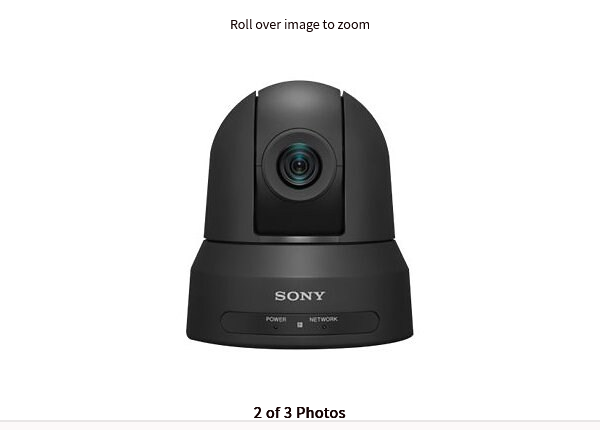

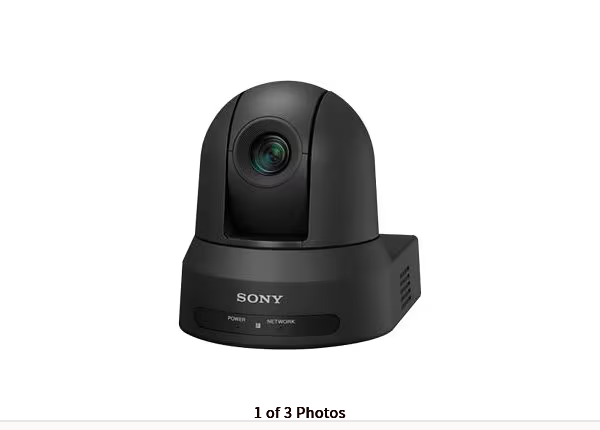

Sony SRG-X400 – conference camera – turret – with NDI|HX license


Quick tech specs

  • X400
  • PTZ
  • color (Day&Night)
  • 3840 x 2160
  • 1700 TVL
  • HDMI, 3G-SDI, NDI|HX
  • H.264, H.265
  • with NDI|HX license
  • Conference camera
  • turret
  • 8.5 MP
  • motorized
  • audio
  • LAN
  • DC 12 V / PoE Plus

AED22,099.00

The versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications – from classrooms and meeting spaces to houses of worship, lecture halls and medical environments.

The camera’s 1/2.5-type Exmor R CMOS sensor captures up to 4K resolution images (requires optional license) with excellent sensitivity, very low noise and rich, natural color reproduction. It’s complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD (30x in 4K), with an expansive approx. 70 degree wide angle coverage to capture every point of view.

High speed movement during preset recall captures the speaker’s every movement, while Picture Freeze during transitions ensures your audience isn’t disturbed by rapid camera movements. PTZ Motion Sync function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP (Real Time Messaging Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

SKU: SRGX400N/4L Category: Tag:
Category Details
Overview
Brand Sony
Product Line Sony
Model SRG-X400
Manufacturer Sony
Network & Communication
Network Interface LAN
Protocols ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, RTCP, RTP, RTSP, TCP/IP, UDP/IP, UPnP
Connectivity
Connectivity Technology Wired

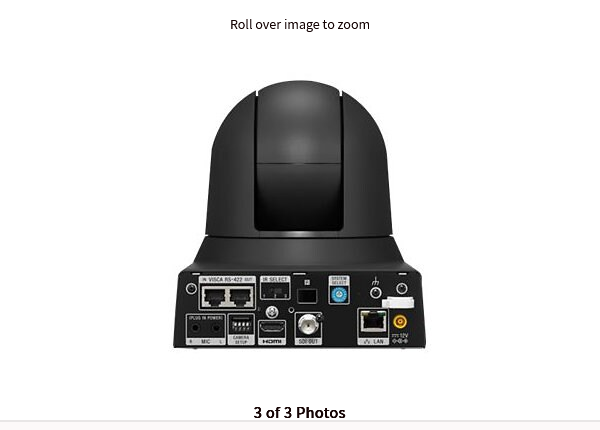

Ports 3G-SDI, Audio line-in/microphone – 3.5 mm jack, HDMI output, LAN/power – RJ-45, Serial RS-422 – RJ-45
Display & Graphics
Image Sensor Size 1/2.5″
Image Sensor Type Exmor R CMOS
Tilt -20 to +90
Video
Audio Formats AAC-LC
Audio Support Yes
Audio Support Features Two-way audio capability
Camera Mechanical Design Pan / tilt / zoom
Control Interface VISCA
Digital Video Capture Resolution 1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360, 720 x 480, 720 x 576
Digital Zoom 40
Horizontal Resolution (TV Lines) 1700
Max Frame Rate 59.94 frames per second
Max Panning Speed (degree/sec) 300
Max Tilting Speed (degree/sec) 126
Max Video Resolution 3840 x 2160
Panning Range (degree) -170 to +170
Shutter Speed (Max) 1/10000 second
Shutter Speed (Min) 1/1 second
Video Modes 1080/23.98p, 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 2160/23.98p, 2160/25p, 2160/29.97p, 720/50p, 720/59.94p
Video Signals 3G-SDI, HDMI, NDI
Camera
Camera Mount Type Ceiling mount
Camera Type Conference camera
Night Vision Yes
Power
Low Voltage Power DC 12 V / PoE Plus
Power Consumption Operational 25.5 watt
Power Device Type Power adapter
Technical Information
Angular Field of View (H, Min, Degree) 70
Focal Length Control Motorized zoom
Focus Modes Automatic, Manual
Form Factor Turret
Lens Aperture F/2.0-3.8
Max Focal Length 88 millimetre
Max Operating Temperature 104°F
Min Focal Length 4.4 millimetre
Min Focus Distance 3.1 inch
Min Operating Temperature 32°F
Minimum Illumination 1.6 lux F2.0 – 50 IRE – shutter 1/30 sec
Optical Zoom 20
Sensor Size (metric) 10.2 mm (1/2.5″)
Total Pixels 8,500,000 pixels
Video Formats H.264, H.265
Video Input Color
Product Information
Bundled With NDI
Features 100 preset positions, Auto gain control, Auto ICR, Clear Image Zoom, Constant Bit Rate (CBR), Flicker Cancel, Picture Freeze Preset, Picture Setting File, Remote standby, Standby mode, Tally light, Variable Bit Rate (VBR), Visibility Enhancer
Packaged Quantity 1
Included Items
Included Accessories 2 ceiling mount brackets, 9 screws M3x8, HDMI cable fixing plate, Power adapter, Remote control, Screw M2.6×6, Wire rope
Dimensions & Weight
Height 7 inch
Weight 3.97 lbs
Width 6.2 inch
Depth 7.9 inch
Physical Characteristics
Color Black
Certifications & Listings
Compliant Standards IEC 60130-10, IEEE 802.3at, JEIDA
EPEAT Compliant No
