Speco Technologies P16S182 16-Port 10/100Mb PoE+ Compliant Unmanaged Switch

Add to Wishlist
Key Features
  • 16 x 10/100 Mb/s Ethernet PoE+ Ports
  • 2 x Gigabit RJ45 Uplink Ports
  • 1 x Gigabit SFP Port
  • 9.2 Gb/s Switching Capacity
  • 6.844 Mpps Forwarding Rate
  • Desk & Rack Mountable
  • 280W Power Budget
  • DIP Switch Configuration
  • Fanless Cooling
  • Port Isolation & Extend Modes

AED2,299.00

Add to Wishlist

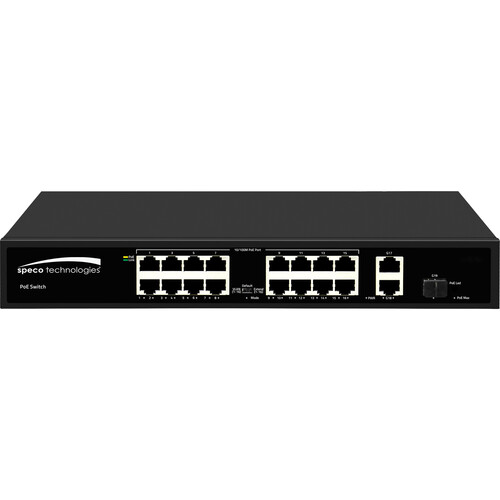

Speco Technologies P16S182 Overview

Operate your IP security cameras, access points, VoIP phones, and other PoE compatible devices with the P16S182 16-Port 10/100Mb PoE+ Compliant Unmanaged Switch from Speco Technologies. This entry level unmanaged switch features sixteen PoE+ compliant 10/100 Mb/s Ethernet ports, each capable of providing up to 30W to compatible devices with a total budget of 280W.

Use the physical DIP switches to enable Port Isolation and Extend modes for the main ports. This 1 RU rack mountable switch delivers smooth performance with a 9.2 Gb/s switching capacity and 6.844 Mpps forwarding rate. Two Gigabit speed RJ45 uplink ports are available alongside a 1 Gb/s SFP slot for fiber uplinks. Designed for harsh environments, the P16S182 can operate in 14 to 122°F temperatures while working silently in the background.

Port Isolation
Port Isolation (VLAN) mode prevents the ports from communicating with each other and can only communicate with the uplink ports.
Extend Mode
Enabling Link Extension (Extend) mode allows you to connect devices across distances of up to 820.2 feet, transferring power with 10 Gb/s data speeds.
SKU: P16S182 Category: Tag:
Key Specs
Inputs/Outputs
16x RJ45 10/100 Mb/s Ethernet PoE+ (30 W, 802.3at)
2x RJ45 Gigabit Ethernet
1x SFP Gigabit Ethernet
Stackable
No
Switching Bandwidth
9.2 Gb/s
PoE Power Budget
280 W
Stackable
No
Protocols
Supported Protocols
Auto-MDIX/MDI
Jumbo Frames Support
9216 Bytes
MAC Address Table Size
2K
Performance
Forwarding Rate
6.84 Mpps
Switching Bandwidth
9.2 Gb/s
Packet Buffer
1.5 Mb
Electrical
PoE per Port
30 W
PoE Power Budget
280 W

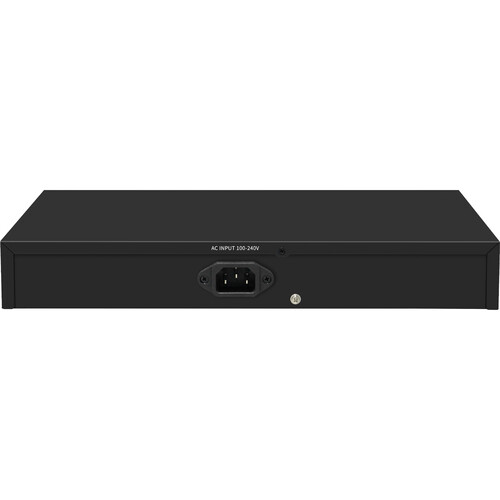

Input Power
100 to 240 VAC, 50 / 60 Hz
52 VDC at 5.76 A
Power Supply Type
Internal
General
Certifications
CE, FCC, RoHS
Operating Conditions
14 to 251°F / -10 to 122°C at 10 to 90% Humidity
Storage Conditions
-40 to 316°F / -40 to 158°C at 5 to 90% Humidity
Noise Level
0.0 dB
Cooling System
Passive
Mean Time Between Failures (MTBF)
100000.00 Million Hours
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
12.6 x 8.1 x 1.8″ / 319 x 207 x 45 mm
Weight
4 lb / 1.8 kg
