Model: SRX300-SYS-JB – Juniper SRX Series Service Gateways
Detail:
SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base



SRX300-SYS-JB Overview

SRX300-SYS-JB is a Juniper SRX300 Services Gateway including hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included. The SRX300 line of services gateways delivers a next-generation security, networking, and SD-WAN solution that helps you support the changing needs of your cloud-enabled enterprise network. Whether youā€™re rolling out new services and applications across multiple locations, connecting to the cloud, or improving operational efficiency, the SRX300 line provides scalable, secure, and easy-to-manage connectivity.

Quick Spec

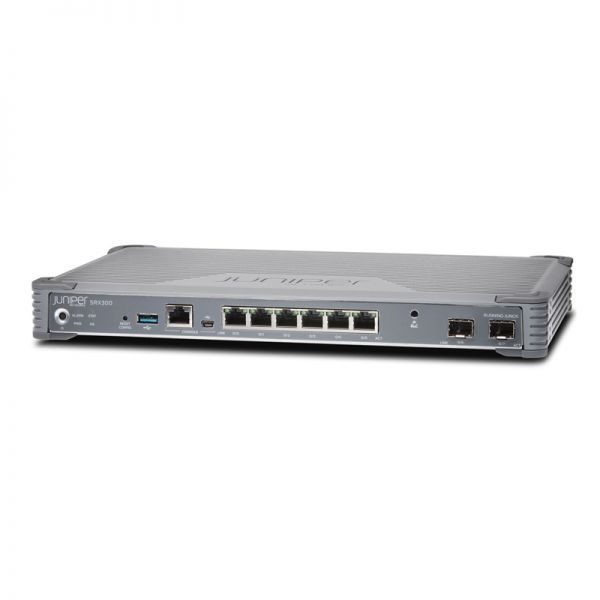

Figure 1 shows the appearance ofĀ SRX300-SYS-JB.

SRX300-SYS-JB
Table 1 shows the quick spec.

SKU SRX300-SYS-JB
Description SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included
Junos OS software version tested Junos OS 15.1X49
Firewall performance (max) 1 Gbps
IPS performance 100 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 250 Mbps
Maximum concurrent sessions 64,000
New sessions/second (sustained, TCP, 3-way) 5000
Maximum security policies 1000
Maximum security intelligence data feed entries in firewall rules database N/A

Product Details

Note:

ā‘  Power button ā‘£ USB port ā‘¦ 1 G Ethernet ports
ā‘” LEDs ā‘¤ Serial Console port ā‘§ ESD point
ā‘¢ Reset Config button ā‘„ Mini-USB console port ā‘Ø 1 G SFP ports

Note:

ā‘  Grounding point ā‘¢ Cable tie holder
ā‘” Lock ā‘£ Power supply input
Category: Tag:

SRX300-SYS-JB Specification

SRX300-SYS-JB Specification
Description SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included
Junos OS software version tested Junos OS 15.1X49
Firewall performance (max) 1 Gbps
IPS performance 100 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 250 Mbps
Maximum concurrent sessions 64,000
New sessions/second (sustained, TCP, 3-way) 5000
Maximum security policies 1000
Maximum security intelligence data feed entries in firewall rules database N/A
Total onboard ports 8x1GbE
Onboard RJ-45 ports 6x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 2x1GbE
MACsec-capable ports 2x1GbE
Out-of-band (OOB) management ports 0
Mini PIM (WAN) slots 0
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optional PoE+ ports N/A
System memory (RAM) 4 GB
Storage (flash) 8 GB
SSD slots 0
Form factor Desktop
Size (WxHxD) 12.63 x 1.37 x 7.52 in. (32.08 x 3.47 x 19.10 cm)
Redundant PSU No
Power supply AC (external)
Average power consumption 24.9 W
Average heat dissipation 85 BTU/h
Maximum current consumption 0.346 A
Airflow/cooling Fanless
Operational temperature -4Ā° to 140Ā° F (-20Ā° to 60Ā° C)
Nonoperational temperature 4Ā° to 158Ā° F (-20Ā° to 70Ā° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
