SRX320 – Juniper SRX Series Service Gateways

Add to Wishlist

SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP)

6,499.00 د.إ

Add to Wishlist

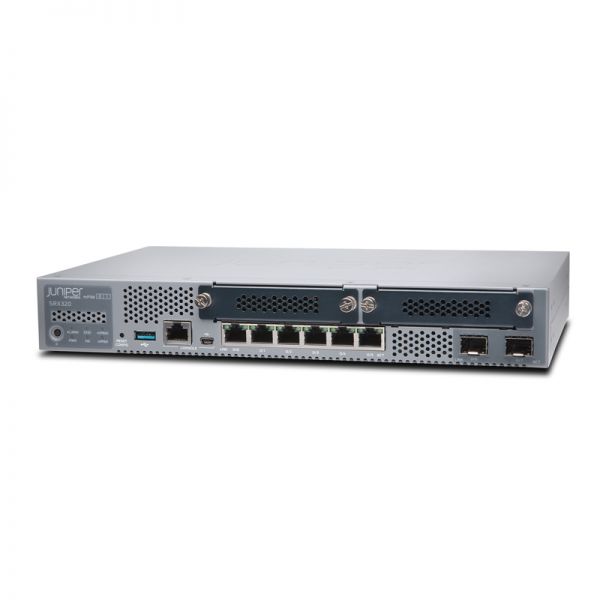

SRX320 Overview

SRX320 is a Juniper SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash and 2x MPIM slots, including external power supply and cable. RMK is not included. The SRX320 Services Gateway consolidates security, routing, switching, and WAN interfaces for small distributed enterprises. With advanced threat mitigation capabilities, the services gateway provides cost-effective and secure connectivity across distributed enterprises.

Quick Spec

Table 1 shows the quick spec.

SKU SRX320
Description SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash and 2x MPIM slots. Includes external power supply and cable. RMK not included
Junos OS software version tested Junos OS 15.1X49
Firewall performance (max) 1 Gbps
IPS performance 100 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 250 Mbps
Maximum concurrent sessions 64,000
New sessions/second (sustained, TCP, 3-way) 5000
Maximum security policies 1000
Maximum security intelligence data feed entries in firewall rules database N/A

Product Details

Note:

ā‘  Power button ā‘£ USB port ā‘¦ 1 G Ethernet ports
ā‘” LEDs ā‘¤ Console port ā‘§ 1 G SFP ports
ā‘¢ Reset Config button ā‘„ Mini-USB port ā‘Ø Mini-PIM slots

Note:

ā‘  Lock
ā‘” Grounding point
ā‘¢ Fans
ā‘£ Cable tie holder
ā‘¤ Power supply input
SKU: SRX320 Category: Tag:

SRX320 Specification

SRX320 Specification
Description SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash and 2x MPIM slots. Includes external power supply and cable. RMK not included
Junos OS software version tested Junos OS 15.1X49
Firewall performance (max) 1 Gbps
IPS performance 100 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 250 Mbps
Maximum concurrent sessions 64,000
New sessions/second (sustained, TCP, 3-way) 5000
Maximum security policies 1000
Maximum security intelligence data feed entries in firewall rules database N/A
Total onboard ports 8x1GbE
Onboard RJ-45 ports 6x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 2x1GbE
MACsec-capable ports 2x1GbE
Out-of-band (OOB) management ports 0
Mini PIM (WAN) slots 2
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optional PoE+ ports 6
System memory (RAM) 4 GB
Storage (flash) 8 GB
SSD slots 0
Form factor Desktop
Size (WxHxD) 11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm)
Redundant PSU No
Power supply AC (external)
Maximum PoE power 180 W
Average power consumption 46 W/221 W
Average heat dissipation 157 BTU/h/755 BTU/h
Maximum current consumption 0.634 A/2.755 A
Airflow/cooling Front to back
Operational temperature 32Ā° to 104Ā° F (0Ā° to 40Ā° C)
Nonoperational temperature 4Ā° to 158Ā° F (-20Ā° to 70Ā° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
