SRX340 – Juniper SRX Series Service Gateways

Add to Wishlist

SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM

13,399.00 د.إ

Add to Wishlist

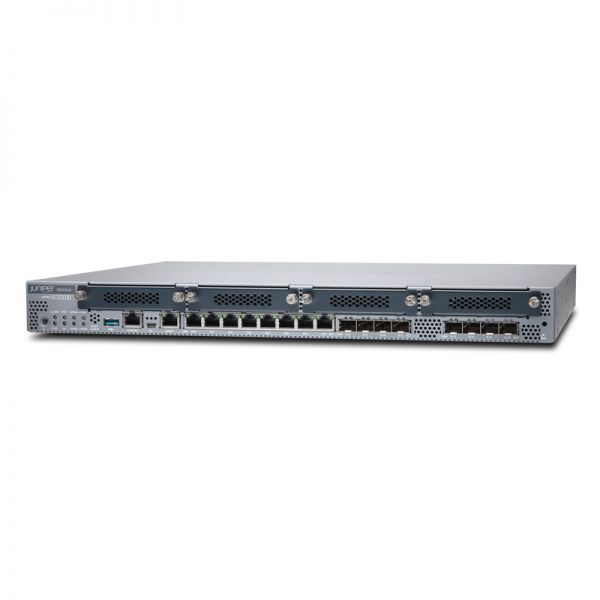

SRX340 Overview

SRX340 is a Juniper SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots, including internal power supply, cable and RMK. SRX340 Services Gateway chassis is a rigid sheet metal structure that houses all of the other services gateway components. The chassis measures 1.72 in. (4.36 cm) high, 17.36 in. (44.09 cm) wide, and 14.57 in. (37.01 cm) deep (from the front to the rear of the chassis). The chassis installs in standard 800ā€“mm (or larger) enclosed cabinets, 19 in. equipment racks, or telecommunications open-frame racks.

Quick Spec

Table 1 shows the quick spec.

SKU SRX340
Description SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots, including internal power supply, cable and RMK
Junos OS software version tested Junos OS 15.1X49
Firewall performance (max) 3 Gbps
IPS performance 250 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 500 Mbps
Maximum concurrent sessions 256,000
New sessions/second (sustained, TCP, 3-way) 10,000
Maximum security policies 2000
Maximum security intelligence data feed entries in firewall rules database N/A

Product Details

Note:

ā‘  Mini-PIM slots ā‘¤ USB port ā‘Ø 1 G Ethernet ports
ā‘” Power button ā‘„ Console port ā‘© 1 G SFP ports
ā‘¢ LEDs ā‘¦ Console port ā‘Ŗ ESD point
ā‘£ Reset Config button ā‘§ Management port

Note:

ā‘  SSD slot
ā‘” Fans
ā‘¢ Power supply input
SKU: SRX340 Category: Tag:

SRX340 Specification

SRX340 Specification
Description SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots, including internal power supply, cable and RMK
Junos OS software version tested Junos OS 15.1X49
Firewall performance (max) 3 Gbps
IPS performance 250 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 500 Mbps
Maximum concurrent sessions 256,000
New sessions/second (sustained, TCP, 3-way) 10,000
Maximum security policies 2000
Maximum security intelligence data feed entries in firewall rules database N/A
Total onboard ports 16x1GbE
Onboard RJ-45 ports 8x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 8x1GbE
MACsec-capable ports 16x1GbE
Out-of-band (OOB) management ports 1x1GbE
Mini PIM (WAN) slots 4
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optional PoE+ ports 0
System memory (RAM) 4 GB
Storage (flash) 8 GB
SSD slots 1
Form factor 1U
Size (WxHxD) 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm)
Redundant PSU No
Power supply AC (internal)
Maximum PoE power N/A
Average power consumption 122 W
Average heat dissipation 420 BTU/h
Maximum current consumption 1.496 A
Acoustic noise level 45.5 dBA
Airflow/cooling Front to back
Operational temperature 32Ā° to 104Ā° F (0Ā° to 40Ā° C)
Nonoperational temperature 4Ā° to 158Ā° F (-20Ā° to 70Ā° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
