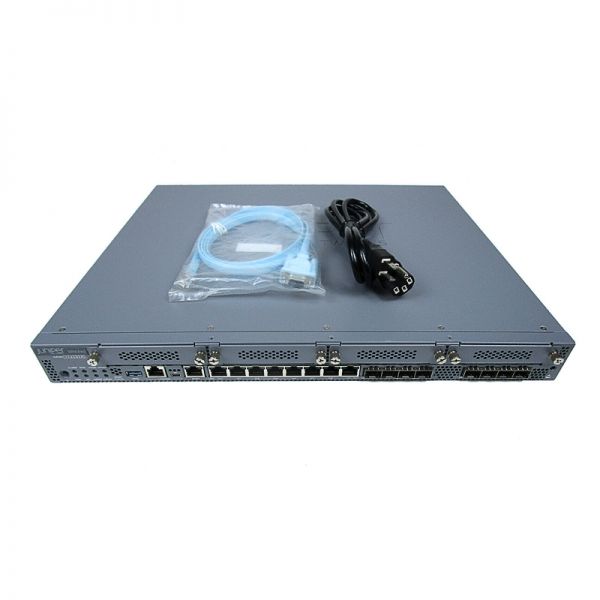

SRX340-SYS-JB is a SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). SRX340 Services Gateway chassis is a rigid sheet metal structure that houses all of the other services gateway components. The chassis measures 1.72 in. (4.36 cm) high, 17.36 in. (44.09 cm) wide, and 14.57 in. (37.01 cm) deep (from the front to the rear of the chassis). The chassis installs in standard 800āmm (or larger) enclosed cabinets, 19 in. equipment racks, or telecommunications open-frame racks.
Figure 1 shows the front panel of SRX340 Chassis.
Note:
ā | Mini-PIM slots | ⤠| USB port | ⨠| 1 G Ethernet ports |
ā” | Power button | ā„ | Console port | ā© | 1 G SFP ports |
⢠| LEDs | ⦠| Console port | ⪠| ESD point |
⣠| Reset Config button | ⧠| Management port |

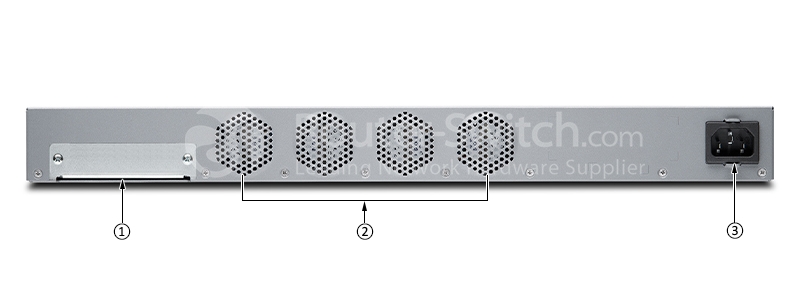

Figure 2 shows the rear panel of SRX340 Chassis.
Note:
ā | SSD slot |
ā” | Fans |
⢠| Power supply input |
Compare to Similar Items
Table 2 shows the comparison.
SKU |
SRX340 | SRX340-SYS-JB | SRX340-SYS-JE |
Description |
SRX340 (Hardware Only, require SRX340-JSB or SRX340-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots, including internal power supply, cable and RMK |
SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). |
SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). |
Junos OS software version tested |
Junos OS 15.1X49 |
Junos OS 15.1X49 |
Junos OS 15.1X49 |
Firewall performance (max) |
3 Gbps |
3 Gbps |
3 Gbps |
IPS performance |
250 Mbps |
250 Mbps |
250 Mbps |
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
500 Mbps |
500 Mbps |
500 Mbps |
Maximum concurrent sessions |
256,000 |
256,000 |
256,000 |
New sessions/second (sustained, TCP, 3-way) |
10,000 |
10,000 |
10,000 |
Maximum security policies |
2000 |
2000 |
2000 |
