| Model: | SRX340-SYS-JB – Juniper SRX Series Service Gateways |
| Detail: |
SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK)
|

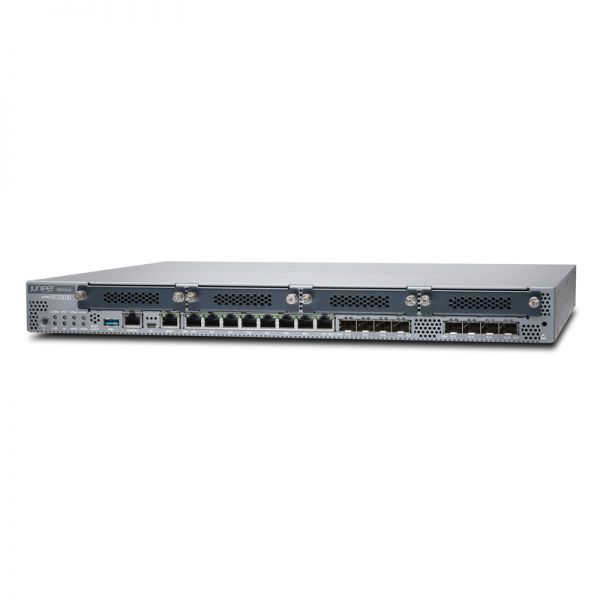

SRX340-SYS-JB Overview
SRX340-SYS-JB is a SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). SRX340 Services Gateway chassis is a rigid sheet metal structure that houses all of the other services gateway components. The chassis measures 1.72 in. (4.36 cm) high, 17.36 in. (44.09 cm) wide, and 14.57 in. (37.01 cm) deep (from the front to the rear of the chassis). The chassis installs in standard 800āmm (or larger) enclosed cabinets, 19 in. equipment racks, or telecommunications open-frame racks.
Quick Spec
Table 1 shows the quick spec.
| SKU | SRX340-SYS-JB |
| Description | SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 3 Gbps |
| IPS performance | 250 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 500 Mbps |
| Maximum concurrent sessions | 256,000 |
| New sessions/second (sustained, TCP, 3-way) | 10,000 |
| Maximum security policies | 2000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
Product Details
Note:
| ā | Mini-PIM slots | ā¤ | USB port | āØ | 1 G Ethernet ports |
| ā” | Power button | ā„ | Console port | ā© | 1 G SFP ports |
| ā¢ | LEDs | ā¦ | Console port | āŖ | ESD point |
| ā£ | Reset Config button | ā§ | Management port |
Note:
| ā | SSD slot |
| ā” | Fans |
| ā¢ | Power supply input |
SRX340-SYS-JB Specification
SRX340-SYS-JB Specification |
|
| Description | SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 3 Gbps |
| IPS performance | 250 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 500 Mbps |
| Maximum concurrent sessions | 256,000 |
| New sessions/second (sustained, TCP, 3-way) | 10,000 |
| Maximum security policies | 2000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 0 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 1 |
| Form factor | 1U |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) |
| Redundant PSU | No |
| Power supply | AC (internal) |
| Maximum PoE power | N/A |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Operational temperature | 32Ā° to 104Ā° F (0Ā° to 40Ā° C) |
| Nonoperational temperature | 4Ā° to 158Ā° F (-20Ā° to 70Ā° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
