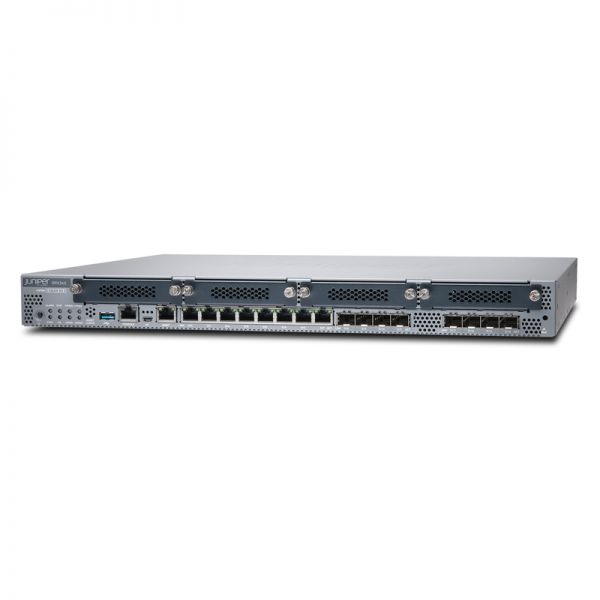

| Model: | SRX345-SYS-JE – Juniper SRX Series Service Gateways |
| Detail: |
SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK)
|
SRX345-SYS-JBĀ is a Juniper SRX345 Services Gateway includingĀ hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security).. The SRX345 Services Gateway consolidates security, routing, switching, and WAN interfaces for midsize distributed enterprises. With advanced threat mitigation capabilities, the services gateway provides cost-effective and secure connectivity across distributed enterprises. The services gateway simplifies network complexity, protects and prioritizes network resources, and improves user and application experience.
Table 1 shows the quick spec.
| SKU | SRX345-SYS-JE |
| Description | SRX345Ā Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 5 Gbps |
| IPS performance | 500 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 800 Mbps |
| Maximum concurrent sessions | 375,000 |
| New sessions/second (sustained, TCP, 3-way) | 20,000 |
| Maximum security policies | 4000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
Note:
| ā | Mini-PIM slots | ā¤ | USB port | āØ | 1 G Ethernet ports |
| ā” | Power button | ā„ | Console port | ā© | 1 G SFP ports |
| ā¢ | LEDs | ā¦ | Console port | āŖ | ESD point |
| ā£ | Reset Config button | ā§ | Management port |
Note:
| ā | SSD slot |
| ā” | Fans |
| ā¢ | Power supply input |
SRX345-SYS-JE Specification |
|
| Description | SRX345Ā Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 5 Gbps |
| IPS performance | 500 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 800 Mbps |
| Maximum concurrent sessions | 375,000 |
| New sessions/second (sustained, TCP, 3-way) | 20,000 |
| Maximum security policies | 4000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 0 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 1 |
| Form factor | 1U |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm) |
| Redundant PSU | Yes |
| Power supply | AC (internal) / DC (internal) |
| Maximum PoE power | N/A |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A / 6A @ -48 VDC12 |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Operational temperature | -22Ā° to 131Ā° F (-30Ā° to 55Ā° C) |
| Nonoperational temperature | 4Ā° to 158Ā° F (-20Ā° to 70Ā° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
