StarMicronicsTSP143IVDirectThermalReceiptPrinter,Auto-cutter,CompactDesign,High-Speed9.84″/sPrint,USB/Ethernet,Desktop/WallMount,Gray-39473010


  • High-speed thermal receipt printer with 9.84 in/s print speed and 203 dpi resolution

  • Advanced connectivity with USB, USB Host, and Ethernet interfaces for versatile integration

  • Professional guillotine auto-cutter with 2,000,000 cuts life expectancy and partial cut capability

  • Exceptional reliability with 60,000,000 MCBF and 100km print head life

  • Comprehensive software support including Windows, Mac, Linux drivers, and StarXpand SDK for mobile platforms

  • Compact design measuring 5.5″ (W) x 6.7″ (D) x 4.8″ (H), ideal for space-conscious environments

  • Internal power supply with USB Type-A power source for Android tablets

  • Supports multiple barcode formats including PDF417 and Maxi Code

  • Wide operating temperature range from 41°F to 113°F with 10–90% humidity tolerance

  • Complete package includes power cable, USB cable, LAN cable, mounting kits, and starter paper roll

AED2,099.00

Cloud-ReadyĀ ProfessionalĀ ReceiptĀ PrintingĀ withĀ ModernĀ Connectivity

The Star TSP100 series showcases its versatile front-facing design, highlighting the printer’s modern cloud connectivity capabilities and professional-grade construction. Built with both style and substance, this thermal printer combines high-speed performance of 250mm/second with elegant aesthetics suitable for any point-of-sale environment. The sleek black and gray two-tone design features Star’s signature angular housing that not only looks contemporary but also serves a practical purpose in optimizing paper roll access and receipt dispensing. The prominent TSP100 cloud branding and status indicator icons demonstrate the printer’s cloud-ready capabilities, making it ideal for businesses transitioning to modern cloud-based POS systems. The intuitive interface includes clearly marked LED indicators for power, error status, network connectivity, and data transmission, enabling quick status checks and troubleshooting.
Front view of Star TSP100 thermal receipt printer showing cloud-enabled interface and status indicators

Technical Specifications

  • High-speed printing at 250mm/second (43 receipts per minute)
  • Built-in USB and Ethernet interfaces with optional wireless connectivity
  • Advanced auto-cutter rated for 2 million cuts
  • Supports cloud-based POS applications and remote printing
  • Integrated power supply with additional USB charging port

Applications

  • Retail stores requiring fast, reliable receipt printing with cloud connectivity
  • Restaurants integrating online ordering systems with local printing
  • Service businesses needing professional-grade documentation
  • Mobile pop-up shops utilizing cloud-based POS systems

ErgonomicĀ DesignĀ withĀ AdvancedĀ PaperĀ Management

From this angle, the TSP100’s sophisticated paper management system takes center stage, showcasing the printer’s thoughtfully engineered design for maximum efficiency. The top-loading paper system features a wide-mouth opening and smooth guides that make paper roll changes quick and intuitive, minimizing downtime during peak business hours. The printer’s angular housing isn’t just about aesthetics – it’s carefully calculated to provide the optimal receipt presentation angle while protecting the printing mechanism. The detailed view highlights the printer’s robust construction, featuring a high-quality guillotine auto-cutter that ensures clean, professional cuts every time. The pronounced lid release mechanism and sturdy hinge system demonstrate Star’s commitment to durability, designed to withstand the demands of high-volume retail environments.
Side angle view of Star TSP100 printer highlighting paper loading system and auto-cutter mechanism

Technical Specifications

  • Drop-in paper loading system for quick media replacement
  • Guillotine auto-cutter with partial cut capability
  • Supports paper rolls up to 83mm width
  • Tool-free maintenance access
  • Ruggedized housing designed for commercial use

Applications

  • High-volume retail environments requiring quick paper changes
  • Fast-paced restaurants needing reliable receipt cutting
  • Busy service counters with frequent receipt printing needs
  • Self-service kiosks requiring minimal maintenance

PrecisionĀ EngineeringĀ forĀ ReliableĀ Performance

This detailed view of the TSP100’s paper path and cutting mechanism reveals the sophisticated engineering that makes it a leader in its class. The precision-crafted paper guide system ensures consistent paper alignment and smooth feeding, while the industrial-grade auto-cutter mechanism delivers clean, reliable cuts for professional-looking receipts. The textured surface treatment not only adds to the aesthetic appeal but also provides enhanced durability and scratch resistance. The printer’s internal components are protected by a robust housing design that facilitates proper heat dissipation while maintaining a compact footprint. The angular cuts and reinforced corners aren’t just design elements – they’re carefully planned features that enhance the printer’s structural integrity and longevity.
Close-up view of Star TSP100 printer's paper path and cutting mechanism showing precision engineering

Technical Specifications

  • Precision-engineered paper path for jam-free operation
  • Industrial-grade thermal print head with 203 DPI resolution
  • Advanced heat management system for continuous operation
  • Reinforced housing with scratch-resistant finish
  • 60 million MCBF reliability rating

Applications

  • 24/7 operation environments requiring consistent performance
  • Businesses with high-volume receipt printing needs
  • Applications requiring precise paper handling and cutting
  • Installations in challenging environmental conditions

VersatileĀ MountingĀ OptionsĀ withĀ EnhancedĀ Connectivity

The rear view of the TSP100 showcases its comprehensive connectivity options and versatile mounting capabilities. The printer’s thoughtfully designed back panel provides easy access to all interface ports while maintaining a clean, professional appearance. The integrated power supply eliminates the need for bulky external adapters, while the additional USB charging port offers convenient power delivery for mobile devices. This angle also highlights the printer’s vertical mounting capabilities, with pre-configured mounting points that support both horizontal and vertical orientations. The cable management system ensures a tidy installation, whether the printer is positioned on a counter, mounted under a desk, or attached to a wall, making it adaptable to various retail environments.

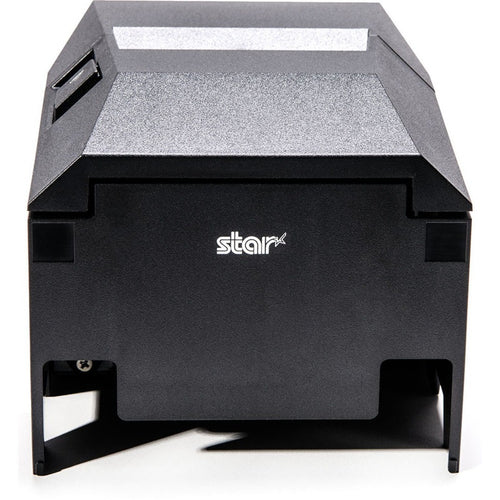

Rear view of Star TSP100 printer displaying mounting options and connectivity ports

Technical Specifications

  • Integrated power supply with USB device charging
  • Multiple interface options including USB and Ethernet
  • Versatile mounting options for horizontal and vertical installation
  • Advanced cable management system
  • Compatible with standard VESA mounting patterns

Applications

  • Space-constrained environments requiring vertical mounting
  • Mobile POS setups needing device charging capability
  • Multi-terminal installations with various mounting requirements
  • Kiosk integration projects requiring flexible positioning
SKU: 39473010 Category: Tag:

General Information

  • Manufacturer: Star Micronics, Inc

  • Manufacturer Part Number: 39473010

  • Brand Name: Star Micronics

  • Product Series: TSP143IV

  • Product Model: TSP143IVUE GRY US

  • Product Name: TSP143IV Thermal Receipt Printer

  • Product Type: Direct Thermal Printer

Technical Information

  • Recommended Use: Receipt Print

  • Print Color Capability: Monochrome

  • Maximum Mono Print Speed: 9.84 in/s

  • Maximum Print Resolution (dpi): 203

  • Barcode Symbology Supported: PDF417, Maxi Code

  • Application/Usage: Desktop

  • Features: Auto-cutter, Compact

  • Mean Cycles Between Failures (MCBF): 60,000,000

  • Character Sets: ANK 95

  • Print Head Life: 100km

  • Connectivity Technology: Wired

  • Optional Connectivity: Wireless LAN

  • Fonts Included: 12 x 24

Interfaces/Ports

  • USB Host: Yes

  • USB: Yes

Network & Communication

  • Ethernet: Yes

  • Ethernet Technology: Ethernet

Cutter

  • Cutter: Yes

  • Cutting Method: Automatic

  • Cutter Type: Guillotine

  • Cut Type: Partial Cut

  • Cutter Life: 2,000,000 Cuts

Media Types & Handling

  • Media Type: Receipt

  • Media Size: 3.15″

  • Media Sensor: Cover Open Sensor, Out Of Paper Sensor

  • Maximum Roll Diameter: 3.27″

  • Maximum Label Width: 3.15″

Software

  • Software Included:

    • Windows Drivers

    • OPOS Driver

    • JavaPOS Drivers (Windows/Mac/Linux)

    • CUPS Drivers (Mac/Linux)

    • StarXpand SDK (React Native, iOS, Android)

    • StarPRNT SDK (iOS/Android/Windows Desktop/UWP)

    • Star WebPRNT Browser (Android)

    • Star PassPRNT (iOS/Android/UWP)

    • CloudPRNT SDK

Power Description

  • Power Source: Internal Power Supply

Environmental Conditions

  • Operating Temperature: 41°F (5°C) – 113°F (45°C)

  • Operating Relative Humidity: 10% – 90%

  • Storage Temperature: -4°F (-20°C) – 140°F (60°C)

  • Storage Relative Humidity: 10% – 90%

Physical Characteristics

  • Form Factor: Wall Mount

  • Product Color: Gray

  • Height: 4.8″

  • Width: 5.5″

  • Depth: 6.7″

  • Weight (Approximate): 2.87 lb

Miscellaneous

  • Package Contents:

    • TSP143IV Thermal Receipt Printer

    • Internal Power Supply

    • Power Cable

    • USB Cable

    • LAN Cable

    • Complete Mounting Kits

    • Paper Roll

  • Cables Included: USB

  • Platform Supported: Mac, Android, PC, iOS

  • Certifications & Standards: UL, C-UL, TuV, FCC, VCCI, CE
