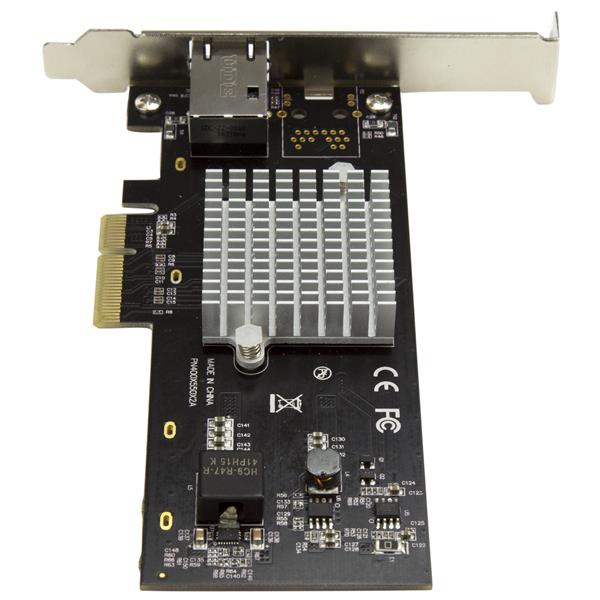

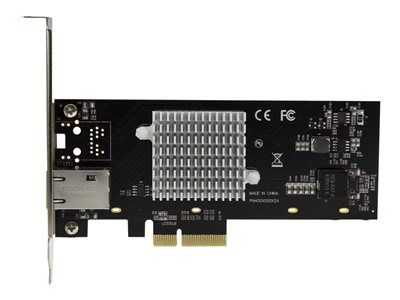

StarTech.com 1-Port 10Gb PCIe Network Card – PCI Express – Intel Chip


Upgrade your server or workstation to 10G networking over copper by adding a 10GBase-T/NBASE-T RJ45 port – 1-Port 10G Ethernet Network Card – PCI Express – 10GbE NIC w/ Intel X550-AT Chip – Multi-speed 10G/5G/2.5G/1G/100Mbps network adapter card – One-port PCI Express 10 Gigabit NIC with Intel chip – Features Intel Virtualization Technology for connectivity (Intel VT-c) – 10Gb Ethernet server adapter with up to 20Gbps (full duplex) bandwidth – Up to 15K jumbo frame support

1,899.00 د.إ

Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port. Here’s a powerful and cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computerĀ and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.

Reliable, high-performance connectivity

This 10G network card utilizes the Intel X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up toĀ 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.

The Intel X550-AT chipset provides many advanced features including Intel Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic,Ā to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support and Auto MDIX.

Cost-effective and versatile multimode connectivity

This five-speed NIC provides a cost-effective and versatile networking solution, by giving you the additional bandwidth your network needsĀ without having to overhaul your infrastructure wiring. It lets you add an Ethernet port which can be accessed at multiple speeds 10G, 5G, 2.5G 1G and 100Mbps.Ā Compatible with a broad range of operating systems,Ā the 10G NIC is fully compliant with 10GBase-T and NBASE-T specifications. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)

The PCIe 10G network card features advanced NBASE-T technology, supporting the latest multigigabit equipment, including new Cisco campus switches and Aruba Networks access points. The card enables you to connect toĀ NBASE-T based equipmentĀ at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6/Cat5e or better cabling.

Easy installation

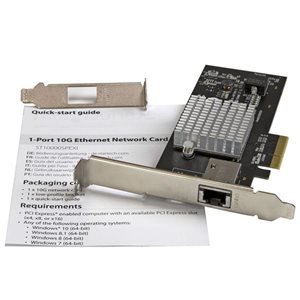

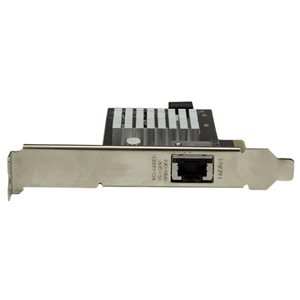

With itsĀ dual-profile design, the network cardĀ is easy to install into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, andĀ includes a low-profile/half-height installation bracket that you can use as needed.

The ST10000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port

  • Add a 10G /5G/2.5G/1G/100Mbps R-J45 Ethernet port to provide cost-effective network connectivity for high bandwidth workstations and servers
  • Compliant with 10GBase-T and NBASE-T specifications
  • Intel X550-AT chipset with Intel Virtualization Technology for connectivity (Intel VT-c)
  • Fully compliant with IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T)
  • Up to 20Gbps (full duplex) bandwidth
  • Up to 9K jumbo frame support
  • PXE network boot support and Auto MDIX
Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port
slide 1 of 5, show larger image, upgrade your server or workstation to 10g networking over copper, by adding a 10gbase-t / nbase-t rj45 port



slide 1 of 5, zoom in, upgrade your server or workstation to 10g networking over copper, by adding a 10gbase-t / nbase-t rj45 port
slide 2 of 5, zoom in, upgrade your server or workstation to 10g networking over copper, by adding a 10gbase-t / nbase-t rj45 port
slide 3 of 5, zoom in, upgrade your server or workstation to 10g networking over copper, by adding a 10gbase-t / nbase-t rj45 port
slide 4 of 5, zoom in, upgrade your server or workstation to 10g networking over copper, by adding a 10gbase-t / nbase-t rj45 port
slide 5 of 5, zoom in, upgrade your server or workstation to 10g networking over copper, by adding a 10gbase-t / nbase-t rj45 port
Reliable, high-performance connectivity

Reliable, high-performance connectivity

This 10G network card utilizes the IntelĀ® X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.
The Intel X550-AT chipset provides many advanced features including IntelĀ® Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support and Auto MDIX.
Cost-effective and versatile multimode connectivity

Cost-effective and versatile multimode connectivity

This five-speed NIC provides a cost-effective and versatile networking solution, by giving you the additional bandwidth your network needs without having to overhaul your infrastructure wiring. It lets you add an Ethernet port which can be accessed at multiple speeds 10G, 5G, 2.5G 1G and 100Mbps. Compatible with a broad range of operating systems, the 10G NIC is fully compliant with 10GBase-T and NBASE-Tā„¢ specifications. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)
The PCIe 10G network card features advanced NBASE-T technology, supporting the latest multigigabit equipment, including new CiscoĀ® campus switches and Aruba NetworksĀ® access points. The card enables you to connect to NBASE-T based equipment (with LinuxĀ® only) at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6/Cat5e or better cabling.
Easy installation

Easy installation

With its dual-profile design, the network card is easy to install into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
The ST10000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port

Applications

  • Upgrade your server or workstation to provide enhanced performance, advanced features and greater reliability
  • Upgrade a 10/100/1000 Ethernet port on your computer to 10GbE networking
  • Ideal for high-demand database servers and mission-critical systems that need redundant network connectivity
  • Add networking capabilities to an old system with no Ethernet port
Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port
SKU: ST10000SPEXI Category: Tag:
Category Specification
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 2.0
Networking
Ports 10Gb Ethernet x 1
Connectivity Technology Wired
Cabling Type Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Performance
Bandwidth (full duplex) 20 Gbps
Capacity
Jumbo Frame Size 9000
Features Flow control, full duplex mode, Jumbo Frames support, PXE support, tagged VLAN
Compliant Standards IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an
Processor / Memory
Processor Intel X550-AT
Expansion / Connectivity
Interfaces 1 x 10GBase-T – RJ-45
Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards FCC, RoHS
Color Black
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows Server 2008 R2 x64 Edition, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, VMware ESXi 5.5, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), VMware ESXi 6.0, Microsoft Windows Server 2016 (64-bit), Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 (64-bit)
Dimensions & Weight
Width 2.7 in
Depth 6 in
Height 4.8 in
Weight 3.59 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 – 80%
Compatibility Information
Designed For P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
