StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Ethernet/LAN/Network Interface Card for PC

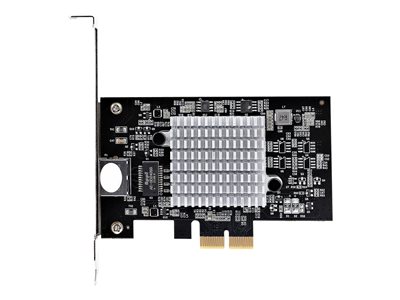

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card – Network Card for PC/Server – Low Profile PCIe Ethernet Card w/Jumbo Frame Support – NIC/LAN Interface Card – Marvell AQC113CS Chipset – PXE Boot (ST10GSPEXNB2) – Network adapter – PCIe 3.0 x2 – 10 Gigabit Ethernet x 1 – black
AED999.00
Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco ; HPE ; and Aruba .
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Increased Network Speeds
This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content. NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.
Enhance Existing Hardware

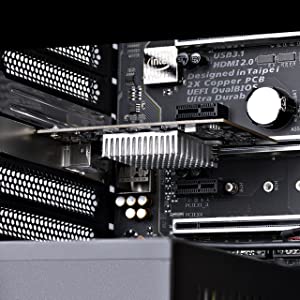

The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.
| Category | Attribute | Details |
|---|
| General | Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x2 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Networking | Ports | 10 Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | NBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Status Indicators | Link/activity |
| Features | Full duplex capability, secure boot, EEE, 16 KB Jumbo Frame, VLAN Tagging, AVB, Auto MDIX, PXE boot |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE P802.3az |
| Processor / Memory | Processor | 1 x Marvell AQC113CS |
| Expansion / Connectivity | Interfaces | 1 x 100M/1G/2.5/5/10 Gigabit Ethernet – RJ-45 |
| Miscellaneous | Included Accessories | Low-profile bracket |
| Compliant Standards | RoHS, RCM |
| Color | Black |
| Software / System Requirements | OS Required | Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only |
| Dimensions & Weight | Width | 0.6 in |
| Depth | 4.2 in |
| Height | 2.2 in |
| Weight | 2.57 oz |
| Dimensions & Weight (Shipping) | Shipping Width | 1.4 in |
| Shipping Depth | 8.3 in |
| Shipping Height | 5.7 in |
| Shipping Weight | 5.33 oz |
| Environmental Parameters | Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
