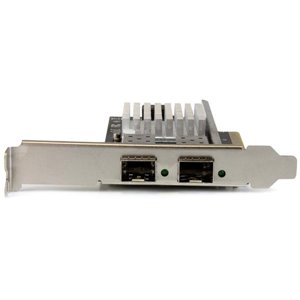

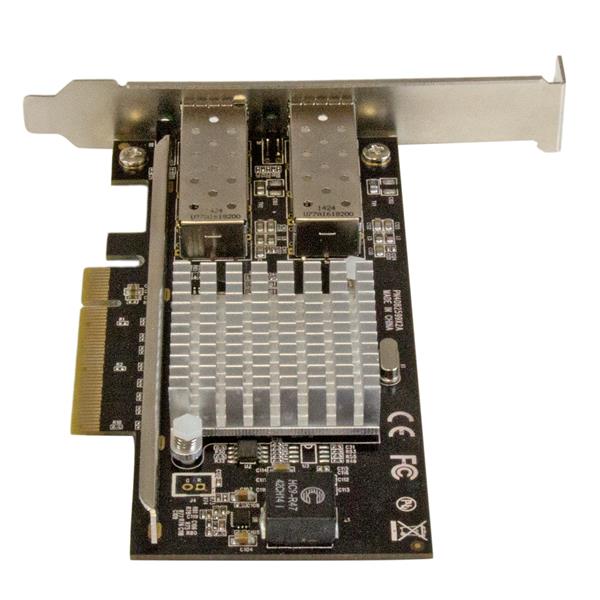

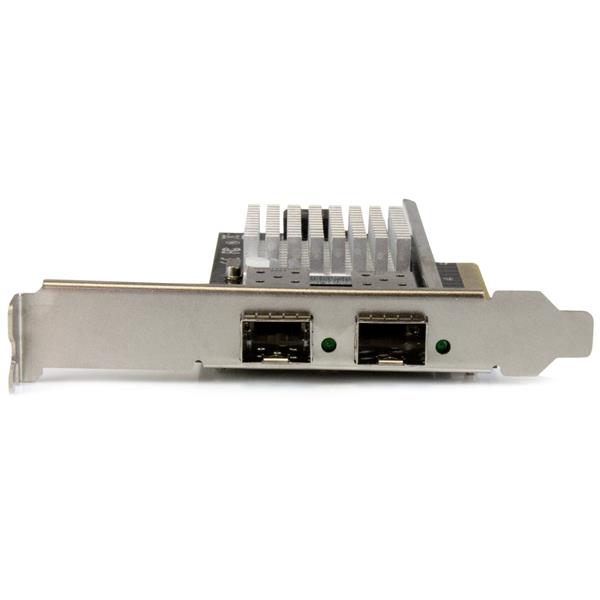

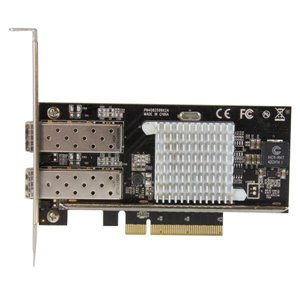

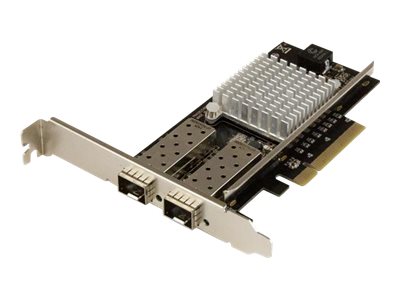

StarTech.com 10Gb SFP+ Network Card – 2-Port – Fiber – PCIe, Intel Chip
Add two 10GbE SPF+ slots to server or workstation for fast high-bandwidth connectivity – 2-port 10G fiber network card with open SFP+ – PCIe x2 10G NIC with Intel 82599 chipset – 10Gb fiber Ethernet adapter with Intel Virtualization Technology for connectivity – Cost-effective fiber network card supports data transfers at up to 10Gbps per port (up to 20Gbps per port in full-duplex mode) – PXE network boot support
2,199.00 د.إ
Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation – using the SFP+ transceiver of your choice. Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.
Transfer files at faster speeds
Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.
Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.
The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the SFP10GSRST” text=”StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com provide a dependable solution for linking telecom and data communications equipment, such as routers and switches, in Gigabit Ethernet and fibre channel applications.
Enhance your network capabilities
The 10 Gigabit network card features the Intel 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.
The PEX20000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation – using the SFP+ transceiver of your choice
- Add two 10GbE SPF+ slots to server or workstation for fast, high bandwidth connectivity
- Intel 82599 chipset with Intel® Virtualization Technology for connectivity
- Up to 20Gbps (full duplex) bandwidth per port
- PXE network boot support
- Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM)
- Compliant with PCI Express Rev 2.0 specification, using PCIe x8 (or higher) slot
- Supports IEEE 802.1Q VLAN tagging
- Support for 802.3ad Link Aggregation
- Up to 15K jumbo frame support
- Dual profile (LP bracket included)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Transfer files at faster speeds
Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.
Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.
Enhance your network capabilities
The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.
Applications
- Add 10Gbps network connectivity to file or application servers and high-performance workstations
- Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
- Supports secure setups – a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
- Create a video / audio editing console with 10Gbps access to network storage
- Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance
| Category | Specification |
|---|
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Networking |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-LR, Ethernet 10GBase-SR, Ethernet 10GBase-LRM |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Performance |
| Forwarding performance | 20 Gbps (full duplex) |
| Capacity | Jumbo frame size: 15000 |
| Features | Full duplex capability, Jumbo Frames support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae |
| Processor / Memory |
| Processor | Intel 82599 |
| Expansion / Connectivity |
| Interfaces | 2 – SFP+ |
| Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Software / System Requirements |
| OS Required | Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 – 4.11.x LTS versions, Microsoft Windows Server 2019 (64-bit) |
| Dimensions & Weight |
| Width | 0.7 in |
| Depth | 5.3 in |
| Height | 4.7 in |
| Weight | 3.6 oz |
| Service & Support | Limited warranty – 2 years |
| Environmental Parameters |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 – 80% (non-condensing) |
| Compatibility Information |
| Designed For | P/N: 455883B21ST, BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ET10GSFP, EXSFP10GELRS, EXSFP10GESRS, J9150AST, J9151AST, J9152AST, JD094BST, MASFP10GBLR, MASFP10GBSR, SFP10GBBXDST, SFP10GBBXUST, SFP10GBERST, SFP10GBLRMST, SFP10GBLRST, SFP10GBSRST, SFP10GBZRST, SFP10GERST, SFP10GLRMST, SFP10GLRSST, SFP10GLRST, SFP10GLRSTTA, SFP10GSRSST, SFP10GSRST, SFP10GSRSTTA, SFP10GSRXST, TB31PCIEX16 |
