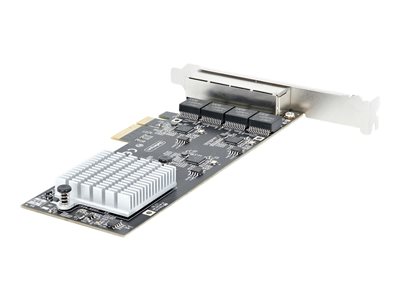

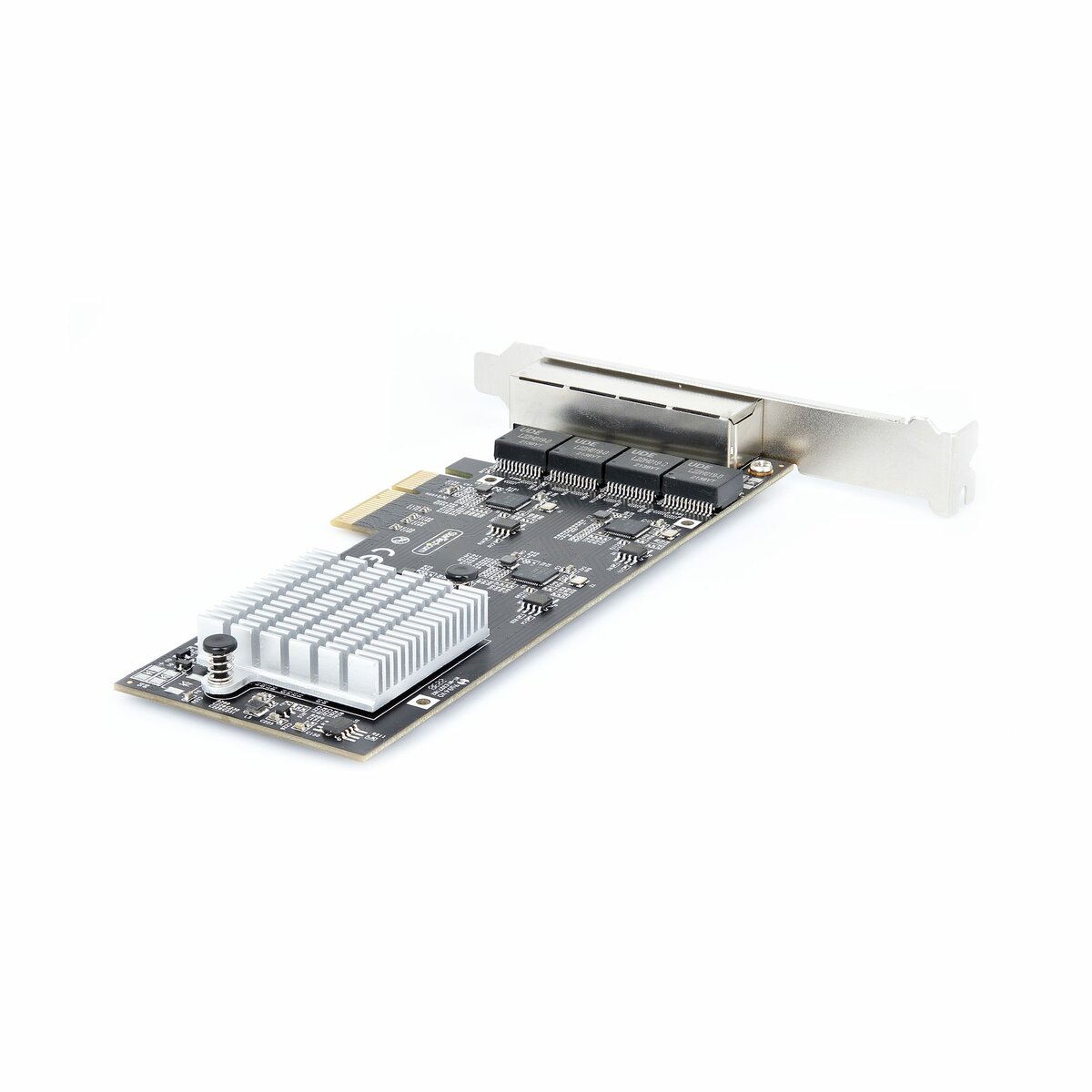

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Computer Network Card, Ethernet Interface

Add to Wishlist

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card – Intel I225-V Chip – Quad Port Computer Network Card – Multi-Gigabit NIC – PCI Express Server LAN Card – Desktop Ethernet Interface Card – PCI Express 2.0 (PR42GI-NETWORK-CARD) – Network adapter – PCIe 2.0 x4 – 10M/100M/1G/2.5 Gigabit Ethernet x 4 – black

AED1,199.00

Add to Wishlist

This quad-port 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

4-Port 2.5Gbps NBASE-T PCIe Network Card, Quad Ethernet Card

slide 6 of 10, show larger image, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 1 of 10, show larger image, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card



slide 1 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 2 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 3 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 4 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 5 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 6 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 7 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card
slide 8 of 10, zoom in, 4-port 2.5gbps nbase-t pcie network card, quad ethernet card



This quad-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content – while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, four Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

The network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

SKU: PR42GI-NETWORK-CARD 1 Category: Tag:
Category Attribute Details
General Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x4
PCI Specification Revision PCIe 2.0
Networking Ports 10M/100M/1G/2.5 Gigabit Ethernet x 4
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Data Transfer Rate 2.5 Gbps
Capacity Jumbo frame size: 9000
Status Indicators Link/activity, link/speed
Features Full duplex capability, auto-negotiation, VLAN support, WOL, VLAN Tagging, Intel vPro Technology support, Auto MDIX, PXE boot, bus powered
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.1as, IEEE 802.3bz, IEEE P802.3az
Processor / Memory Processor Intel I225-V
Expansion / Connectivity Interfaces 4 x 2.5 GBase-T – RJ-45
Miscellaneous Included Accessories Low-profile bracket
Compliant Standards FCC, WEEE, IEEE 1588
Color Black
Software / System Requirements OS Required Microsoft Windows Server 2019, VMware ESXi 7.0, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 5.8.x or later (LTS versions only)
Dimensions & Weight Width 0.9 in
Depth 7.1 in
Height 4.7 in
Weight 3.53 oz
Dimensions & Weight (Shipping) Shipping Weight 4.59 oz
Environmental Parameters Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 90% RH
