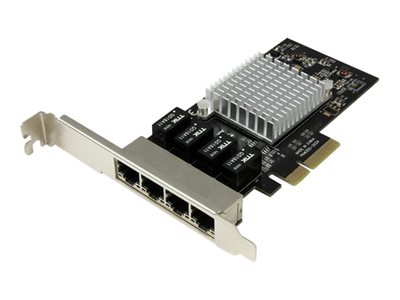

StarTech.com 4-Port Gigabit Network Card – PCIe Network Card, Intel I350


Add four Gigabit Ethernet ports to server or workstation through a single PCI Express slot – 4-port Gigabit Ethernet network card with Intel I350-AM4 Chipset – Quad-port network adapter card with Intel Chipset and Intel Virtualization Technology – 4-port Ethernet network adapter card – PCIe 10/100/1000 Network Card – PXE network boot support – Auto MDIX and Auto Negotiation Support – Wake-on-LAN – 9K jumbo frame support

1,199.00 د.إ

Add four Gigabit Ethernet ports to a client, server or workstation through a single PCI Express slot. Here’s a dependable and cost-effective way to add four high-performance Gigabit Ethernet ports to your server or desktop computer, through one PCI Express slot.

Reliable network connectivity with high performance

This Gigabit Ethernet network card features the Intel I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options includingĀ IEEE 802.3ad link aggregation / teaming support, which enablesĀ you to add additional bandwidth to your system.

Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) – up to ten times faster than 10/100 Ethernet.

Cost-effective access to multiple networks

The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives youĀ four redundant, independent Gigabit Ethernet portsĀ and it supports advanced features such as Jumbo Frames and VLAN tagging.

Enhanced versatility and efficiency

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications – including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs.Ā The 4-port Gigabit network card is equipped with Intel Virtualization TechnologyĀ for Connectivity (Intel VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center.

With aĀ dual-profile design, the PCI Express network cardĀ installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST4000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

SKU: ST4000SPEXI Category: Tag:
Category Specification
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express x4
Networking
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Performance
Forwarding performance 2 Gbps (full duplex)
Capacity
Jumbo frame size 9000
Status Indicators Port status, link/activity
Features Full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Processor / Memory
Processor Intel I350-AM4
Expansion / Connectivity
Interfaces 4 x network – RJ-45
Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards FCC, RoHS
Color Black
Power
Power Consumption Operational 4.4 Watt
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Dimensions & Weight
Width 0.7 in
Depth 5.2 in
Height 4.7 in
Weight 3.35 oz
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 – 80%
Compatibility Information
Designed For P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
