StarTech.com 8-Port PCI Express RS232 Serial Adapter Card – PCIe Serial DB9 Controller – 15kV ESD


StarTech.com 8-Port PCI Express RS232 Serial Adapter Card – PCIe RS232 Serial Card – 16C1050 UART – Low Profile Serial DB9 Controller/Expansion Card – 15kV ESD Protection – Windows/Linux – Full Profile Bracket Incl – Serial adapter – PCIe low profile – RS-232 x 8 – yellow – TAA Compliant

AED1,099.00

Low Profile Serial Card Full Profile Brackets Incl 921.4Kbps Windows and Linux . Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.Connect your Peripherals with 8 Serial PortsThe PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables – each with 4 DB9 connectors.Versatile UseThe low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.PEX8S1050LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Product image
slide 1 of 7, show larger image, product image



slide 1 of 7, zoom in, product image
slide 2 of 7, zoom in, product image
slide 3 of 7, zoom in, product image
slide 4 of 7, zoom in, product image
slide 5 of 7, zoom in, product image
slide 6 of 7, zoom in, product image
slide 7 of 7, zoom in, product image

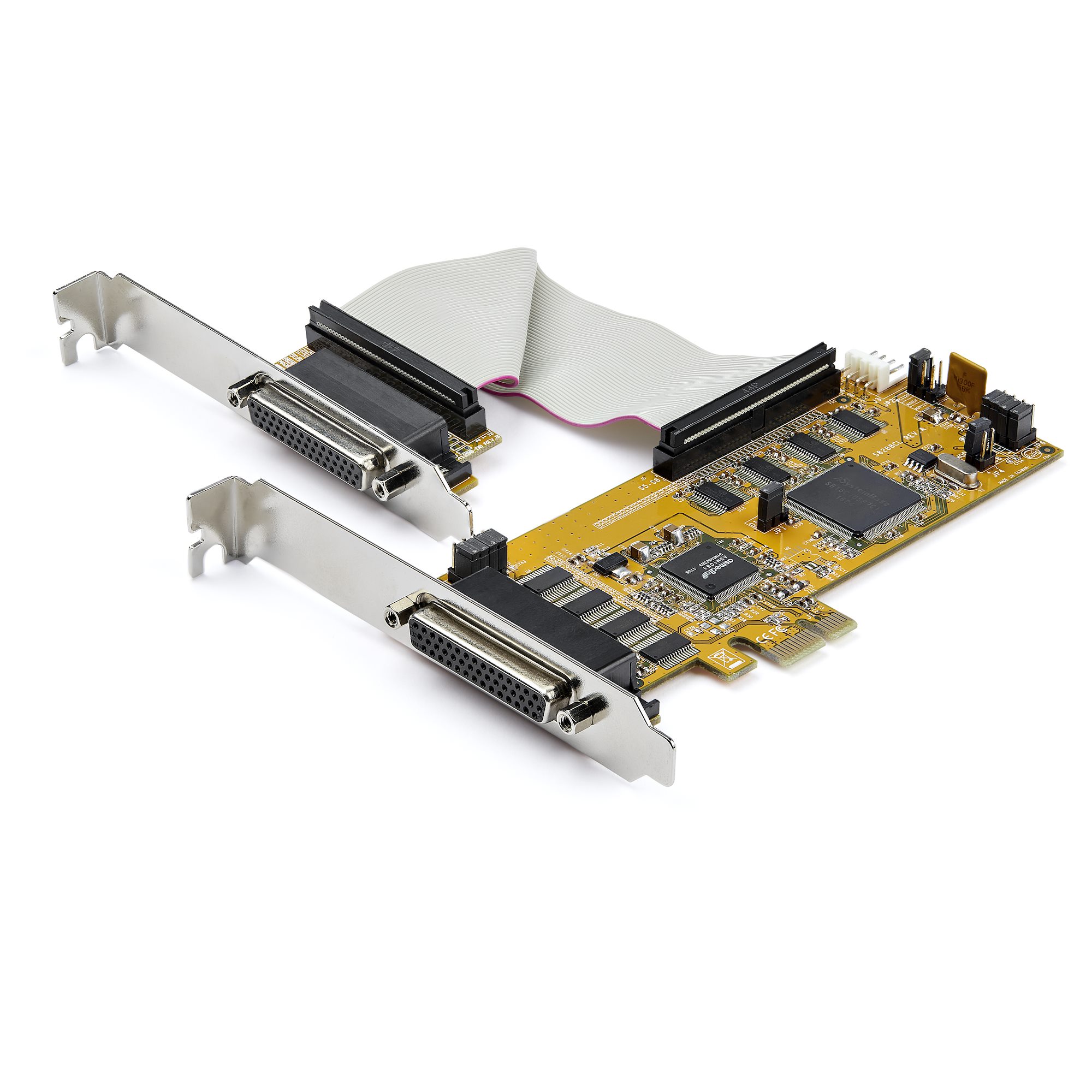

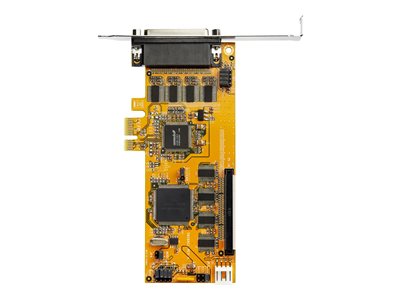

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4 Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables – each with 4 DB9 connectors.

Versatile Use

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.

PEX8S1050LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Product image
SKU: PEX8S1050LP 1 Category: Tag:
Category Attribute Details
General Device Type Serial adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express
Networking Ports RS-232 x 8
Connectivity Technology Wired
Cabling Type Serial RS-232
Features 16550 UART support, 256-byte FIFO
Processor / Memory Processor ASMedia ASM1083
Expansion / Connectivity Interfaces 8 x RS-232 – 9 pin D-Sub (DB-9)
Miscellaneous Included Accessories Full-height bracket
Compliant Standards FCC, RoHS, WEEE, REACH
Color Yellow
TAA Compliant Yes
Software / System Requirements OS Required Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Dimensions & Weight Width 2.6 in
Depth 5.6 in
Height 0.8 in
Weight 4.23 oz
Dimensions & Weight (Shipping) Shipping Width 11.4 in
Shipping Depth 7.6 in
Shipping Height 2.8 in
Shipping Weight 24.69 oz
Environmental Parameters Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 95%
