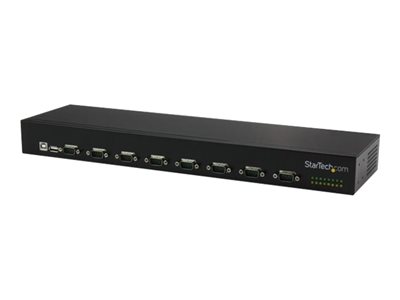

StarTech.com 8 Port USB to Serial Adapter Hub – USB to RS232 Daisy Chain


StarTech.com USB to Serial Hub – 8 Port – COM Port Retention – Rack Mount and Daisy Chainable -ftDI USB to RS232 Hub (ICUSB23208FD) – Serial adapter – USB 2.0 – RS-232 x 8 – black

AED1,599.00

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

8 Port USB to Serial Adapter Hub – USB to RS232 Daisy Chain (ICUSB23208FD)

slide 1 of 4, show larger image, 8 port usb to serial adapter hub - usb to rs232 daisy chain (icusb23208fd)



slide 1 of 4, zoom in, 8 port usb to serial adapter hub - usb to rs232 daisy chain (icusb23208fd)
slide 2 of 4, zoom in, 8 port usb to serial adapter hub - usb to rs232 daisy chain (icusb23208fd)
slide 3 of 4, zoom in, 8 port usb to serial adapter hub - usb to rs232 daisy chain (icusb23208fd)
slide 4 of 4, zoom in, 8 port usb to serial adapter hub - usb to rs232 daisy chain (icusb23208fd)
This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs

This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience

The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.

Meets the demands of industrial environments

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

SKU: ICUSB23208FD 1 Category: Tag:
General
Device Type Serial adapter
Form Factor External
Interface (Bus) Type USB 2.0
Networking
Ports RS-232 x 8
Connectivity Technology Wired
Data Link Protocol RS-232
Status Indicators Status
Expansion / Connectivity
Interfaces 8 x RS-232 – 9 pin D-Sub (DB-9) (male) ¦ 1 x USB – 4 pin USB Type B
Miscellaneous
Included Accessories 2 rack mount brackets, 4 x nuts, rack mounting screws, DIN rail mounting screws, 2 DIN rail mounting brackets, 4 washers, terminal block plug, power adapter
Cables Included 1 x USB cable (external) – 3 ft
Compliant Standards FCC, RoHS
Color Black
Power
Voltage Required AC 120/230 V
Power Consumption Operational 36 Watt
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x or later, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 – 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Dimensions & Weight
Width 4.7 in
Depth 16.9 in
Height 1.8 in
Weight 3.09 lbs
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 185 °F
Humidity Range Operating 20 – 80% (non-condensing)
