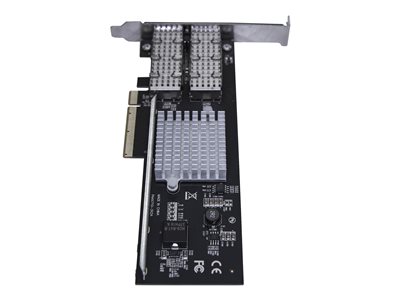

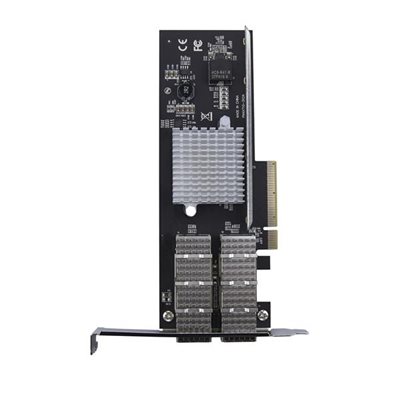

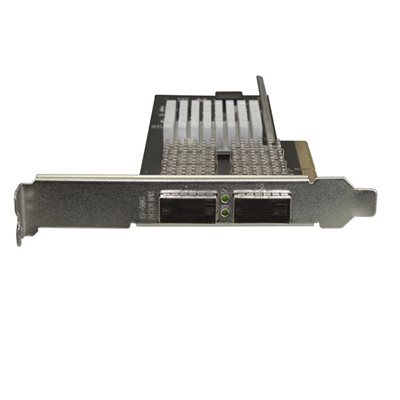

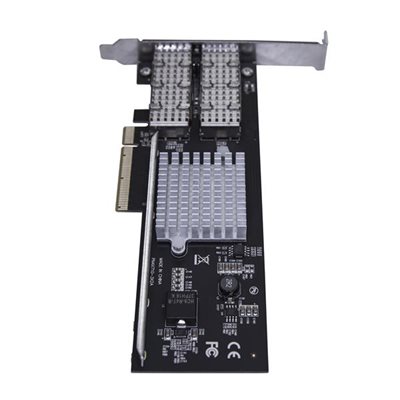

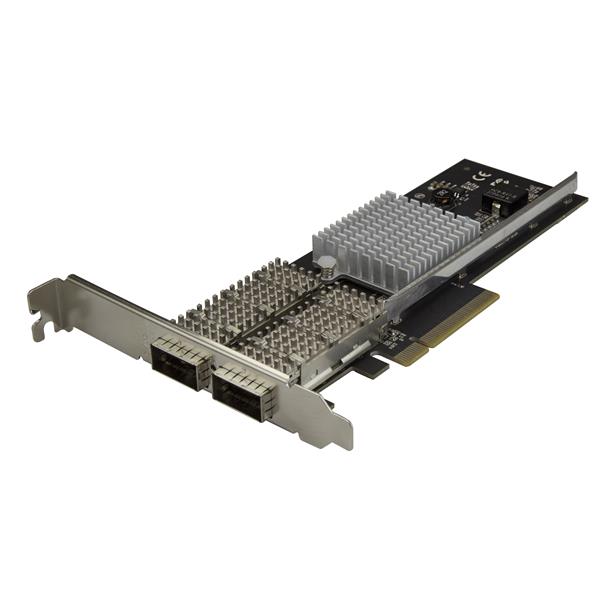

StarTech.com Dual Port 40G QSFP+ Network Card – Intel XL710 Converged Adapter PCIe 40 Gigabit Fiber


StarTech.com Dual Port 40G QSFP+ Network Card – Intel XL710 Open QSFP+ Converged Adapter – PCIe 40 Gigabit Ethernet Server NIC – 40GbE Fiber Optic LAN Card – Dell PowerEdge HPE ProLiant – 40Gb – Network Interface Card – Network adapter – PCIe – 40 Gigabit QSFP+ x 2

AED3,099.00

Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice

Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

Increase your network speed

This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.

Add redundant connections in zero-downtime environments

With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

Add scalable network connections

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

Enhance your network capabilities

The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Mac Address Pass-Through Utility : To improve network security.

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice

  • Add two open 40G QSFP+ slots to your server or workstation for fast, high-bandwidth connectivity
  • Provides redundant network links to mission-critical systems
  • Compatible with multimode and single-mode fiber
  • Intel XL710-BM2 chipset with Intel Virtualization Technology for Connectivity, intelligent offloads and iSCSI / NFS storage over Ethernet
  • Compliant with PCI Express 3.0 specification, using PCIe x8 (or higher) slot
  • Supports IEEE 802.1Q VLAN tagging, IPv4, and IPv6
  • Dual profile with both low-profile and full-profile brackets included, plus link/activity indicator
Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
slide 1 of 4, show larger image, add two high-bandwidth 40 gigabit fiber ethernet ports to your server or workstation, using the qsfp+ transceiver of your choice



slide 1 of 4, zoom in, add two high-bandwidth 40 gigabit fiber ethernet ports to your server or workstation, using the qsfp+ transceiver of your choice
slide 2 of 4, zoom in, add two high-bandwidth 40 gigabit fiber ethernet ports to your server or workstation, using the qsfp+ transceiver of your choice
slide 3 of 4, zoom in, add two high-bandwidth 40 gigabit fiber ethernet ports to your server or workstation, using the qsfp+ transceiver of your choice
slide 4 of 4, zoom in, add two high-bandwidth 40 gigabit fiber ethernet ports to your server or workstation, using the qsfp+ transceiver of your choice
Add redundant connections in zero-downtime environments

Add redundant connections in zero-downtime environments

With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

Add scalable network connections

Add scalable network connections

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

Enhance your network capabilities

Enhance your network capabilities

The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Applications

  • Add ultra-fast 40Gbps network connectivity to database, file or application servers and high-performance workstations
  • Transmit full 40Gpbs network speeds to a remote terminal over longer distance than copper cabling
  • Ideal for agile and high-demand data centers that require data security, no downtime, and infrastructure updates
  • Supports secure setups – a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Create a video/audio editing console with 40Gbps access to network storage
  • Ideal for remote embedded industrial monitoring system, and high-speed video surveillance
SKU: PEX40GQSFDPI Category: Tag:
Category Details
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express
Networking
Ports 40 Gigabit QSFP+ x 2
Connectivity Technology Wired
Data Link Protocol 40 Gigabit Ethernet
Data Transfer Rate 40 Gbps
Processor / Memory
Processor Intel XL710
Expansion / Connectivity
Interfaces 2 x 40Gb Ethernet – QSFP+
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 – 4.11.x (64-bit) LTS versions, Microsoft Windows Server 2019 (64-bit)
