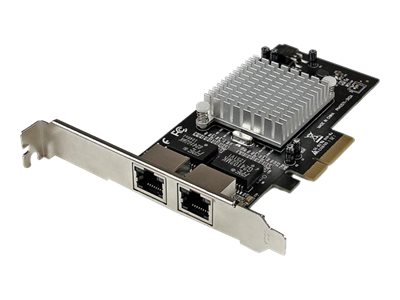

StarTech.com Dual Port Gigabit PCIe Network Card w/ Intel i350 Chip
Add dual Gigabit Ethernet ports to a client server or workstation through a PCI Express slot – Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter – Intel i350 Chipset NIC – 2 Port GbE Network Card – Dual NIC Ethernet Card – Standard Profile Bracket and Low-Profile/Half-Height Bracket Included
999.00 د.إ
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot. The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
StarTech.com Dual Port PCI Express Gigabit Network Card w/ Intel i350 Chip
- Double the network bandwidth to a single system through link aggregation / teaming support
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize your virtualized server networking efficiency with dedicated ports
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
High-performance Intel® I350 chipset
Useful for virtualization applications or setting up a dual-homed host configuration
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
- Jumbo Frame support up to 9k bytes
- Teaming Support
- Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
- Wake-on-LAN / Remote Wake-up support

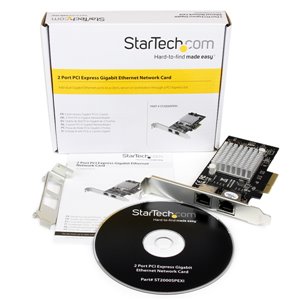

- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Intel® Virtualization Technology (VT-c, VMDq, SR-IOV)
- Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
- Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
| Category | Specification |
|---|
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| PCI Specification Revision | PCIe 2.1 |
| Networking |
| Ports | Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Status Indicators | Link/activity |
| Features | Full duplex capability, WOL, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, teaming support, LSO, TSO, tagged VLAN, checksum offload support |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 1588-2008 |
| Processor / Memory |
| Processor | Intel I350-AM2 |
| Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T – RJ-45 |
| Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
| Dimensions & Weight |
| Width | 2.6 in |
| Depth | 4.8 in |
| Height | 0.7 in |
| Weight | 3.17 oz |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 – 85% |
