Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 PortThis industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.For Demanding Environments Where No Fiber Connections Are RequiredUsing Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like: Cameras Sensors Wi-Fi Access PointsHigh total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.Truly Industrial for Devices That Must Function Under Harsh ConditionsIndustrial features include: Operating Temperature Range: -40 C to 75 C IP-30 rated housing Vibration, shock, and free-fall standard testingThis Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.The StarTech.com Advantage- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) – Use with devices like cameras & access points using Cat 5e/6- TECH SPECS: 8 port GbE PoE switch
ethernet

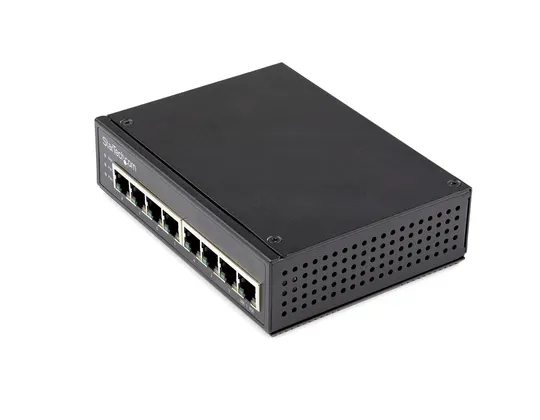

StarTech.com Industrial 8 Port Gigabit PoE Switch – 30W – Power Over Ethernet Switch – GbE PoE+ Unmanaged Switch – Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C
StarTech.com Industrial 8 Port Gigabit PoE Switch – 30W – Power Over Ethernet Switch – GbE PoE+ Unmanaged Switch – Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C (IESC1G80UP)
AED2,999.00
Switch type | Unmanaged |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 8 |
Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
10G support | No |
Cable types supported | Cat5e, Cat6 |
Full duplex | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Switching capacity | 16000 Gbit/s |
Jumbo frames support | Yes |
Jumbo frames | 9000 |
Product colour | Black |
Housing material | Aluminium |
LED indicators | Yes |
International Protection (IP) code | IP30 |
Wall mountable | Yes |
DIN rail mounting | Yes |
Certification | CE, FCC, UL, ROhS |
Buffer size | 128 KB |
Mean time between failures (MTBF) | 693764 h |
Harmonized System (HS) code | 85176990 |
DC input voltage | 48 – 56 V |
Power consumption (max) | 206 W |
Surge protection | Yes |
Surge protection voltage | 2 kV |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 200 W |
Width | 105 mm |
Depth | 142 mm |
Height | 39.6 mm |
Weight | 536 g |
Quick start guide | Yes |
Terminal block included | Yes |
Package width | 211 mm |
Package depth | 162 mm |
Package height | 64 mm |
Package weight | 781 g |
Master (outer) case width | 355 mm |
Master (outer) case length | 345 mm |
Master (outer) case height | 225 mm |
Products per master (outer) case | 10 pc(s) |
Terminal block port | Yes |
