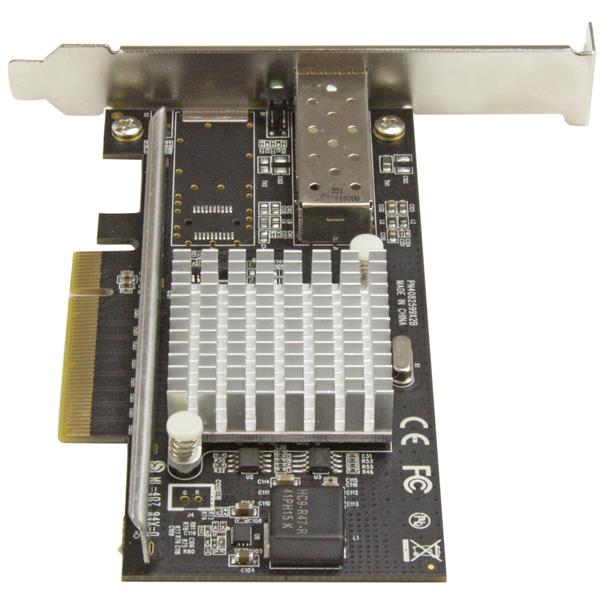

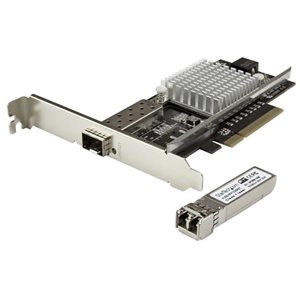

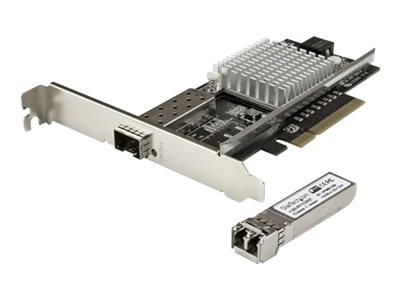

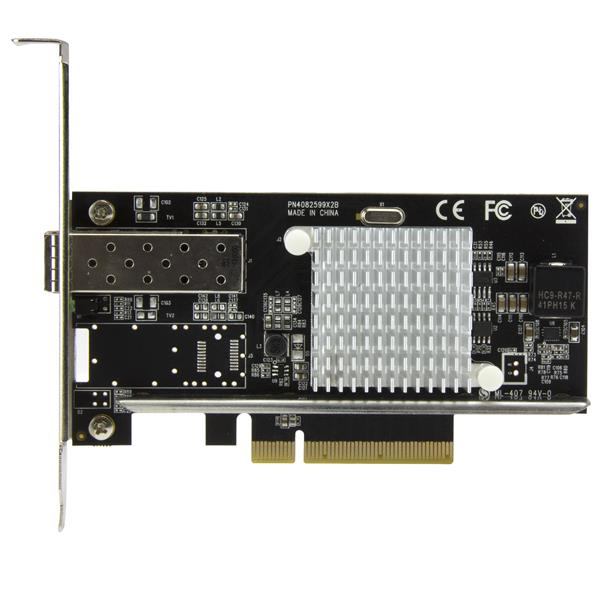

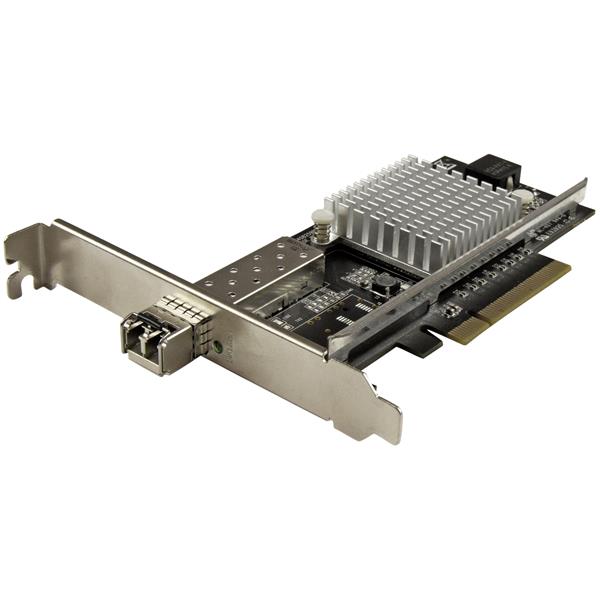

StarTech.com PCIe Fiber Optic NIC with SFP+ – MM 10G MM SFP with LAN Card

Add to Wishlist

StarTech.com 10G Network Card – 1x 10G Open SFP+ Multimode LC Fiber Connector – Intel 82599 Chip – Gigabit Ethernet Card (PEX10000SRI) – Network adapter – PCIe x8 – 10 GigE – 10GBase-SR – black – with 10GBase-SR SFP+ transceiver module – for P/N: BNDTB10GI – BNDTB210GSFP – BNDTB310GNDP – BNDTB410GSFP – BNDTB4M2E1 – BNDTBUSB3142

AED1,799.00

Add to Wishlist

Get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10GBase-SR port. This fiber optic network card delivers reliable, high-performance network connectivity, providing an easy and cost-effective way to upgrade your server or workstation to 10 Gigabit networking over multimode fiber. The 10G network card comes with an installed multimode SFP+ transceiver with up to 330 m range, to get you up and running quickly.

Increasing numbers of network users and data-intensive applications, such as multimedia streaming and large file transfers, all drive the need to increase the bandwidth capability of your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps and up to 20Gbps (full duplex) bandwidth.

For added convenience, this single-port 10G network card comes with an installed multimode SFP+ transceiver. Built to ensure reliable performance, the 10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. The 10GBase-SR SFP+ delivers 10 Gigabit connectivity over multimode fiber cable with a range of up to 330 m (1082 ft).

The 10 Gigabit network card features the Intel 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.

The 10G NIC connects easily through an available PCI Express expansion slot, and is compliant with PCIe Rev. 2 x8 (or higher). The network card comes with a standard profile, and also includes a low-profile bracket, for versatile installation.

Get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10GBase-SR port

  • Upgrade your server or workstation to 10G Ethernet for fast, high-bandwidth connectivity over multimode fiber
  • Single-port 10G network card with installed multimode SFP+ transceiver (up to 330 m range)
  • Intel 82599 chipset with Intel Virtualization Technology for Connectivity
  • Compliant with IEEE 802.3ae (10GBASE-SR)
  • Supports PXE network boot support, VLAN tagging, link aggregation
  • Up to 15K jumbo frame support
  • Up to 20Gbps (full duplex) bandwidth
Get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10GBase-SR port
slide 1 of 10, show larger image, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port



slide 1 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 2 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 3 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 4 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 5 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 6 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 7 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port
slide 8 of 10, zoom in, get high performance connectivity over multi-mode fiber, by upgrading your server or workstation with a 10gbase-sr port



Take advantage of faster network speeds

Take advantage of faster network speeds

Increasing numbers of network users and data-intensive applications, such as multimedia streaming and large file transfers, all drive the need to increase the bandwidth capability of your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps and up to 20Gbps (full duplex) bandwidth.

Includes an SFP+ transceiver, built for reliable performance

Includes an SFP+ transceiver, built for reliable performance

For added convenience, this single-port 10G network card comes with an installed multimode SFP+ transceiver. Built to ensure reliable performance, the 10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. The 10GBase-SR SFP+ delivers 10 Gigabit connectivity over multimode fiber cable with a range of up to 330 m (1082 ft).

Enhance your network capabilities and reliability

Enhance your network capabilities and reliability

The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.

The 10G NIC connects easily through an available PCI Express expansion slot, and is compliant with PCIe Rev. 2 x8 (or higher). The network card comes with a standard profile, and also includes a low-profile bracket, for versatile installation.

Applications

  • Connect servers and workstations at 10Gbps over multimode fiber
  • Supports secure setups – a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
  • Ensure reliable network performance with the pre-installed multimode SFP+ transceiver, with a range of up to 330 m (1082 ft.)
  • Create a video / audio editing console with 10Gbps access to network storage
SKU: PEX10000SRI 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card
Bundled with 10GBase-SR SFP+ transceiver module
Interface (Bus) Type PCI Express x8
Networking
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-SR
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 20 Gbps
Capacity Jumbo frame size: 15000
Status Indicators Link/activity
Features Flow control, full duplex capability,
Jumbo Frames support
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad
Processor / Memory
Processor Intel 82599
Expansion / Connectivity
Interfaces 1 – SFP+
Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards FCC, RoHS
Color Black
Software / System Requirements
OS Required Microsoft Windows Server 2008 R2 x64 Edition,
Microsoft Windows Server 2012 x64 Edition,
Microsoft Windows Server 2012 R2 x64 Edition,
Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits),
Microsoft Windows Server 2016 (64-bit),
Linux 2.6.24 – 4.11.x LTS versions,
Microsoft Windows Server 2019 (64-bit)
Dimensions & Weight
Width 0.7 in
Depth 5.3 in
Height 4.7 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 – 80%
Compatibility Information
Designed For P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP,
BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1,
BNDTBUSB3142, TB31PCIEX16
