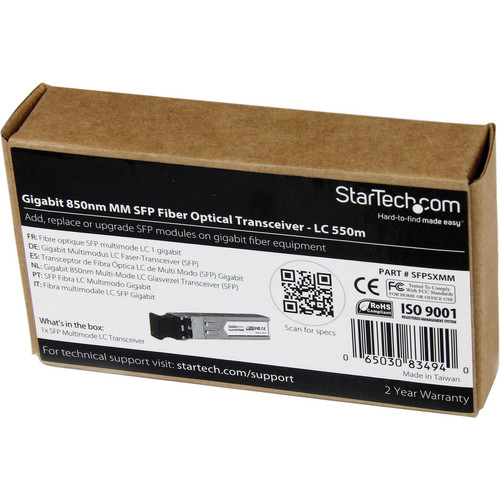

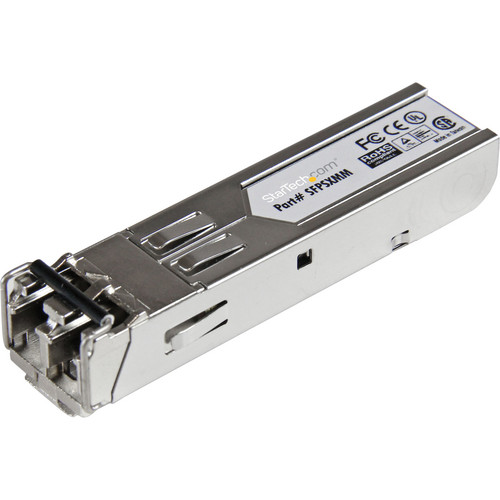

StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver – LC 550m


AED299.00

StarTech SFPSXMMĀ Overview

TheĀ Startech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver – LC 550mĀ allows you to add, replace, or upgrade SFP modules on gigabit fiber equipment. It is built to comply with MSA (Multi-Sourcing Agreement) standards and increase performance and connectivity of your fiber-connected network devices.

Using a short wavelength (850nm) VCSEL laser diode and enabling a maximum cable distance of 1804’ (550m) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA-compliant SFP port. It provides a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.

Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot. It is suitable for applications such as network extension and fiber backbones and replacing defective or damaged SFPs in MSA compliant equipment. It can be used in Multimode fiber installations and enables you to expand your network to remote segments over fiber.

1.25 Gb/s IEEE 802.3z 1000BASE-SX compliant
Complies with SFP Multi-Source Agreements standards (MSA)
Equipped with a 850nm VCSEL Laser with Class 1 laser safety standards IEC825 compliance
Duplex LC receptacle connector
Complies with 1.0625 Gb/s Fiber Channel FC-PI 100-M5-SN-I and FC-PI 100-M6-SN-I (sold separately)
Serial ID functionality support
Fully hot pluggable

StarTech SFPSXMMĀ Specs

Ethernet Standards
IEEE 802.3z
Ports
1 xĀ LC
Networking Technology
1000BASE-SX
Wavelength
850 nm
Maximum Networking Distance
1804′ / 550Ā m
Maximum Data Rate
1.25 Gb/s
Mode
Multi-Mode
Operating Mode
Full Duplex
Operating Temperature
32 to 158°F / 0 to 70°C
Operating Humidity
5 to 95%
Storage Temperature
-40 to 85°F / -40 to 29.4°C
Dimensions (L x W x H)
2.2 x 0.5 x 0.3″ / 55.9 x 12.7 x 7.6Ā mm
Weight
1.6Ā oz / 45.4Ā g
Packaging Info
Package Weight
0.1 lb
Box Dimensions (LxWxH)
4.6 x 2.8 x 1.1″
