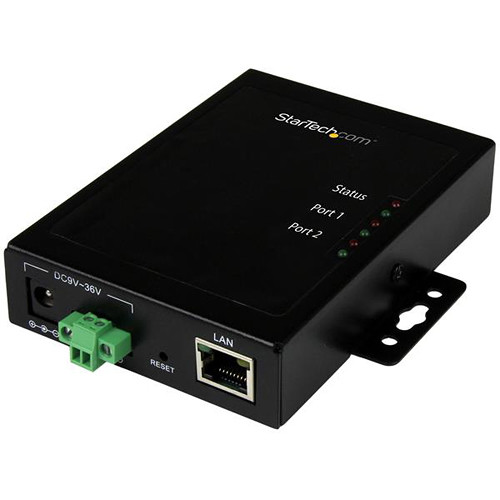

StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device Server


Key Features
  • 2 x RS232 (DB9) Serial Ports
  • Built-In Mounting Brackets
  • Redundant Power Input
  • Extended Operating Temperature Range
  • Up to 460.8 Kbps Serial Baud Rate
  • Remote Management Customization
  • 15 kV Air & 8 kV Contact ESD
  • 1 x RJ-45 Female Port
  • 1 x Terminal Block (2-Wire)

AED1,399.00

Connect two serial devices to your IP network with theĀ NETRS2322P 2-Port Serial-to-IP Ethernet Device ServerĀ fromĀ StarTech. This device server comes equipped with dual DB9 serial ports, a single RJ-45 female port, and a single terminal block.

StarTech NETRS2322P Overview

Connect two serial devices to your IP network with theĀ NETRS2322P 2-Port Serial-to-IP Ethernet Device ServerĀ fromĀ StarTech. This device server comes equipped with dual DB9 serial ports, a single RJ-45 female port, and a single terminal block. Installation is simple thanks to the built-in mounting brackets while the redundant power input ensures you can keep connected devices powered during power dips or power failures.

Flexible Installation in a Range of Environments
This serial-over-IP control solution features a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.

Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.

Backup Power Keeps Your Devices Connected
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36 VDC), and includes a universal power adapter.

Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.

Completely Customizable
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.

The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.

StarTech NETRS2322PĀ Specs

Hardware
Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Interface
Serial
Ports
2
Performance
Auto MDIX
Yes
Auto-Negotiation
Yes
Compatible Networks
10/100 Mb/s
Data Bits
7, 8
Flow Control
XON/XOFF, RTS/CTS, None
Full Duplex Support
Yes
Isolation
2500 Vrms
Max Baud Rate
460.8 Kbps
Parity
None, Even, Odd, Space, Mark
Remote Management Ability
Yes
Serial Protocol
RS-232
Supported Protocols
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet
Surge Protection
ESD (Electrostatic Discharge) Protection:
15kV Human Body Model (HBM)
15kV IEC1000-4-2 Air
8kV IEC1000-4-2 Contact
Connectors
Connector Type
2 x DB-9 (9 pin, D-Sub) male
1 x RJ-45 female
1 x Terminal Block (2 Wire)
OS Compatibility
Virtual COM Software – Windows Only
Windows Vista, 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2016

Note: The device server’s hardware is compatible with Mac OS and Linux; however, the provided Virtual COM software is not compatible with these operating systems. When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI.

LED Indicators
2 x Status
2 x Port 1
2 x Port 2
1 x 10/100 Mb/s LAN
1 x Link / Activity
Power
Center Tip Polarity
Positive
Input Current
1.5 A
Input Voltage
100 ~ 240 AC
Output Current
3 A
Output Voltage
12 DC
Power Consumption (In Watts)
36
Power Source
AC Adapter Included
Temperature & Humidity
Operating Temperature
32 to 185°F / 0 to 85°C
Storage Temperature
-49 to 266°F / -45 to 130°C
Humidity
20 to 80% RH (non-condensing)
Enclosure Type
Steel
Dimensions
0.9 x 4.4 x 3.2″ / 23 x 112 x 81 mm
Weight
11.3 oz / 320 g
Packaging Info
Package Weight
1.8 lb
Box Dimensions (LxWxH)
8.5 x 5.9 x 2.1″
