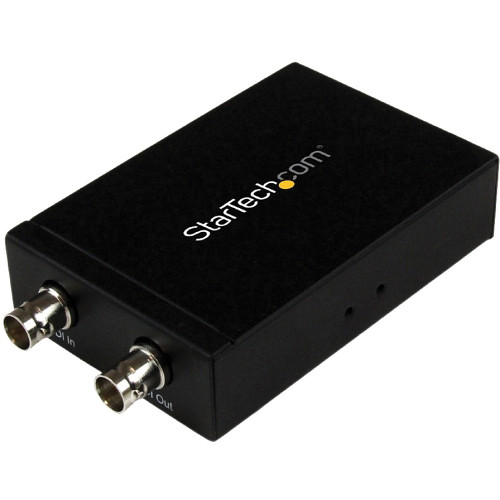

StarTech SDI2HD 3G-SDI to HDMI Converter with SDI Loopthrough

Add to Wishlist

1,099.00 د.إ

Add to Wishlist

The StarTech SDI2HD 3G-SDI to HDMI Converter enables you to turn a 3G-SDI video signal into an HDMI video output. The adapter features a built-in 3G-SDI daisy chain port, giving you the ability to further extend the SDI source up to 755′ (230m) over standard coaxial cable, for large scale HD-SDI video broadcasting distribution. To ensure you maintain perfect high-definition video quality, the SDI-HDMI converter features supports resolutions up to 1080p, allowing you to convert SDI to HDMI without sacrificing video quality. For hassle-free installation, the SDI to HDMI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation.

SKU: SDI2HD Category: Tag:
Connections
1 x SDI (BNC) Input
1 x SDI (BNC) Loopthrough Output
1 x HDMI Output
Audio
8 Channel Digital Audio @ 48 KHz
Transmission Distance
Maximum SDI cable length: 755′ / 230 m
Maximum Transfer Rate
2.97 Gbps
Maximum Resolution
1080p
Supported Resolutions & Formats
1920×1080 (1080p) @ 24, 25, 30, 50, & 60 FPS
1920×1080 (1080i) @ 50 & 60 FPS
1280×720 (720p) @ 24, 25, 30, 50, & 60 FPS
525i, 625i SD, D1 Format: RGB or YCbCr 4:4:4 sampled
Supports 8-bit or 10-bit component digital video: YCbCr 4:2:2 sampled
Widescreen Supported
Yes
Humidity
5 to 90% RH (no condensation)
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
14 to 140°F / -10 to 60°C
Power Supply
Center Tip Polarity: Positive
Input Current: 0.5 A
Input Voltage: 100 to 240 VAC
Output Current: 2 A Output Voltage: 5 VDC
Plug Type: Male
Dimensions
1 x 3.9 x 2.8″ / 25 x 100 x 70 mm
Weight
7.1 oz / 202 g
Packaging Info
Package Weight
1 lb
Box Dimensions (LxWxH)
8.425 x 5.906 x 2.047″
