StarTech ST121UTP VGA Video Extender Over Cat5 (Black)

Add to Wishlist

699.90 د.إ

Add to Wishlist

StarTech ST121 Overview

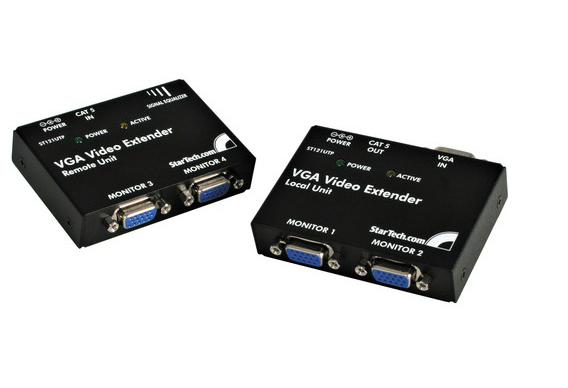

The black ST121UTP VGA Video Extender over Cat5 from StarTech allows you to extend your VGA video signal by up to 500’ (150m) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP from the ST121 Series is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

The local unit features a single VGA input as well as 2 VGA outputs giving you the ability to view and split your source VGA signal to 2 independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features 2 additional VGA outputs giving you the freedom to display your VGA source on up to 4 monitors in total.

The included mounting bracket provides versatile mounting options such as a wall, desk, or cabinet.

Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
Extends video cables by up to 500′ (150m)
Uses standard Category 5 straight-wired, twisted-pair, network patch cable for reliable data transmission
VGA extension through non-proprietary network cabling
Included mounting brackets for a tidy and professional installation
Free lifetime technical support
Applications
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Suitable for digital signage applications in financial, educational, and business sectors
Extend your display across harsh environment industrial sites
Suitable for video conferencing solutions in boardrooms and office settings
Optimize placement of your demo stations at tradeshows and in auditoriums
Category: Tag:

StarTech ST121 Specs

Hardware
Port 1
Cabling Type Cat 5e UTP or better
Connectors
Connector 1 Local Unit Connectors:

1 x RJ-45 Female

1 x VGA (15 pin; high density D-Sub) Male

2 x VGA (15 pin; high density D-Sub) Female
Connector 2 Remote Unit Connectors:

1 x RJ-45 Female

2 x VGA (15 pin; high density D-Sub) Female
Performance
Maximum Distance 500′ (150 m)
Supported Resolutions 1440 x 900 @ 150.00’ (45.72 m)

1280 x 1024 @ 300.00’ (91.44 m)

1024 x 768 @ 500’ (152.40 m)
Power
Output Voltage 9 VDC
Output Current 0.6 A
Center Tip Polarity Positive
Physical Characteristics
Enclosure Type Aluminum
Dimensions 2.40 x 3.30 x 0.80″ (6.10 x 8.38 x 2.03 cm)
Weight 6.40 oz (181.44 g)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 9.6 x 7.4 x 3.7″
