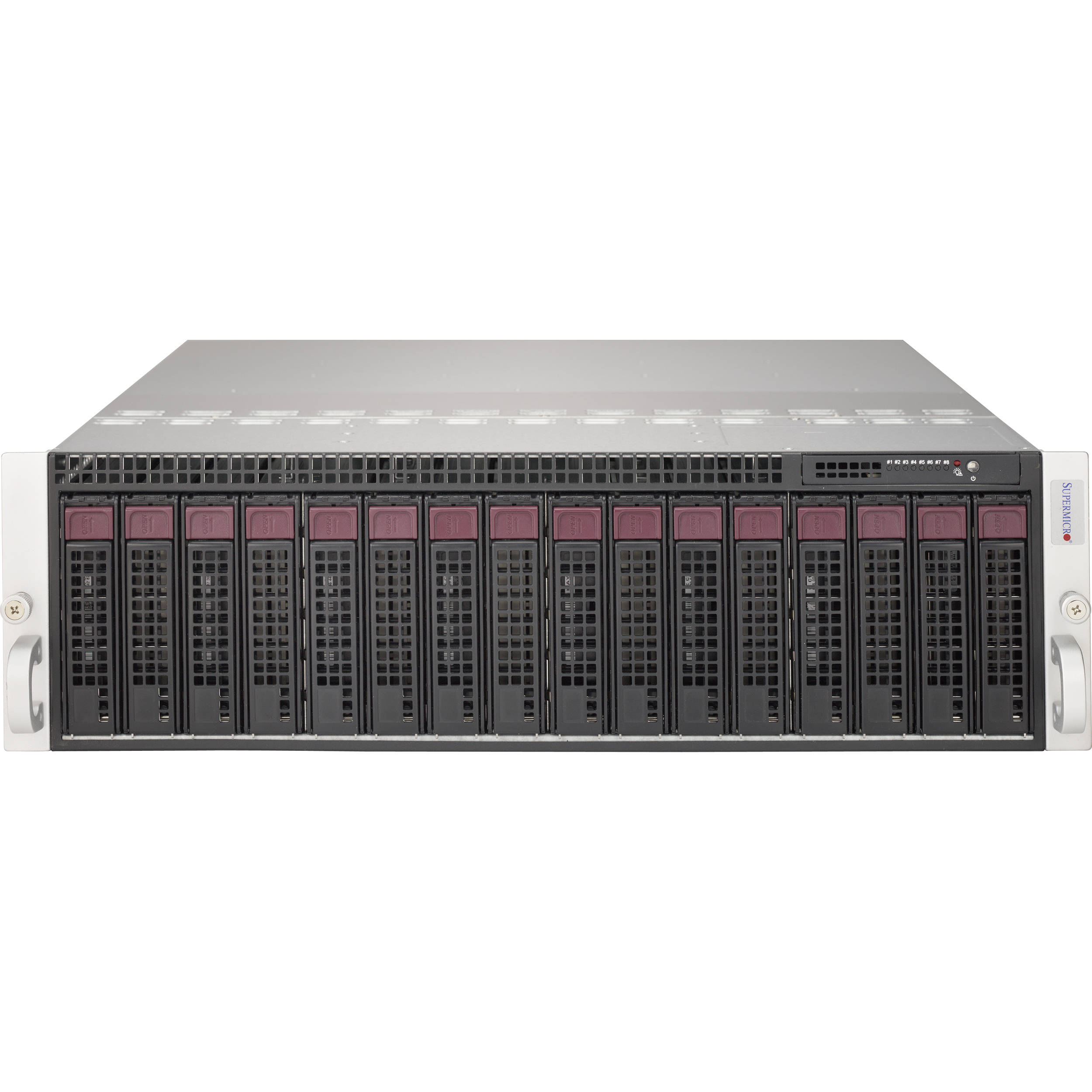

Supermicro 5038MR-H8TRF 16-Bay MicroCloud SuperServer

Add to Wishlist

With 16 hot-swappable drive bays (2 per node), the 5038MR-H8TRF 16-Bay MicroCloud SuperServer from Supermicro is designed to handle a wide variety of business storage needs. Each drive bay features dual RJ-45 GbE LAN ports along with a dedicated IPMI LAN port and KVM port.

AED29,995.00

Add to Wishlist

Supermicro SuperServer External HDD/SSD Overview

With 16 hot-swappable drive bays (2 per node), the 5038MR-H8TRF 16-Bay MicroCloud SuperServer from Supermicro is designed to handle a wide variety of business storage needs. Each drive bay features dual RJ-45 GbE LAN ports along with a dedicated IPMI LAN port and KVM port.

Inside the 16-Bay SuperServer you will find an Intel Xeon E5-2600 processor supporting up to 22 cores and 55MB of cache memory. In addition to enhanced processing power, this server comes equipped with four 288-pin DDR4 DIMM slots and an Intel C612 Chipset. You will find two Intel i350 Gigabit LAN ports per node along with two SATA 3.0 ports, a single VGA, COM, and two USB 2.0 ports assigned to each node. The server chassis occupies 3 RU of rackmount space making it an ideal server solution for large rackmount configurations.

Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4 / v3 & E5-1600 v4 / v3 family
2 x 3.5″ Hot-swap SATA3/SAS drive bays by default; or 2 x 2.5″ SATA3 HDD Bays w/ optional kits (SAS requires RAID/HBA AOC)
1 x PCI-E 3.0 x8 and 1x Micro-LP
Up to 512GB ECC 3DS LRDIMM, up to DDR4- 2400 MHz; 4 x DIMM slots
2 x GbE LAN ports via Intel i350
1 x Dedicated LAN for IPMI Remote Management
4 x 8cm heavy duty hot-swap fans with optimal cooling zone (per system)
1620W Redundant power supplies Platinum Level Certified (per system)
SKU: 5038MR-H8TRF 16-Bay Category: Tag:

Supermicro SuperServer External HDD/SSD Specs

Motherboard MBD-X10SRD-F
Processor CPU
Intel Xeon processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145 W TDP)
Single Socket R3 (LGA 2011)
Core / Cache
Up to 22 Cores / Up to 55 MB cache

Note: BIOS version 2.0 or above is required
Note: Ambient temperature should be no higher than 77°F / 25°C
System Memory Memory Capacity
• 4 x 288-pin DDR4 DIMM slots
• Up to 512 GB ECC 3DS LRDIMM
• Up to 256 GB ECC LRDIMM
• Up to 128 GB ECC RDIMM
Memory Type
2400/2133/1866/1600 MHz ECC DDR4
SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
• 3DS LRDIMM: 128 GB
• LRDIMM: 64 GB, 32 GB
• RDIMM: 32 GB, 16 GB, 8 GB, 4 GB
Memory Voltage
• 1.2 V
Error Detection
• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
Devices On-Board Devices (per node)
Chipset
• Intel C612 chipset
SATA
• 1x SATA DOM• SATA 3.0 (6Gbps) with RAID 0, 1IPMI
• Support for Intelligent Platform Management Interface v.2.0• IPMI 2.0 with virtual media over LAN and KVM over LAN support• Aspeed AST2400 BMC
Headers
• 1x USB Type A 3.0, TPM ready
Graphics
• Aspeed AST2400 BMC

Network Devices (per node)
MicroLP NIC
• Intel i350, 2x Gigabit LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel I/OAT 3 support for fast, scalable, and reliable networking
• VMDq support for better performance of virtualization
Input/Output Serial ATA
2 x SATA 3.0 ports (6 Gbps)
LAN
2 x RJ-45 Gigabit Ethernet LAN ports
1 x RJ-45 Dedicated IPMI LAN port
KVM
1 x VGA, 1 x COM, and 2 x USB 2.0 (with KVM dongle) ports
System BIOS BIOS Type
• 128 Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
• Plug and Play (PnP)
• APM 1.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup
Rear Controls Switch
• Power / UID
Chassis Form Factor
• 3 RU
Model
• CSE-938BH-R1620B
Front Panel Buttons
• Power On/Off button
LEDs
• Power LEDNode status LED
Expansion Slots PCI-Express
• 1 (x8) PCI-E 3.0 Low-profile slot
• 1x Micro-LP for Dual GbE (pre-installed), 10GbE or IB AOC option
Drive Bays Hot-swap
• 2x 3.5″ hot-swap SATA3 (6Gbps) HDDs per node
(or 2x 2.5″ SATA3 with optional kits); up to 16 HDDs total
• Enterprise SATA HDD only recommended
System Cooling Fans
4 x 8 cm 11K RPM, 4-pin PWM cooling fans
Power Supply 1620W high-efficiency redundant power supply w/ PMBus
AC Input
• 1000 W Output @ 100-120 V, 12-10 A, 50-60 Hz
• 1200 W Output @ 120-140 V, 12-10 A, 50-60 Hzv• 1620 W Output @ 180-240 V, 10.5-8 A, 50-60 Hz
DC Output
• 1000 W: +12 V/84 A; +5 Vsb/4 A
• 1200 W: +12 V/100 A; +5 Vsb/4 A
• 1620 W: +12 V/150 A; +5 Vsb/4 A
Certification
• Platinum certified
Product Health Monitoring CPU
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
• Cooling zone
Temperature
• Monitoring for CPU and chassis environment
Temperature & Humidity Operating Temperature
50 to 95°F / 10 to 35°C
Non-Operating Temperature
-40 to 158°F / -40 to 70°C
Operating Relative Humidity
8 to 90% non-condensing
Non-Operating Relative Humidity
5 to 95% non-condensing
RoHS RoHS compliant
Dimensions 5.2 x 17.3 x 23.2″ / 132.5 x 438.4 x 589.0 mm
Weight 62.2 lb / 28.2 kg
